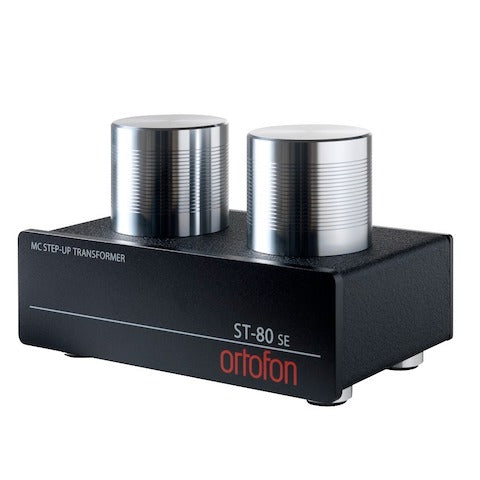

The ST-80 delivers a detailed reproduction with a touch of warmth accompanied by a full bodied sound quality. The transformer is magnetically shielded in a permalloy case, which in turn is inserted into a robust 10mm thick aluminum cylinder bored out of a solid aluminum block. Together with the heavy metal case the transformer effectively isolates against environmental noise.

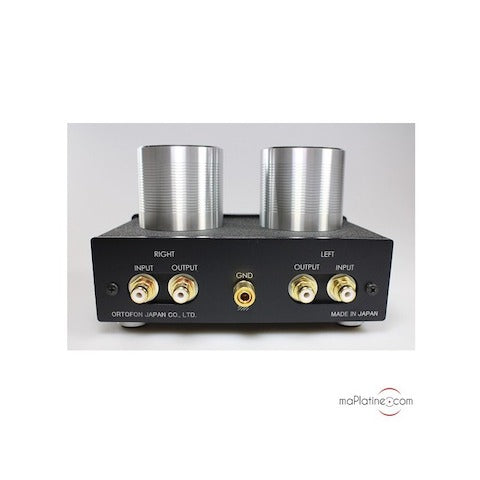

The ST-80 SE is built as a pure dual mono model, which ensures maximum channel separation. Internal point-to-point wiring is made by Teflon insulated, solid-core pure OFC copper-wire plated with gold. Together with high quality gold plated RCA jacks with Teflon insulation that ensures the optimum signal transmission and integrity.
ST-80 SE Technical Data:
- Recommended cartridge impedance < 10 Ω
- Gain 27 dB at 1 kHz
- Frequency response 10 Hz - 100 kHz (-2,5 dB +0,5 dB)
- Trafo output loading 47 kΩ // 200 pF
- Dimensions 95 mm(W) x 153 mm(H) x 100 mm(D)
- Weight 1.5 kg
