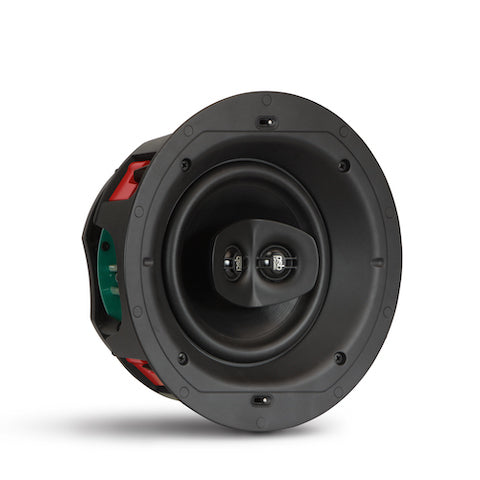

The PSB CS630 is a versatile speaker and allows stereo sound in small spaces like bathrooms and hallways. It can also be used as surround effects speakers in home theatres. The tweeter array can be rotated after installation to get the best high frequency coverage, and like the CS650 there is a tweeter and woofer level control for final adjustment. Because there are two discrete channels, these can be wired as bipole, dipole, or even as surround plus surround rears in a 7.1 theatre.
NOTE: PRICE IS PER PAIR
Technical Specifications:
Frequency Response
| On Axis @ 0° ±3dB |
50-20,000Hz |
Sensitivity
| Anechoic Chamber |
85dB |
| Listening Room |
87dB |
Impedance
| Nominal |
10 Ohms |
| Minimum |
8 Ohms |
Input Power
| Recommended |
10 - 100 Watts |
Acoustic Design
| Tweeter (Nominal) |
2 x 3/4” (19mm) Aluminium Dome
Black anodized |
| Woofer (Nominal) |
6 1/2” (165mm) Fiber filled Injection Moulded Polypropylene Cone
Rubber Surround
Dual Voice Coil |
| Crossover |
2100Hz, LR4 |
| Design Type |
Open Back |
Dimensions / Weights / Finish
| Size (W x H x D) |
Cutout Diameter - 8 3/8” * (212mm)
Mounting Depth - 4 1/2" * (114mm)
Round Grille Diameter - 9 7/16" * (240mm)
Square Grille Size - 9 1/2" * (241mm) |
| Weight |
4.8lb (2.2kg)/each |
