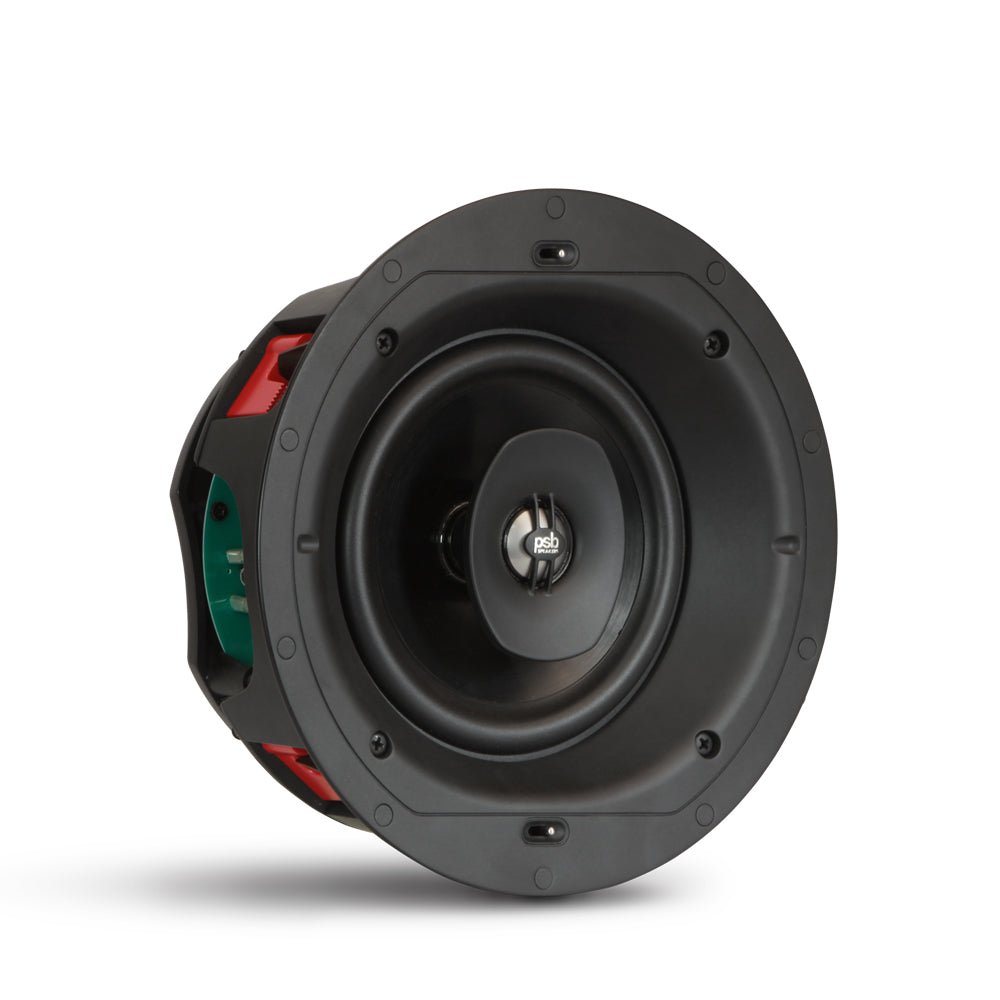

The premium woofer of the PSB CS650 pays huge dividends in bass output and extension which is ideal for primary listening areas or very large rooms. This woofer includes a few of the tricks PSB has developed for its top-of-the-line Imagine T3 speaker to get higher sensitivity and lower harmonic distortion at high playback levels. It retains all of the other features and advantages of its more affordable little brother, with an upgraded 1″ (25mm) titanium tweeter with Wave Guide and indexed adjustment for precise adjustment of the tweeters acoustic axis.
NOTE: PRICE IS PER PAIR
Technical Specifications:
Frequency Response
| On Axis @ 0° ±3dB |
48-20,000Hz |
Sensitivity
| Anechoic Chamber |
86dB |
| Listening Room |
88dB |
Impedance
| Nominal |
6 Ohms |
| Minimum |
4 Ohms |
Input Power
| Recommended |
10 - 100 Watts |
Acoustic Design
| Tweeter (Nominal) |
1” (25mm) Titanium Dome with Ferrofluid |
| Woofer (Nominal) |
6 1/2” (165mm) Fiber filled Injection Moulded Polypropylene Cone
Rubber Surround |
| Crossover |
1800Hz, LR4 |
| Design Type |
Open Back |
Dimensions / Weights / Finish
| Size (W x H x D) |
Cutout Diameter - 8 3/8” * (212mm)
Mounting Depth - 4 1/2" * (114mm)

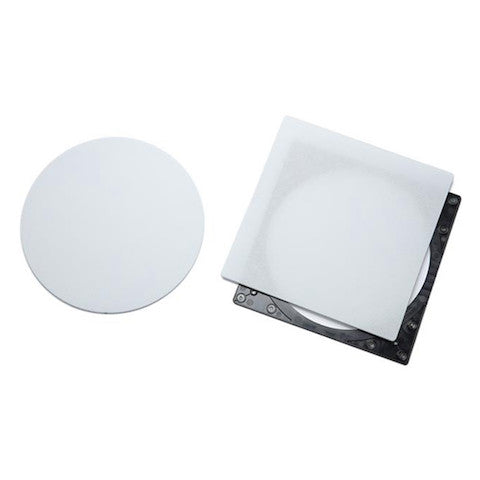

Round Grille Diameter - 9 7/16" * (240mm)
Square Grille Size - 9 1/2" * (241mm) |
| Weight |
4.6lb (2.1kg)/each |
