The new JBL L75ms Music System is made for the enthusiast who loves music and seeks an easy way to listen to their music collection without sacrificing acoustic performance.

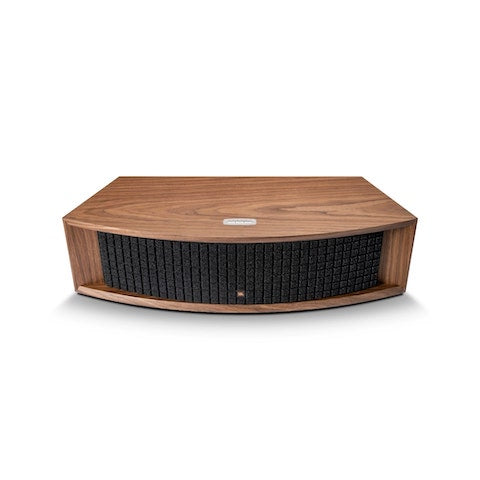

As a modern re-imagining of the all-in-one Hi-Fi system, the L75ms finds its design inspiration from the JBL Classic Series with which it shares its walnut wood veneer cabinet finish and black Quadrex foam grille.
Behind that retro appearance lies thoroughly modern acoustic technology including high-res audio capability and a wealth of wired and wireless connectivity.
Streaming audio provides easy and convenient access to an entire world of music. The integrated streaming engine provides both wired and wireless network audio capabilities via Ethernet, Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth audio. A 32-bit/192kHz high-resolution DAC ensures your favourite music comes across with the highest fidelity.

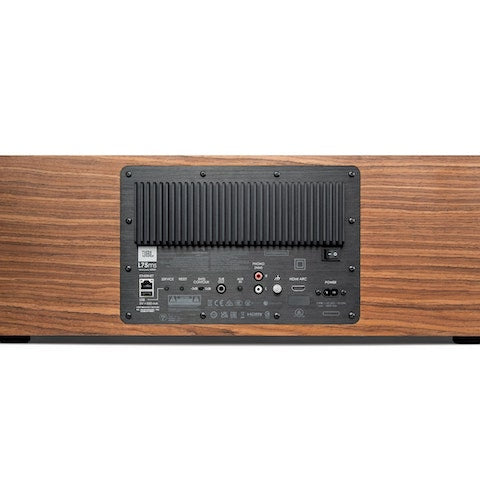

In addition to premium wireless audio, the L75ms provides a number of connections for physical sources including a 3.5mm analog input. For vinyl lovers, there is a moving magnet (MM) phono stage for connecting a turntable, and an HDMI ARC input for great movie and gaming sound when connected to your television.
For even more acoustic impact, there is a dedicated signal sensing subwoofer output for connecting to an external powered subwoofer. Everything is provided to create a truly great sound system without taking up a lot of space.

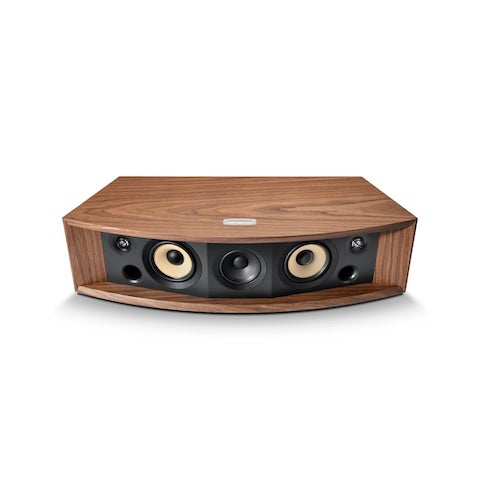

Behind the Quadrex foam grille and curved front panel shape, the L75ms contains a pair of 1-inch titanium dome tweeters with waveguides, a pair of 5.25-inch white cone woofers with dual front-firing ports, and a 4-inch central midrange driver — all arranged on a multi-angled baffle that brings to mind the “built-in acoustics” curved shapes of famous JBL heritage models.
Each of the five drivers has a dedicated channel of amplification and DSP tuning to deliver a remarkably wide soundstage across a large listening area.
System operation of the L75ms is via the aluminum control panel on the top of the walnut enclosure, the included wireless remote control, or wireless connectivity to a Google Chromecast, Apple AirPlay 2, or Bluetooth enabled device.
Specifications:
Streaming wireless tabletop integrated loudspeaker system
Low Frequency Drivers
Dual 5.25" (130mm) Pure Pulp cone woofers
High Frequency Drivers
Dual 1” (25mm) Aluminum dome tweeters with waveguides
Midrange Driver
4” (100mm) Pure pulp cone midrange
Amplifier Power
125W RMS per woofer, 25W RMS per tweeter, 50W RMS for center (350W RMS total)
Sound Controls
Speaker placement compensation, selectable sound-field expander
Wireless Inputs
WiFi streaming, Bluetooth 4.2
Wired Inputs
HDMI ARC, ethernet, phono (MM), 3.5mm AUX
Resolution
Up to 32-bit, 192 kHz
Frequency Response
45 Hz - 25 kHz (-6 dB)
Maximum SPL
106 dB @ 1m
Subwoofer Output
2V RMS with auto-sense/engage HPF
Enclosure
Front-ported tabletop in satin walnut furniture-grade wood veneer
Grille
Black foam Quadrex grille
Dimensions with grille
8.5” H x 31.1” W x 11.3” D (216mm x 790mm x 287mm)
Remote Control Type
BTLE
Product Weight (Each)
35 lbs. (15.9 kg)
Shipping Weight
44 lbs. (20.0 kg)
Warranty
5 Years
