Phono Stage
Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.

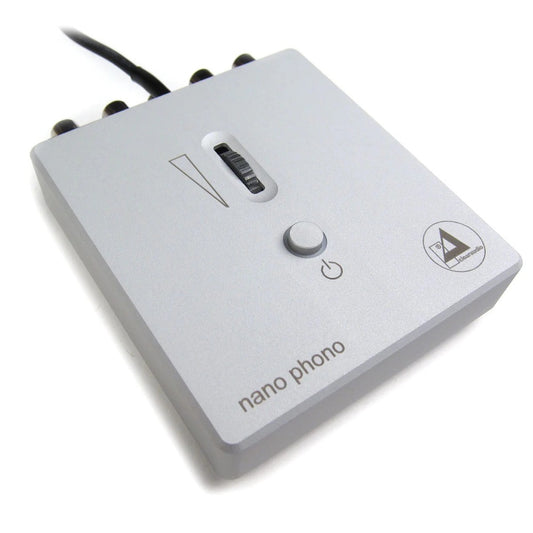

The nano phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
Available in Black or Silver finish.
A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point. For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.
The smart phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
Available in Black or Silver finish.
A lot of people already have or plan to buy a very high quality turntable, driven by the fascination of the analogue sound. Many of them also want to record their vinyl in a simple, yet high-end way. The Phono Box DS2 USB is the perfect solution. It is a sophisticat-ed phono stage, based on a high-end passive/active ultra linear phono equalisation. MM and MC capability as well as extensive vari-able impedance and capacitance settings allow to match any cartridge, even of highest class for optimum performance. Two individu-al phono inputs allow you to use two different turntables or tonearm / cartridge combinations with different sound characteristics to perfectly match your preferred type of music.
A very low noise and jitter free A/D converter transfers the analogue signal into high resolution digital format (PCM up to 192kHz or DSD 128). Via its USB output you can record your vinyl on any computer. There is also an analogue line input to digitalize other ana-logue audio sources. A standard line output to connect the unit to your hifi system isn’t missed. The Phono Box DS2 USB is manufac-tured in a beautiful chassis made out of aluminium and metal, which gives an elegant functional look and avoids the influence of me-chanical or electromagnetical interference.
• Suitable for MM and MC cartridges
• Analogue RCA, USB and optical out on back
• 3 Inputs (2 Phono, 1 Line)
• Precise RIAA equalisation
• Dual mono circuitry for optimized channel separation
• Selectable input impedance on front
• Selectable input capacitance on front
• Digital output sampling frequency adjustable
• Low noise circuitry
• Gold-plated RCA in & outputs
• Sandwich alu/metal casing protects from vibrations and electromagnetic interference
• Colour options: silver with walnut side panels
This is the latest Phono Stage from Dynavector giving many improvemens over the already excellent P75 MKIII, The P75 mk4 has a new appearance and new generation electronic design offering even higher levels of performance.
It is a fully adjustable phono preamp suitable for use with almost any cartridge.
It features ultra low noise components and extreme RIAA accuracy allowing the P75 to provide a high quality signal for amplification.
What's New:
- New larger size
- Completely new appearance
- All new glass front panel system
- Custom made black stainless fasteners
- Custom made DV Gold ground terminal
- Totally new ultralow noise internal power supplies, noise virtually unmeasurable. Zero hum
- Electrically isolated from AC power adaptor
- Now has on/off switch on back panel for extra convenience
- Power efficiency doubled
- Improved Phono amplifier stage design
- Even lower noise
- "Bleeding edge" ultra precision custom components providing extreme RIAA accuracy, unmatched in any production amplifier
- New high current output line driver for long interconnects
- Outstanding noise rejection including immunity from radio station interference • Simplified adjustment, simplified jumper layout
- More loading options available
- MM capacitance loading now adjustable
- Matches virtually any cartridge on the market regardless of type
- Fully user adjustable
- Improved format owner's manual and improved packaging
Type: Two-piece, MM/MC phono stage with current drive option
Phono inputs: RCA sockets
Analogue outputs: RCA sockets
Input sensitivity: 0.2mV – 2.0mV
Input impedance: 130, 60, 100, 220, 470, 47k Ohms
Input capacitance: 100, 200, 300 pF
Output impedance: not specified
Gain: 40, 46, 56, 60, 63dB
Output level: not specified
Dimensions (HxWxD): 46 x 160 x 118mm
Weight w/out PSU: 500g
Features:
MM & MC capable
True dual mono design
Balanced XLR & unbalanced RCA In & Outputs
Fully passive RIAA & DECCA equalisation
Unique continously variable input impedance loading, matches every cartridge (adjustment even while playing)
Superior low noise / low distortion
Classy & elegant dip switches
Metal casing protects against vibration and interference
Battery Power Supply Available
This precision tube phono preamplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. Compatible with both MM and MC cartridges. It offers connection for two turntables plus two selectable line outputs and a continuously variable selection of input impedance for low output MC cartridges while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile-grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers!
• Suitable for MM and MC cartridges
• Precise RIAA equalisation
• Ultra low noise circuitry
• Selection between 2 phono inputs & 2 line outputs
• Dual mono circuitry for optimized channel separation
• Selectable input impedance (for MC: fix or variable)
• Selectable input capacitance (for MM)
• Selectable subsonic filter
• Gold-plated RCA in & outputs
• Sandwich alu/metal casing protects from vibrations and electromagnetic interference
• Finishes: silver with walnut side panels

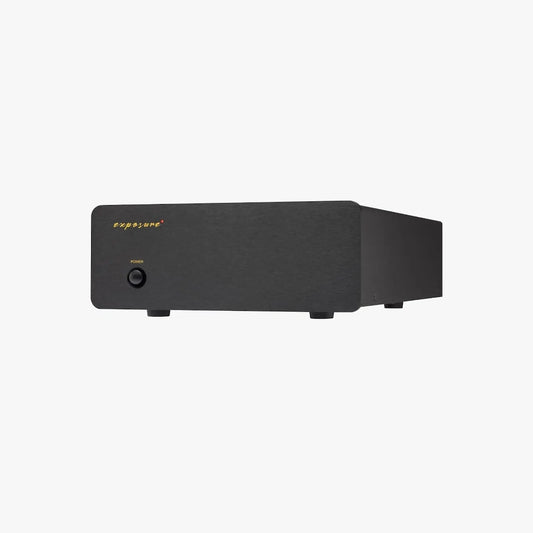

XM3 Phono Amplifier
Features- Large 200VA custom made toroidal transformer for power supply
- Multiple power supply capacitors in parallel for low ESR
- All discrete transistor audio stages
- High quality resistors & capacitors used in the signal path
- Separate MM & MC inputs selectable on the back panel
- Adjustable loading & gain switches on the back panel
- High quality all aluminium case work and extruded front panel
- Three year guarantee
- Available in black or titanium
Specifications
-
Moving Magnet Input
- Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
- Signal to Noise ratio, ref 1KHz & 350mV out :
- Gain Switch 4 ON : >70dB
- Gain Switch 4 OFF : >78dB
Moving Coil Input
- Sensitivity : 350uV input for 350mV output, 60dB gain setting
- Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)
General Specifications
- Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
- Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input :
- Maximum Ouput Voltage : 7.8V RMS 1KHz
- Output Impedance : 50 ohms
- Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
- Power Consumption : <25W
- Dimensions (WxHxD) : 218mm x 89mm x 348mm
- Net Weight (unpacked) : 4kg
- Gross Weight (packed) : 5kg

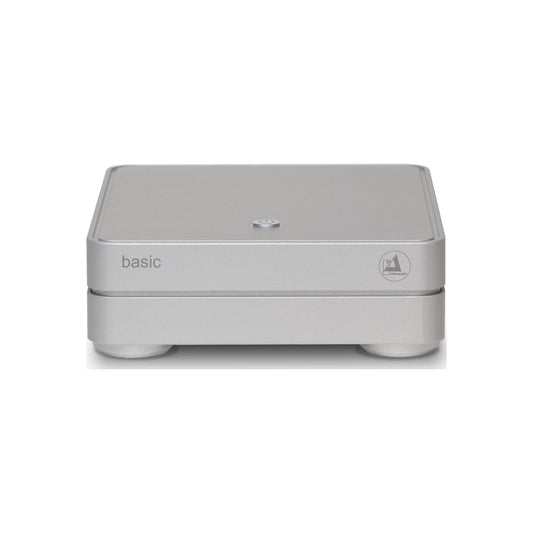

Behind the multiple award-winning basic +, which outclasses many much more expensive competitors, there are over 30 years of research and experience, along with in-depth knowledge of the effectiveness of unconventional details.
While phono preamps with valves are becoming increasingly common, not all of them offer stunning performance within their respective price classes. The Unison Research Simply Phono is simply that—an outstanding tubed phono stage that offers incredible performance for the price. The Simply Phono is also the most logical choice to match with Unison Research amplifiers, although it works perfectly in any quality hi-fi system.
- Type : Stereo Phono Valve preamplifier
- Classe: pure A class
- RIAA : passiva +/- 0.2 dB ( 20 Hz / 20 KHz )
- Output Impedance: 800 ohm.
- Uscita: 1 x line
- Gain : 52 dB
- Total Harmonic Distortion (THD): 0.4 % at 1 volt output
- Signal to Noise Ratio (S/N): – 72 dB
- Inputs: 1 x fonorivelatore MM o MC
- Input Impedance: 47 Kohm – 100 – 50 – 22 ohm / 100 pF (modifiable)
- Feedback factor: 0 dB
- Valves: 4 x ECC83 / 12AX7
- Power Supply: externel
- Dimension: 140 x 290 x h 105 ( mm )
- Net Weight: 3 Kg (including power supply)
On the outside, Exposure products are simple, clean and elegant. Robustly built, they offer friendly features and clear controls. Exposure believes that the best place for all the complex engineering is on the inside, where decades of research and development go into producing that renowned musical performance. Hand Built in England.
Features of the 3010S2 Phono Amplifier
Large custom made toroidal transformer and smoothing capacitors for power supply
Option to fit a MC or MM phono module
All discrete transistor audio stages
Multiple stages of power supply regulation
High quality all aluminium case work
Three year guarantee
Available in black or titanium
Specifications
Input Impedance : MC adjustable from 100 Ohms to 1,500 Ohms by jumper link. MM 47K Ohms
Sensitivity : MC 250uV in for 250mV out at 1KHz (adjustable by jumper link). MM 2.5mV in for 250mV out at 1KHz
Frequency Response : +/-0.25dB from 30Hz to 20KHz, ref. 1KHz, with low frequency roll off below 30Hz
Total Harmonic Distortion : <0.01% at 1KHz
Power Consumption : <25VA
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
Dimensions - H x W x D : 90mm x 440mm x 300mm
Nett Weight (unpacked) : 7kg
Gross Weight (packed) : 9kg
THE FIRST PHONO STAGE WITH 2 INPUTS AND 6 EQ CURVES
PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with high quality coils, capacitors and resistors.
PH-10 is controlled via knob and display using a sophisticated micro-controller to select the functions through our custom firmware that is loaded on a micro SD dedicated flash memory and can be updated easily via PC. The micro-controller is separated and independent from the audio signal path to guarantee always clear and pure sound.
Once the tonearms are connected, PH-10 can be set with 4 different GAIN levels [-3dB, 0dB, +3dB, 6dB] to match precisely the output level of any MM or MC cartridge.
The perfect setup is guaranteed with 9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] that will let you adjust the preamp to match it with a large number of cartridges in a quick, easy way.
6 EQ CURVES TO DELIVER OUTSTANDING PERFORMANCES
You will finally be able to switch from the internationally recognized RIAA curve, to the DECCA-LONDON or the AMERICAN-CBS-COLUMBIA curve, always graphically shown on the front display. And there's more, because you will also be able to “enhance” each curve with a modern Gold Note proprietary design for superior dynamic and powerful results.
AUDIOPHILE IN EVERY POSSIBLE WAY
PH-10 shows every detail on its 2,8” colour display powered by Gold Note proprietary SKC - Single Knob Control technology – an intuitive control system developed to easily browse and select all the unit's functions.
The unit can be externally powered by a dedicated inductive Dual-Mono PSU to enhance even more the performance.
2 SEPARATE INPUTS
With two separate RCA inputs you can connect two different tonearms and adjust settings independently for each single cartridge
4 GAIN OPTIONS
PH-10 offers 4 different selectable GAIN levels -3dB, 0dB, +3dB, +6dB to precisely match any kind of output level for MM and MC cartridges
9 LOAD OPTIONS
Perfect matching is easy and quick to achieve with 9 different load options 10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ
ELEGANT & FUNCTIONAL
Made of solid machined aluminium, the shell body guarantees low frequency resonance, feedback vibrational control and low magnetic inertial field
DISPLAY & KNOB
SKC is a unique technology that combined with a TFT display allows quick control of the functions through the single knob joggle
MODULAR DESIGN
Gold Note modular design allows upgrades with external units, including the External Inductive Power Supply
The External Power Supply is due March 2018Pre-Order Available Now.
Audio Outputs
Line output level (fixed): stereo RCA @ 2Volt and balanced XLR @ 4Volt
Audio Inputs
Analogue inputs: 2 separate independent stereo RCA
Input sensitivity: 0.1mV MC up to 7.0mV MM
Input impedance: 9 selectable options [10Ω 22Ω 47Ω 100Ω 220Ω 470Ω 1000Ω 22KΩ 47KΩ ]
Gain: 65dB MC - 45dB MM with 4 options [-3dB 0dB +3dB +6dB]
Subsonic filter: 10Hz/36dB octave
Frequency response: 20Hz – 20KHz
[Enhanced 20Hz – 50KHz] @ +/- 0.3dB
THD (Total Harmonic Distortion): <0.05% MAX
Signal to noise ratio: -89dB
Dynamic response: 105dB
Output impedance: 50Ω
Weight: 4Kg
Dimensions: 220mm W | 80mm H | 260mm D
Power
Main supply: 100V to 245V ▪ 50/60Hz
(depending on market destination, not convertible)
Power consumption: 30W super linear power supply
Developed by Pathos engineers, In The Groove is a very successful phono pre-amplifier, already well known on the market and that has been entirely redesigned now.
It features high quality integrated circuits, fitting with flexibility to any kind of phono detector.
It is an analog solid state product, featuring passive RIAA preamplification made up by two chassis, equipped with multi-tension linear power supply and three settings: impedance and capacity can be set by the front panel, while sensitivity by the rear panel.These settings allow finding out the perfect match to get best performance and make the most of your audio system. A final tune of the sound can be gained from analog source, according to your own musical taste and by changing impedance load value.
It’s about small changes that may meet the taste of the listener or not, but specifically for this reason they reveal all their strong flexibility and adjustment of such electronics.
Aluminum has been used both for panting and for frame, on the upper part can be found our carved logo. It is compact and elegant; this product is an important accessory to your audio system to enjoy at best vinyl quality.
In The Groove is available in two finishes and, if combined with Converto EVO and AmpliD, will set up a perfect audio system both for digital and phono source.
This product is entirely handmade in Italy.
SPECIFICATIONS:
| Frequency response | RIAA ± 0,2dB |
| THD | 0,04% @1VRMS , 1KHz |
| GAIN | selectable in 4 positions 62dB, 56dB, 50dB, 43dB |
| Input impedance | selectable in 6 settings of resistance and 6 settings of capacitance |
| Max output level | Unbalanced 5,5VRMS Balanced 5,5+5,5VRMS |
| Analog output | 1 stereo unbalanced RCA, 1 stereo balanced XLR |
| Output impedance | Unbalanced 75 Ohm Balanced 40 Ohm |
| Power consumption | 10 W max <0,5W standby mode |
| DIMENSION | |
| Preamplifier | 260mm (D) x 200mm (W) x 70mm (H) |
| Power supply | 230mm (D) x 60mm (W) x 70mm (H) |
| Weight | Net Preamplifier 2,3 Kg Net Power supply 1,2 Kg |
