Frequency Response
|
44 - 25,000 Hz ±3dB
|
|
Tweeter Dispersion (horizontal x vertical)
|
80 x 30 degrees
|
|
Recommended Amplifier Power
|
Range 50–300 Watts
|
|
Sensitivity
|
93dB @2.83V/ 1 meter
|
|
Impedance
|
4 ohms. Compatible with 8 ohms
|
|
High Frequency Driver
|
FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm
|
|
Crossover Frequency
|
260, 2470 Hz
|
|
Crossover Type
|
3 way
|
|

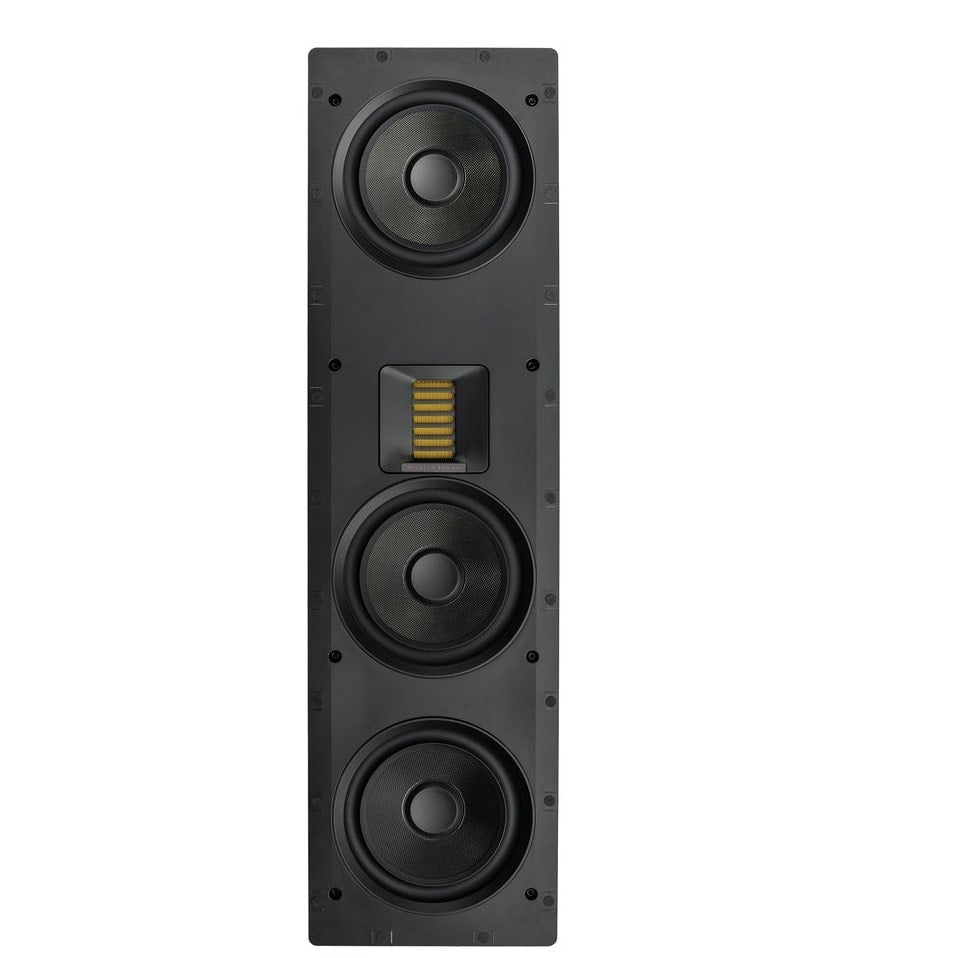

Driver Configuration
|
1 x 1.27” x 2.75” FMT, 1 x 6.5” midrange, 2 x 6.5” Woofers
|
|
Woofer Specifications
|
Two 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
|
|
Cabinet Material
|
Black w/ White Paintable Grill
|
|
Connector
|
Push style
|
|
Components
|
Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.
|
|
Max Power Handling
|
150 Watts
|
|
Midrange Driver
|
One 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap
|
|
Weight
|
18.9 lbs. each (8.6 kg)
|
|
Dimensions (overall size)
|
28” x 7.69” x 3.67” (71.12 x 19.5 x 9.31cm)
|
|
Required Wall Opening (includes tolerance)
|
6.64” x 27” (16.9 x 68.5cm)
|
|
Projection From Wall Surface
|
0.13” (0.32cm)
|
|
Depth Behind Wall Surface
|
3.54” (8.99cm)
|
