No Discounts Possible On This Product.
Affirm Cannot Be Used On This Product.

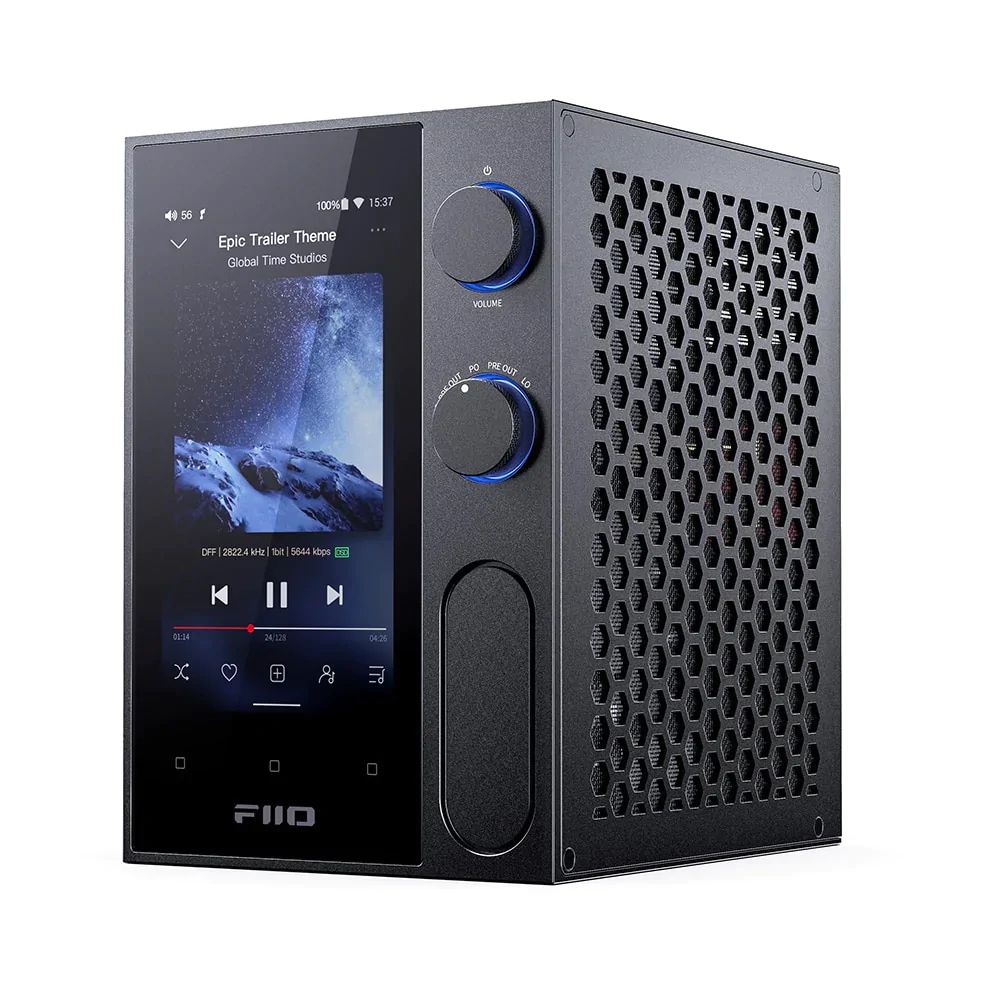

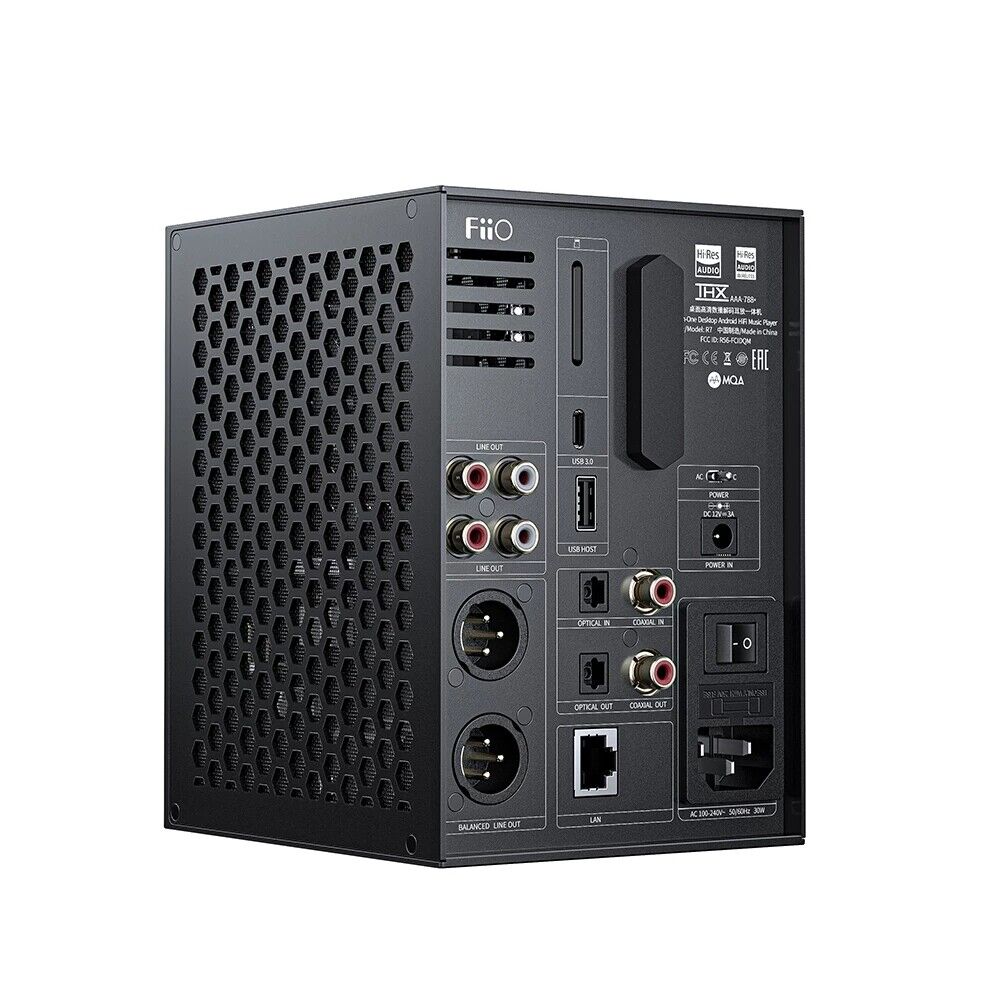

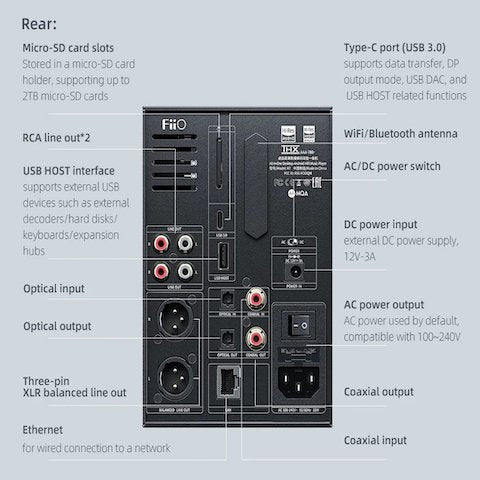

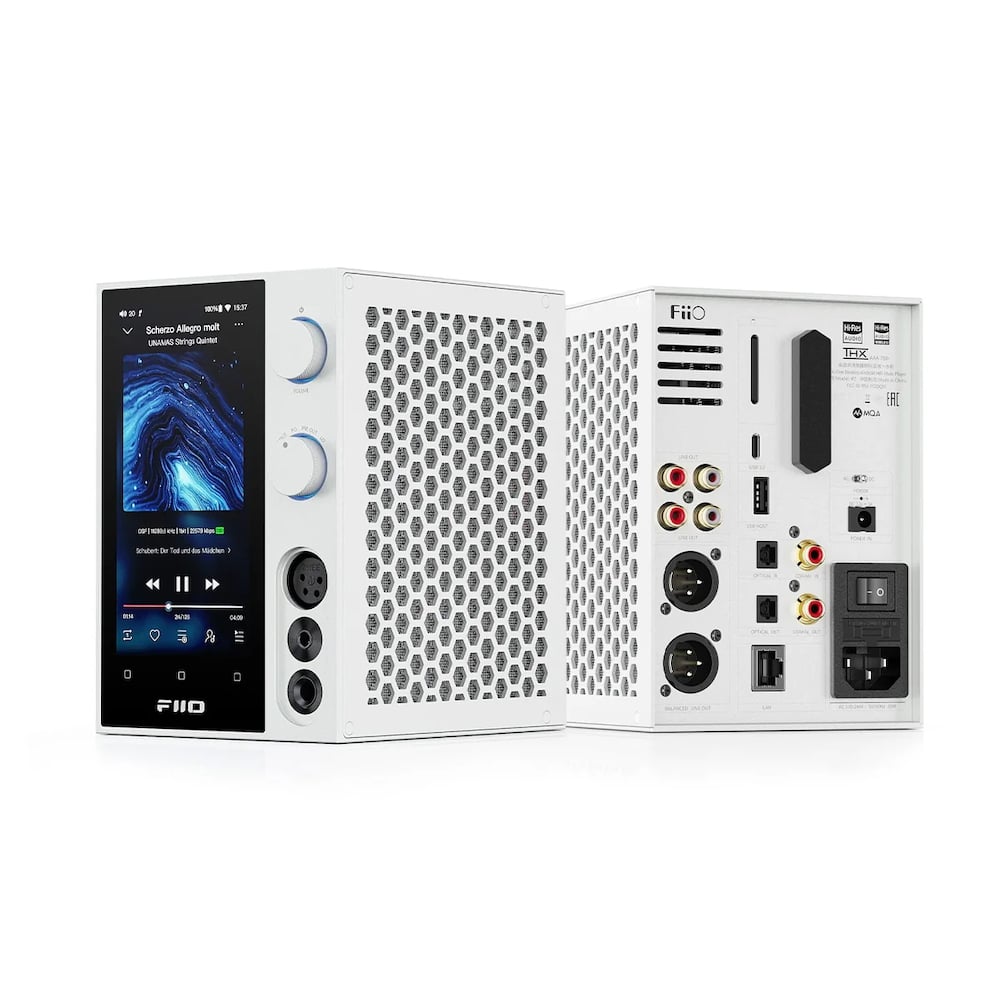

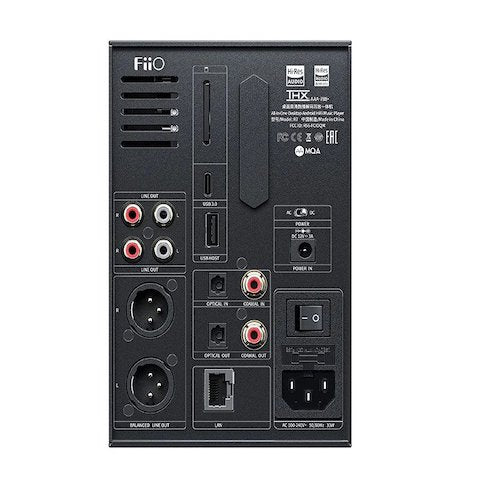

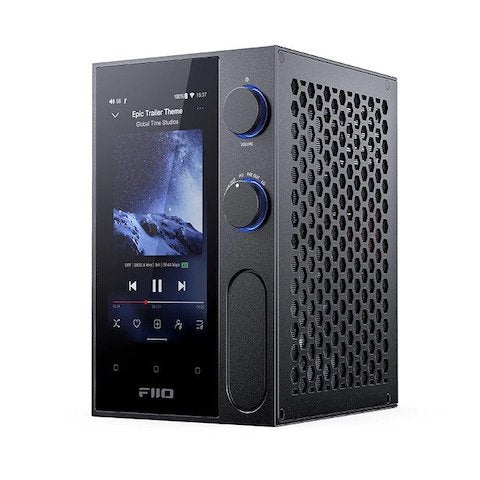

The new Fiio R7 is a standalone music streamer, dac, headphone amp, preamp all in one. It can be used \ to output to headphones, desktop speakers via rca output, pro audio monitors via XLR output, headphones via the 6.5mm / 4.4mm / XLR headphone outputs on the front. The volume dial and output dial right are conveniently located on the front. Playback music from a rear connected usb drive, from a storage drive, through ROON or play from streaming services like Spotify, Apple Music,Tidal, etc.
The new Fiio R7 features an open android operating system, with google play store, so you can use any available apps, even youtube music, soundcloud or bandcamp for playback. Use the R7 where you want music but do not want a computer as a source- such as in bedroom, downstairs / upstairs, office / den and connect to headphones or powered speakers.
The new Fiio R7 features touch screen controls with volume control and output mode selector dial make it easy to use. Software is similar to Fiio M11 but with specialized screen to select mode of use - usb dac / pure music streamer / android apps, etc - and an inputs/outputs screen.
PLEASE INDICATE CHOICE OF BLACK OR WHITE IN THE CHECK OUT NOTES. Thank you.
Specifications:
- Snapdragon 660 processor + android 10 OS + 4GB RAM
- Google Play store for app loading
- ROON Ready
- MQA 8x decoding
- Two way BT5: Transmit via AAC, apt-x, apt-x HD, LDAC
- BT receive via AAC, LDAC
- Headphone Amp: Balanced THX 788+ up to 3.6 watts
- 5 gain levels
- 6.35mm SE / 4.4mm & XLR BAL outputs
- Front output selector: Phones / Pre out / Line out / Phones + Pre out
- DAC: ESS9068AS chip
- Screen: 5", 720 x 1280 resolution
- Wifi 2.4 / 5 GHz
- Weight: 1.3kg
- Size: 11 x 14 x 16 cm
- 1 year warranty by Fiio Canada

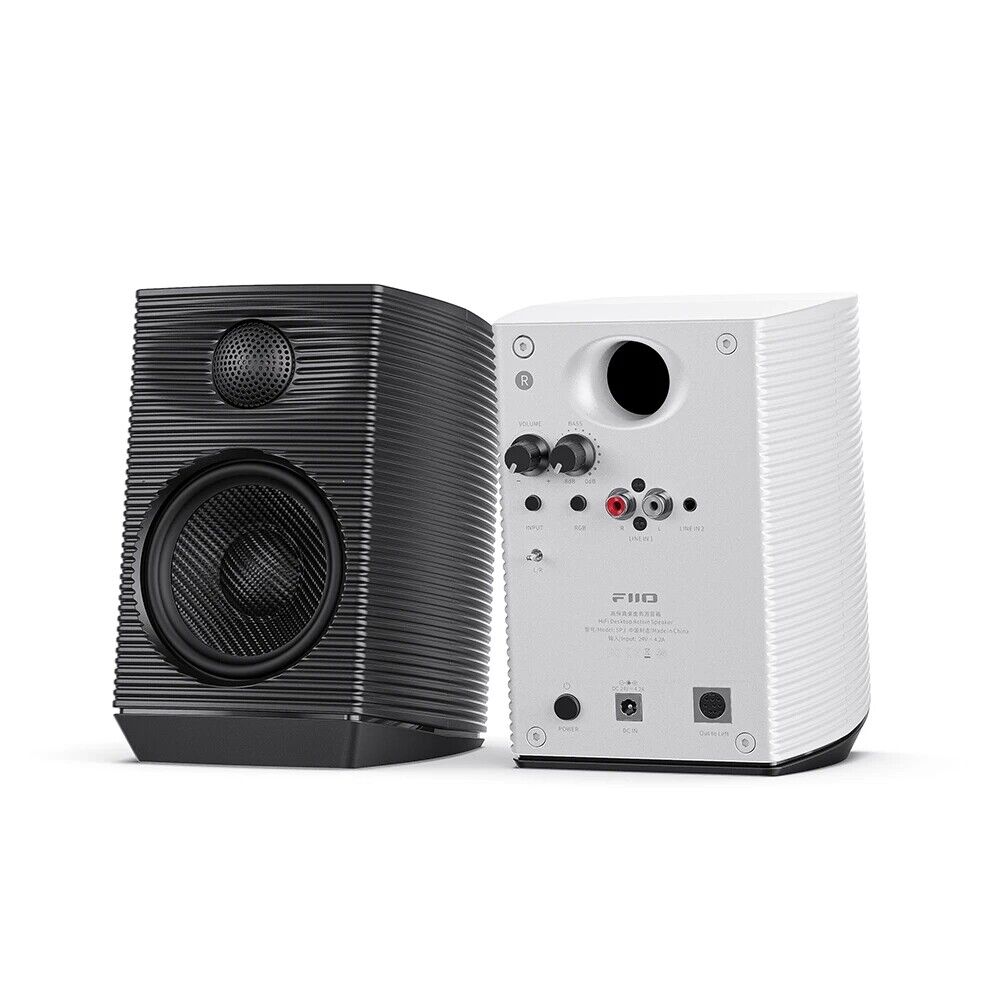

SP3 Active Speakers:
The SP3 employs a 3.5-inch carbon fiber mid-woofer, larger than typical products in its class. These larger woofers have an inherent advantage over smaller woofers in dynamics, projecting a larger soundstage, and other sonic attributes. Whether watching movies or listening to music, this woofer is truly capable of expressing the grandness of the audio even at louder volumes.
Carbon fiber is extremely strong and highly rigid yet lightweight - the ideal properties for a speaker driver. The light weight of carbon fiber allows the woofer to have rapid transient response, while carbon fiber's high strength and rigidity reduce non-linear distortion by minimizing unwanted secondary vibrations when the driver is moving when producing sound. Altogether, the carbon fiber material of the woofer helps to reproduce sound faithfully and lets you be more immersed in your high fidelity listening.
Each fiber of carbon fiber in the SP3 is only 0.007mm thick - the thickness of a single hair. These fibers are braided together, which helps to enhance sound quality by ensuring a wrinkle-free diaphragm as well as making the diaphragm stronger and more resistant to cracks after extended driver movement and usage.
In an active desktop speaker, the tweeter frequently plays a crucial role in reproducing fine musical detail, instrumental overtones, and overall treble resolution. The SP3, unlike many other active desktop speakers employing a 3/4-inch tweeter instead utilizes a 1-inch tweeter that can produce frequencies as high as 35kHz. The tweeter's KSV copper-clad aluminum voice coil that even at high volumes, ultra-high frequencies remain uncompressed - the result being better treble reproduction even in off-axis listening as well as highly resolving treble with natural timbre. With the SP3, you will be able to hear even the most subtle of vibrations generated by instruments.
With the FiO SP3, the development team considered multiple aspects when choosing the material of the tweeter. The softness of the internal part of the silk tweeter also acts as a soundwave absorbent, effectively absorbing unwanted sound waves behind the driver and further enhancing the sound output by the tweeter.
Low resonance frequency and high current carrying capacity have always been the goals of those designing high fidelity audio products. The FiO SP3 features a large empty cavity rear of the tweeter magnet, allowing the tweeter to play frequencies as low as an astonishing 800Hz. Even when the tweeter is playing frequencies above 20kHz, the rear cavity and overall design of the tweeter allow for unwanted soundwaves to escape and reduce resonances generated by tweeter movement. The result is silky smooth yet well-extended treble.
Specifications:
- Dimensions:
- About 163x120x132mm (without base)
- About 170x120x132mm (with 0° flat base)
- About 182x120x132mm (with 7° elevation base)
-
HD(%)Max volume, Rated input -10dB: ≤ 0.02%
- Output power (distortion limited):
Rated condition (THD 1%), bass: 2X30W
-
Rated condition (THD 1%), treble: 2X10W
-
Crosstalk Rated conditions: 84dB
-
SNR Rated conditions (dbA): 96dB
-
Crossover point It is the point at where sound transitions from bass to treble speaker: 3.4KHZ
-
Bass adjustment: -8dB-0dB
-
Input methods: RCA 3.5mm
-
Dimensions HxWxD(mm): 165x120x130
-
Frequency Response Measured in the free field (anechoic chamber), at 1m(=3.28ft.) axially from the front of the speaker, with input power 1W: 65Hz--20KHz STD±2db
- Impedance:
-
Bass driver: 8 Ω
-
Treble driver: 8 Ω
-
Sensitivity Measured in the free field (anechoic chamber), at 1m(=3.28ft.) axially from the front of the speaker, with frequency range 74HZ-20KHZ,1/3 OCT,120mV: 85dB
