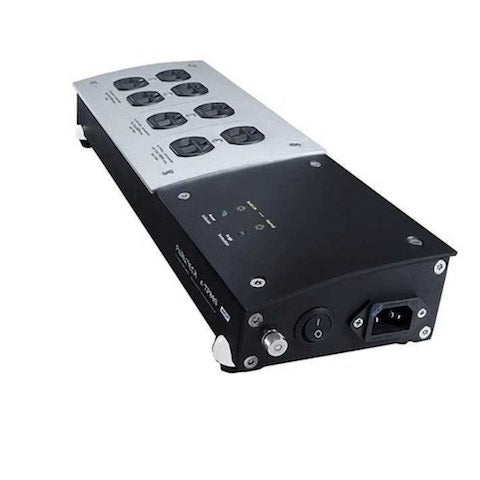

Furutech’s new e-TP80S series features audio grade FILTER and MOV circuitry:
Combined EMI Filter and Surge protection
Voltage fluctuations, electrical storms and power spikes can damage sensitive electronics.
Furutech’s e-TP80S NCF is fitted with a surge protector for that important layer of defense to protect your system.
During a voltage spike event, the e-TP80S NCF’s new MOV circuitry will automatically cut power to the main circuit board EMI filter line to prevent short circuit and protect your system. In addition, the audio grade MOV circuitry will damp any electrical and mechanical resonance caused by electrical resistance, heat and power flow.
Voltage: AC 125V 50/60Hz
Fuse current: 15 A
Loading watt: 1875 W
Grounding outlet: 8 Holes
Overload protective type: Automatic circuit (replacement of varistor required after surge protection event)
Insulation volt.: AC 1500V 1 MINUTE 5mA
Leakage current: Under 1.0mA
Max. Spike voltage: 6000V
Max. Clamping voltage: 360V (8x20μSec)
Max. Surge current: 4500A (8x20μSec)
Noise Filter: -20db~92db (2~100Mhz)
Insulation resistance: 300MΩ Above DC 500V
Body material: AL. ALLOY PLATE (PAINTED)
Power indicator: LED
Surge protection indicator: LED
Beautifully engineered rhodium-plating treatment nonmagnetic Phosphor bronze receptacles.
Receptacle insulated with RoHS compliant special audio grade nylon/fiberglass with a special anti-resonance nano-sized crystalline, piezo ceramic particles and carbon damping material body with special anti-resonance nano-sized crystalline “NCF” material polycarbonate cover for improved vibration damping.
Furutech’s Top high-end audio grade IEC inlet FI-06 NCF(R)
High-quality nano ceramic particle composite Isolator Footers.
Outward size: 400X130X60 mm approx.
Net Weight: 1.8Kg approx.
