Through its HybridDigital UcD output stage, the C 700 can deliver 2×80 watts of continuous power and 2×120 watts of instantaneous power, for effortless reproduction of musical transients. NAD’s highly efficient HybridDigital UcD amplifier design is renowned for ultra-low noise and distortion through the entire audioband, regardless of the loudspeaker load.

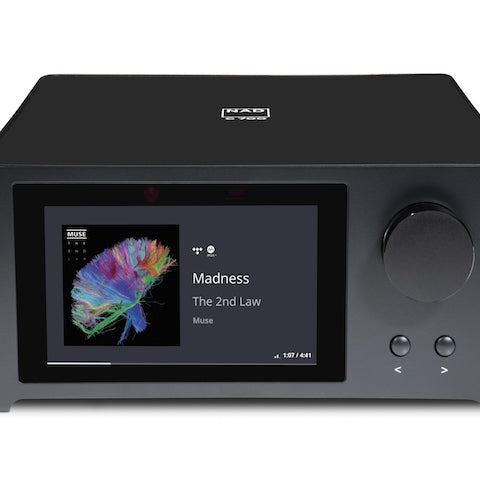

Thanks to its elegant, minimalist design and premium materials, the C 700 will engage all your senses — not just hearing, but sight and touch as well. The amplifier is housed in a solid aluminum case, with a smooth glass front panel and 5″ high-definition colour display that shows album art, track progress, and system settings.
Following menus on the C 700’s colour display, you can adjust amplifier settings with the control knob and navigation buttons on the front panel. And the C 700 can learn commands from your favourite remote control.
With built-in Ethernet and Wi-Fi, and a network streamer based on the rich, robust BluOS software platform, the C 700 has everything you need to play music through your favourite speakers. Using the BluOS Controller app, you can cue up music from dozens of different streaming and Web radio services, or play music stored on an external drive connected to the C 700’s USB port.
Like all BluOS-enabled components, the C 700 supports high-resolution audio to 24-bit/192kHz, and has full MQA decoding and rendering capability. With these features, you can enjoy lossless and high-resolution audio from services such as Amazon Music Ultra HD, Deezer, Qobuz, and Tidal.
The C 700 supports Spotify Connect and Tidal Connect, so you can control playback from the apps for those services; and Apple AirPlay 2, so you can stream music from Apple devices and iTunes libraries. You can also cue up music by voice, using the Amazon Alexa, Apple Siri, or Google Assistant protocol.
Specifications:
- Continuous output power into 8 ohms and 4 ohms
- >80 W (ref. 20 Hz-20 kHz at rated THD+N, both channels driven)
>100 W
- THD+N (20 Hz – 20 kHz) at rated power
- <0.04 %
<0.04 %
- Signal-to-Noise Ratio
- >84 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power
- >86 W (at 1 kHz 8 ohms 0.1 % THD)
>102 W (at 1 kHz 4 ohms 0.1 % THD)
- IHF dynamic power
- 8 ohms: 100 W
4 ohms: 125 W
- Damping factor
- >90 (ref. 8 ohms, 20Hz to 20kHz)
- Frequency response
- ±0.18 dB (20 Hz – 20 kHz)
- Tone controls
- Treble: ±6.0 dB at 20 kHz
Bass: ±6.0dB at 60 Hz
- Channel separation
- >93 dB (1 kHz)
>72 dB (10 kHz)
- Input sensitivity (for 80 W in 8 ohms)
- Line In: 550 mV
Digital In: -12 %FS
- Trigger Out
- 12 ± 1 V, 9 mA
- Standby power
- >0.5W
SUBWOOFER OUT
- Maximum output level
- 4.0 Vrms (ref 0.0032% THD+N 100 Hz)
- Signal-to-Noise ratio
- >106 dB (20 Hz-20 kHz, ref 1V out)
- THD+N
- >0.006 % (20 Hz-200 Hz, ref 1.964V)
- Output impedance
- 600 ohms
BluOS SECTION
AUDIO
-
- Sampling rate
- up to 32 bit/192 kHz PCM
- Bit depths
- Bit depths 16 – 24
CONNECTIVITY
- Network connectivity
- Gigabit Ethernet RJ45
-
- Wi-Fi 5
- USB
- 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
- Bluetooth quality
- aptX HD
- Bluetooth connectivity
- Two-Way (Receive and Headphone modes)
USER INTERFACE
- Supported operating system*
- Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
- Mobile Application
- Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
- Front panel
- Combination of front panel control knob and buttons
DIMENSION AND WEIGHT
-
Gross dimensions (W x H x D)**
- 218 x 96 x 266 mm
8 5/8 x 3 13/16 x 10 1/2 inches
- Shipping weight
- 4.8 kg (10.6 lbs)
