On Sale Until October 31/24.

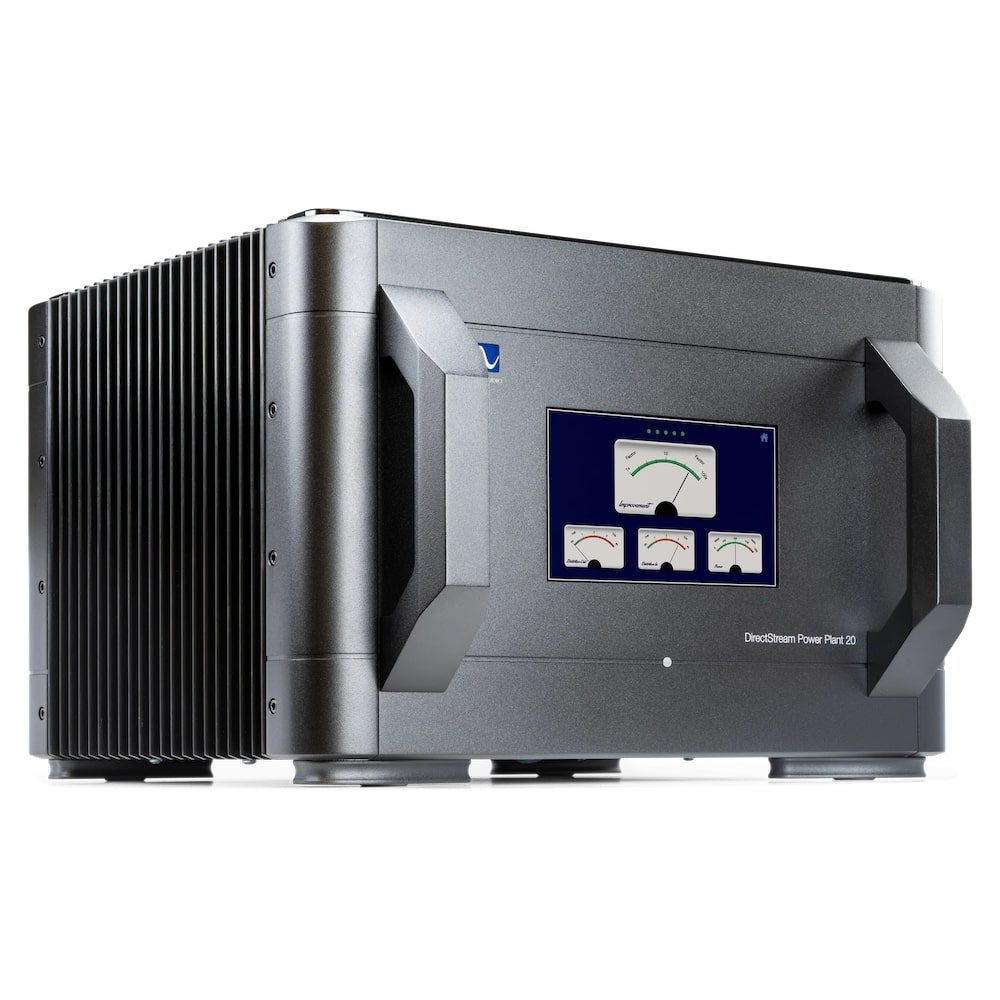

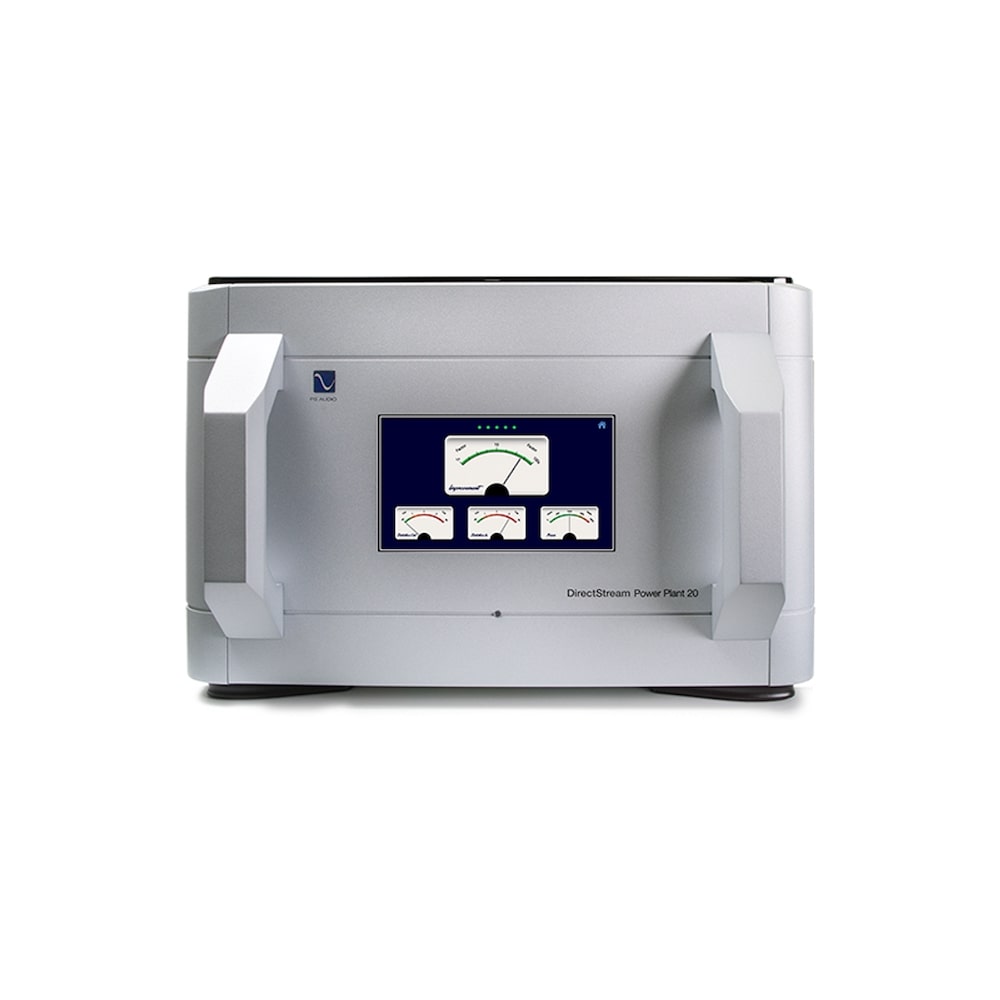

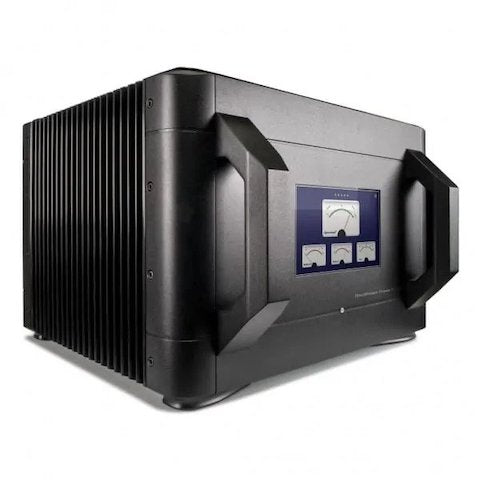

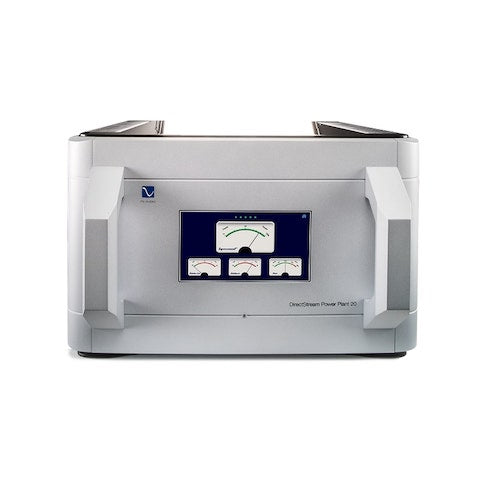

The new PS Audio DirectStream P20 Power Plant is the finest expression of the art of delivering protected, pure, regulated, distortion-free AC power. With peak power levels of 3600 watts, no equipment can tax the mighty P20. Finally, your most coveted components have the opportunity to unleash their full potential. DirectStream P20 regulates both long-term fluctuations and peak dynamics without deviation, ensuring a solid foundation from which to build a state-of-the-art system. Its low output impedance and unhindered AC delivery are equivalent to less than 50 feet of 12 gauge wire connected directly to your city power source without the connecting miles of wire, the many transformers, and the multiple neighbors weakening and contaminating your power.
The P20 can provide clean power to even the biggest, most elaborate audio system. With a maximum output of 2000 watts, and peak power levels of 3600 watts, the P20 will provide pure power for the most demanding components and reproduce the full dynamic range of any music thrown at it. Regulated to within 1/10th of a volt, the P20 provides, safe, unquestionable purity for systems of all sizes and ensures a solid foundation from which to build a state-of-the-art system.
Specifications:
Environment Specification
|
US/JP
|
Europe/Asia
|
| Location |
Indoor use only |
Indoor use only |
| Duty Cycle |
Suitable for continuous operation |
Suitable for continuous operation |
| Moisture Sensitivity |
Not sealed against moisture |
Not sealed against moisture |
| Operating Humidity |
<80%rh |
<80%rh |
| Storage Temperature |
-40C to +40C |
-40C to +40C |
| Operating Temperature |
0C to 40C |
0C to 40C |
| Max Operating Altitude |
12,000’ (3500m) |
12,000’ (3500m) |
| Electrical Supply Nominal Rating |
120V 15A 60Hz US
100V 15A 50/60 Hz JP |
230V 10A 50/60Hz |
Instrument Specification
|
|
|
| Unit Dimensions |
17” W x 14” D x 11” H (43cm W x 36cm D x 27.9 cm H) |
17” W x 14” D x 11” H (43cm W x 36cm D x 27.9 cm H) |
| Unit Weight |
96 lbs ( 43.5kg) |
96 lbs ( 43.5kg) |
| Shipping Dimensions |
23” x 22” x 17” ( 58cm x 55.8cm x 43 cm) |
23” x 22” x 17” ( 58cm x 55.8cm x 43cm) |
| Shipping Weight |
105 lbs (47kg) |
105 lbs (47kg) |
| Nominal Input Voltage |
95 – 145 VAC |
200 –285VAC |
| Maximum Continuous Load |
2000VA |
2000VA |
| Maximum Peak Load |
3600VA |
3600VA |
| Voltage Regulation |
>1V |
>1V |
| Output Distortion (Resistive Load) |
<0.5% |
<0.5% |
| Output Distortion (Reactive Load) |
<0.5%
0.1% typical |
<0.5%
0.1% typical |
| Output Impedance |
<0.005 ohm |
<0.005 ohm |
| Noise Reduction |
100kHz – 2MHz >80dB |
100kHz – 2MHz >80dB |
| Efficiency @1500 VA |
>85% |
>85% |
| Standby Power Consumption |
|
|
| Input Frequency |
45 – 65 Hz |
45 – 65 Hz |
| Under Voltage Limit |
Continuous -10% of setting 15 sec duration -15% of setting |
Continuous -10% of setting 15 sec duration -15% of setting |
| Over Voltage Limit |
Continuous 5% of setting 15 sec duration 10% of setting |
Continuous 5% of setting 15 sec duration 10% of setting |
| Energy Dissipation |
2040J |
5040J |
| Peak Current Surge |
180,000A |
180,000A |
| Clamp Level |
340V |
775V |
| DC Trigger Configuration |
Tip Positive |
Tip Positive |
| DC Trigger Voltage |
5 – 15Vdc |
5 – 15Vdc |
