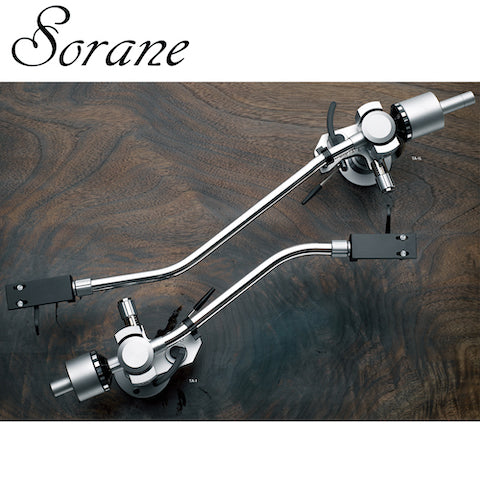

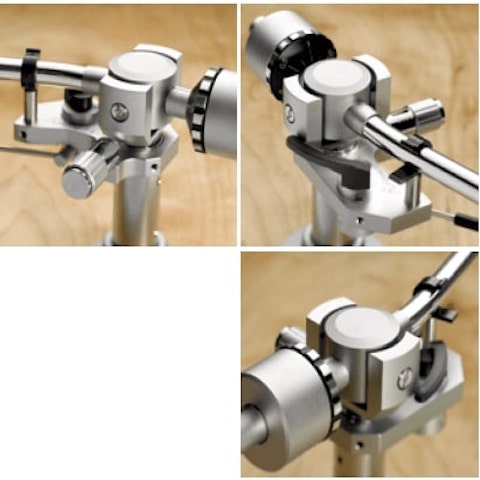

The major key to tonearm quality is the sensitivity and stability in retrieving delicate signals, for which the bearings are the determining factor. The TA-1 employs a miniature radial bearing for horizontal movement and a miniature pivot bearing for vertical movement. Very high performance is achieved at a reasonable price. * The body is constructed from a machine-tooled solid aluminum block. * The hand-assembled arm wand satisfies every vital condition necessary for vibration-free and noise-free reproduction. * Reproduced sound is precise and clean, thanks to hand assembly by highly skilled craftsmen. * Comes with detachable headshell, phono cable (RCA output plug, or optionally as XLR), screws, washers, wrench and marking pin.
TA-1:
-
Whole Length: 288 mm
-
Effective Length (Tonearm pivot – stylus): 232 mm
-
Practical Length (Tonearm pivot – Spindle): 216 mm
-
Overhang: 12mm
-
Offset angle: 16.5°
-
Horizontal moving sensitivity: 30mg
-
Vertical moving sensitivity: 20mg
-
Vertical Tracking Force (VTF) range: 0 – 3 g
-
Cartridge + Headshell weight range: 15 – 29 g ( 30g* Option)
-
Height Adjustment (Plinth to arm wand centerline): 15 – 55 mm
-
Vertical Bearing: Pivot miniature bearing (Not Pivot Contact)
-
Horizontal Bearing: Miniature Radial Bearing
-
Output plug: RCA (XLR : Option)
-
Output cable: Single core shielded copper
-
Tonearm Audio Lead wire: OFC 4N Copper
-
Headshell lead wire: Copper with gold plated terminals
-
Headshell: Machine tooled Aluminum
-
Tonearm Net Weight: 580 g
-
Attached standard Headshell Net Weight: 17 g
TA-1L:
| Whole Length |
380mm |
| Effective Length (Tonearm pivot – stylus) |
322mm |
| Practical Length (Tonearm pivot – Spindle) |
310mm |
| Overhang |
12mm |
| Offset angle |
16.5° |
| Horizontal moving sensitivity |
30mg |
| Vertical moving sensitivity |
20mg |
| Vertical Tracking Force (VTF) range |
0 – 5g |
| Cartridge + Headshell weight range |
15 – 24g ( 30g* Option) |
| Height Adjustment（Plinth to arm wand centerline) |
15 – 55mm |
| Vertical Bearing |
Pivot miniature bearing (Not Pivot Contact) |
| Horizontal Bearing |
Miniature Radial Bearing |
| Output plug |
RCA (XLR : Option) |
| Output cable |
Single core shielded copper |
| Tonearm Audio Lead wire |
OFC 4N Copper |
| Headshell lead wire |
Copper with gold plated terminals |
| Headshell |
Machine tooled Aluminum |
| Tonearm Net Weight |
610g |
| Attached standard Headshell Net Weight |
17g |
