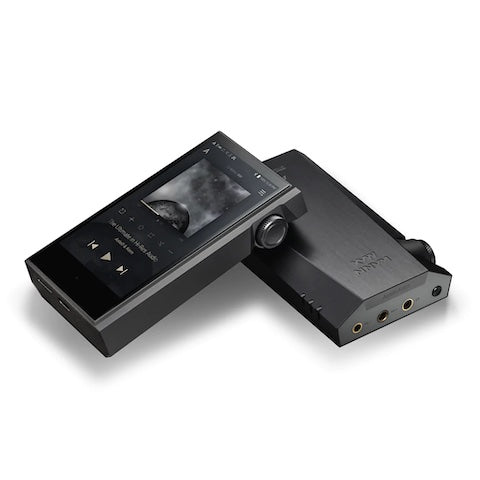

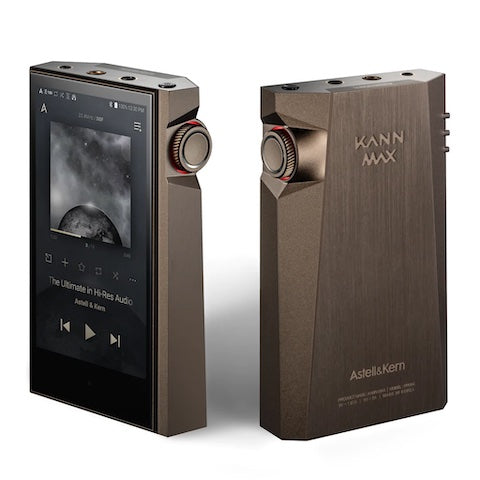

The new KANN MAX, the fourth product in the KANN series, builds on the advantages of the KANN series with higher output and portability. It provides 4 levels of gain and up to 15Vrms output so that a wide array of headphones can be driven in an optimal state.
By integrating the proven design of KANN series into a lighter weight and smaller sized player, we have realized both ultra-high output and low noise. KANN MAX features ESS ES9038Q2M Quad-DAC together with Astell&Kern's unique audio technology to provide the best performance you can feel from a portable DAP.
It takes the identity of the series to the next level to provide a perfect experience with high power and clear sound. It provides 4 stages of gain level and ultra-high output of up to 15Vrms, which was previously only possible with a stationary headphone amplifier.
KANN MAX can perfectly drive even the most sophisticated headphones with high impedance.
KANN MAX offers a smaller size and weight than the KANN APLHA player, which boasted the best portability in the existing KANN series.
Although smaller in size, all power-related components have been analyzed and the power circuit has been redesigned several times to achieve 13 hours of continuous playback.
Specifications:
|
Model
|
KANN MAX
|
|
Body Color
|
Anthracite Gray, Mud
|
|
Body Material
|
Aluminum
|
|
Display
|
4.1-inch, 720 x 1,280 touchscreen
|
|
Supported Audio Formats
|
WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DIFF, DSF, MQA
|
|
Sample Rate
|
PCM: 8kHz ~ 768kHz (8/16/24/32-bits per Sample)
DSD Native: DSD64 (1-bit, 2.8MHz), Stereo / DSD128 (1-bit, 5.6MHz), Stereo / DSD256 (1-bit, 11.2MHz), Stereo / DSD512 (1-bit, 22.4MHz), Stereo
|
|
Output Level
|
[Low] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)
[Mid] Unbalanced 4Vrms / Balanced 8Vrms (Condition No Load)
[High] Unbalanced 6Vrms / Balanced 12Vrms (Condition No Load)
[Super] Unbalanced 8Vrms / Balanced 15Vrms (Condition No Load)
|
| CPU |
Quad-Core
|
|
DAC
|
ESS ES9038Q2M x 4 (Quad-DAC)
|
|
Decoding
|
Support up to 32-Bit/768kHz Bit-to-Bit Playback
|
|
Input
|
USB Type-C Input (For Charging & PC & MAC)
|
|
Outputs
|
Unbalanced Out (3.5mm), Optical Out (3.5mm)
Balanced Out (2.5mm, only 4-pole supported | 4.4mm, only 4-pole supported)
|
|
Wi-Fi
|
802.11 b/g/n (2.4GHz)
|
|
Bluetooth
|
V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
|
|
Dimensions
|
2.68" (68.3mm) [W] x 4.6" (117mm) [H] x 0.92" (23.6mm) [D]
|
|
Weight
|
About 10.76oz (305g)
|
|
Feature Enhancements
|
Firmware upgrade supported (OTA)
|
|
Operating Temperature
|
0℃ ~ + 40℃ (32℉~ 104℉)
|
Audio Specifications
|
Frequency Response
|
±0.023dB (Condition: 20Hz~20kHz) Unbalanced │ ±0.026dB (Condition: 20Hz~20kHz) Balanced
±0.035dB (Condition: 20Hz~70kHz) Unbalanced │ ±0.072dB (Condition: 20Hz~70kHz) Balanced
|
|
S/N
|
114dB @ 1kHz, Unbalanced │ 115dB @ 1kHz, Balanced
|
|
Crosstalk
|
-124dB @ 1kHz, Unbalanced │ -135dB @ 1kHz, Balanced
|
|
THD+N
|
0.0003% @ 1kHz, Unbalanced │ 0.0004% @ 1kHz, Balanced
|
|
IMD SMPTE
|
0.0007% 800Hz 10kHz (4:1) Unbalanced │ 0.0007% 800Hz 10kHz (4:1) Balanced
|
|
Output Impedance
|
Unbalanced Out 3.5mm (1ohm) │ Balanced Out 2.5mm (1.6ohm), 4.4mm (1.6ohm)
|
Clock Source
|
Clock Jitter
|
25ps (Typ)
|
|
Reference Clock Jitter
|
70ps
|
*Audio specifications will be based on Low Gain
Storage Capacity
|
Built-In Memory
|
64GB [NAND]
|
|
External Memory
|
microSD x 1 (Max. 1TB)
|
Battery
|
Capacity
|
5,600mAh 3.8V Li-Polymer
|
|
Charge Time
|
About 3.5 hours (9V 1.67A Fast Charging) | 5.5 hours (5V 2A General Charging)
|
|
Playback Time
|
About 13 hours (Standard: FLAC, 16-bit, 44.1kHz, Unbalanced, Vol. 40, LCD Off, LED On, Low Gain)
|
Supported OS
|
Supported OS
|
Windows 7, 8, 10 (32/64bit); MAC OS X 10.7
|
