Description

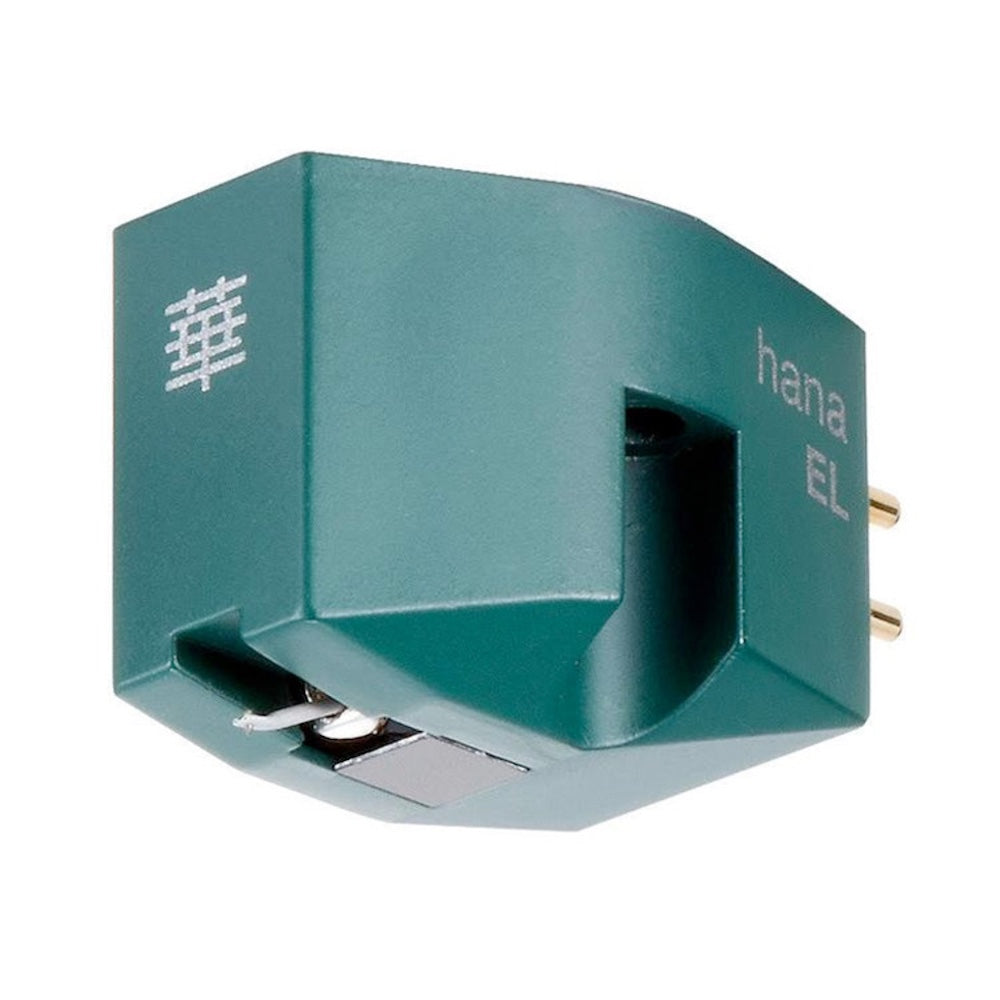

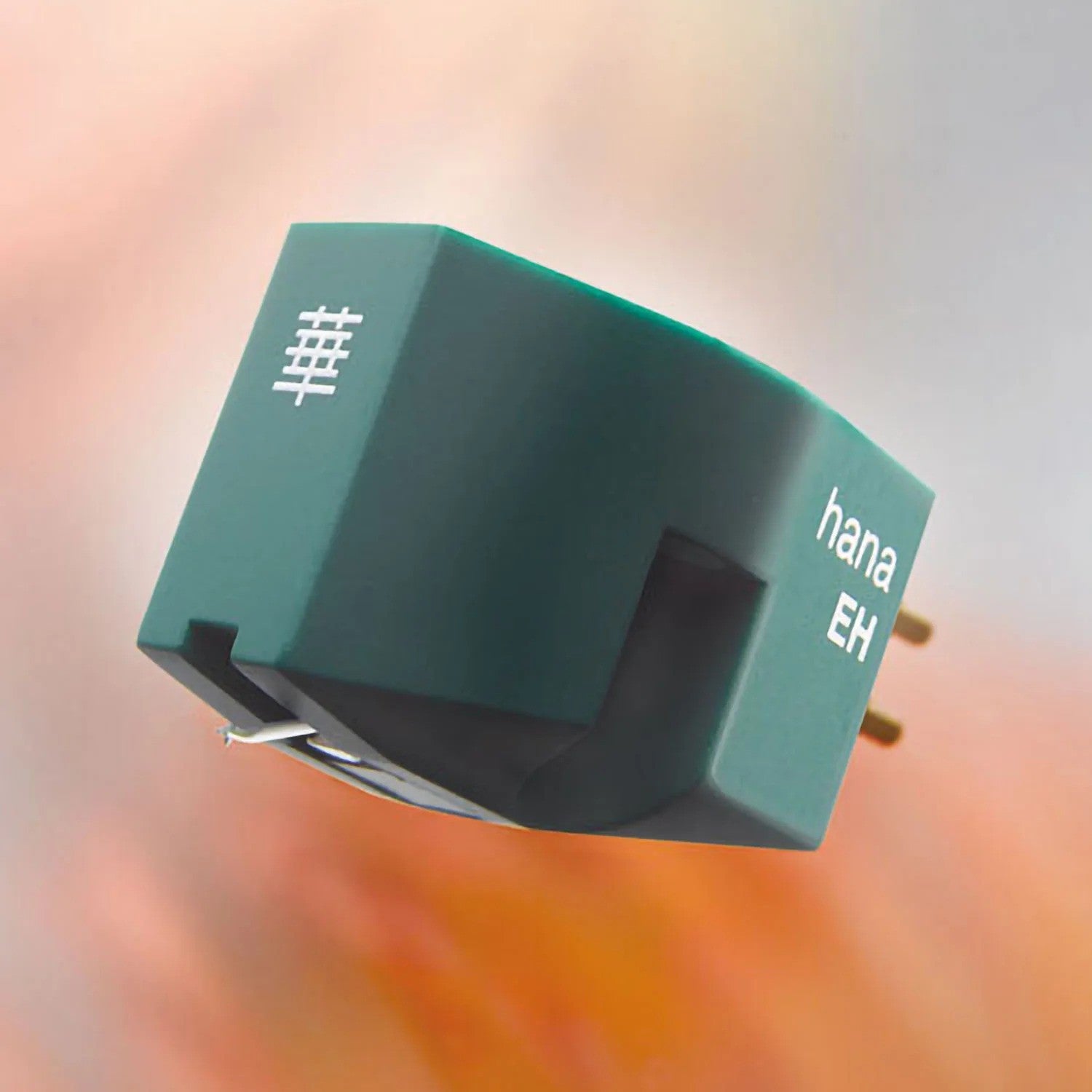

The Hana E Series Cartridges provide high-end musical performance from a low-output or high output moving coil cartridge at an extremely attractive price. Handmade in Japan, the EL and EH feature ALNICO magnets and afford the listener the textural, imaging, and musically involving qualities associated with the best MC cartridges.
Long prized by audiophiles and music lovers, affordable low MC cartridges such as the EL and EH are a perfect match to today’s generation of phono stages.
Specifications EL:
| Stylus | Synthetic Elliptical |
|---|---|
| Cantilever | Aluminum |
| Output Level | 0.5mv/1kHz |
| Output Balance | <2dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15-25,000Hz |
| Impedance | 30Ω/1kHz |
| Suggested Load Impedance | >400Ω |
| Cartridge Weight | 5g |
| Body Color | Moss Green |
| Warranty | 2 years |
Specifications EH:
| Stylus | Synthetic Elliptical |
|---|---|
| Cantilever | Aluminum |
| Output Level | 2mv/1kHz |
| Output Balance | <2dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15-25,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | >47kΩ |
| Cartridge Weight | 5g |
| Body Color | Moss Green |
| Warranty | 2 years |
