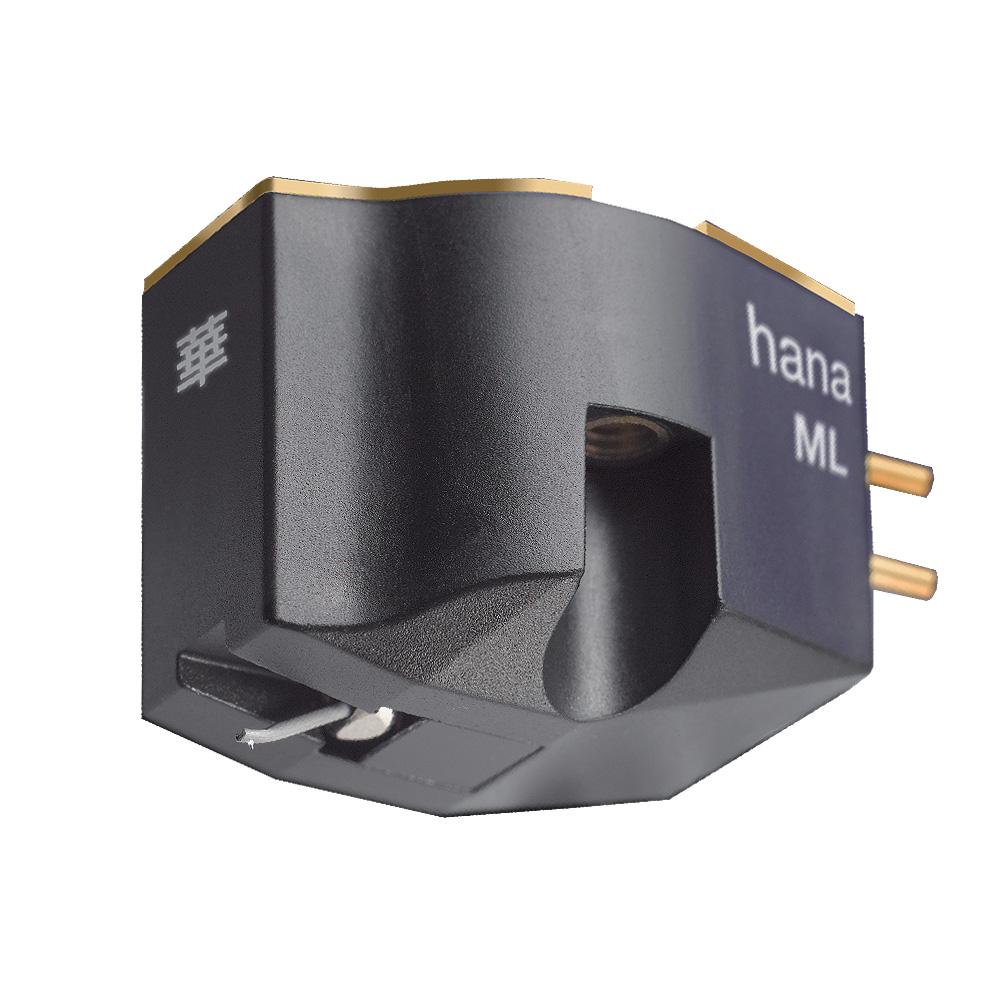

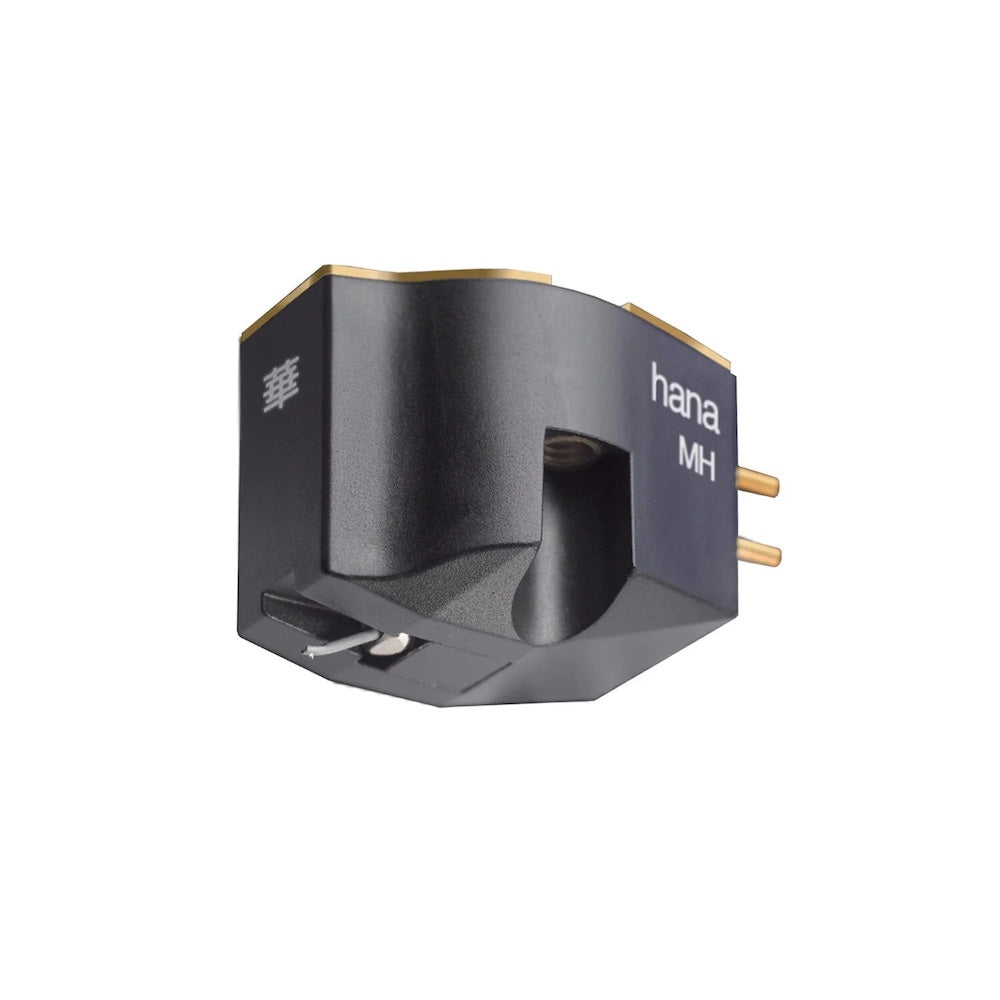

Hana ML and MH Cartridges
Hana ML and MH Cartridges
Usually Ships Within 1-2 days.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
The Hana ML aspires toward affordable perfection and represent the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation.
The M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.
The ML features cryogenic processing which is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.
The Delrin© cartridge body features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables. Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.
The MH combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages. The MH combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages.
Specifications ML:
| Stylus | Microline |
|---|---|
| Cantilever | Aluminum |
| Magnetic Circuitry | Pure Iron/Cryo Treatment |
| Coil Wire | High Purity Copper |
| Cartridge Housing | POM (Delrin) / Brass |
| Output Level | 0.4mv/1kHz |
| Output Balance | <1dB/1 KHz |
| Trackability | 70 µm/2g |
| Channel Separation | 30dB/1kHz |
| Frequency Response | 12-45,000Hz |
| Impedance | 7Ω/1kHz |
| Suggested Load Impedance | >100kΩ |
| Magnet | Alnico |
| Vertical Tracking Force | 2g |
| Cartridge Weight | 9.5g |
| Height | 16.3mm |
| Body Color | Black w/Brass Plate |
| Warranty | 2 years |
Specifications MH:
| Stylus | Microline |
|---|---|
| Cantilever | Aluminum |
| Magnetic Circuitry | Pure Iron/Cryo Treatment |
| Coil Wire | High Purity Copper |
| Cartridge Housing | POM (Delrin) / Brass |
| Output Level | 2mv/1kHz |
| Output Balance | <1dB/1 KHz |
| Trackability | 70 µm/2g |
| Channel Separation | 30dB/1kHz |
| Frequency Response | 12-45,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | 47kΩ |
| Magnet | Alnico |
| Vertical Tracking Force | 2g |
| Cartridge Weight | 9.5g |
| Height | 16.3mm |
| Body Color | Black w/Brass Plate |
| Warranty | 2 years |
