Description

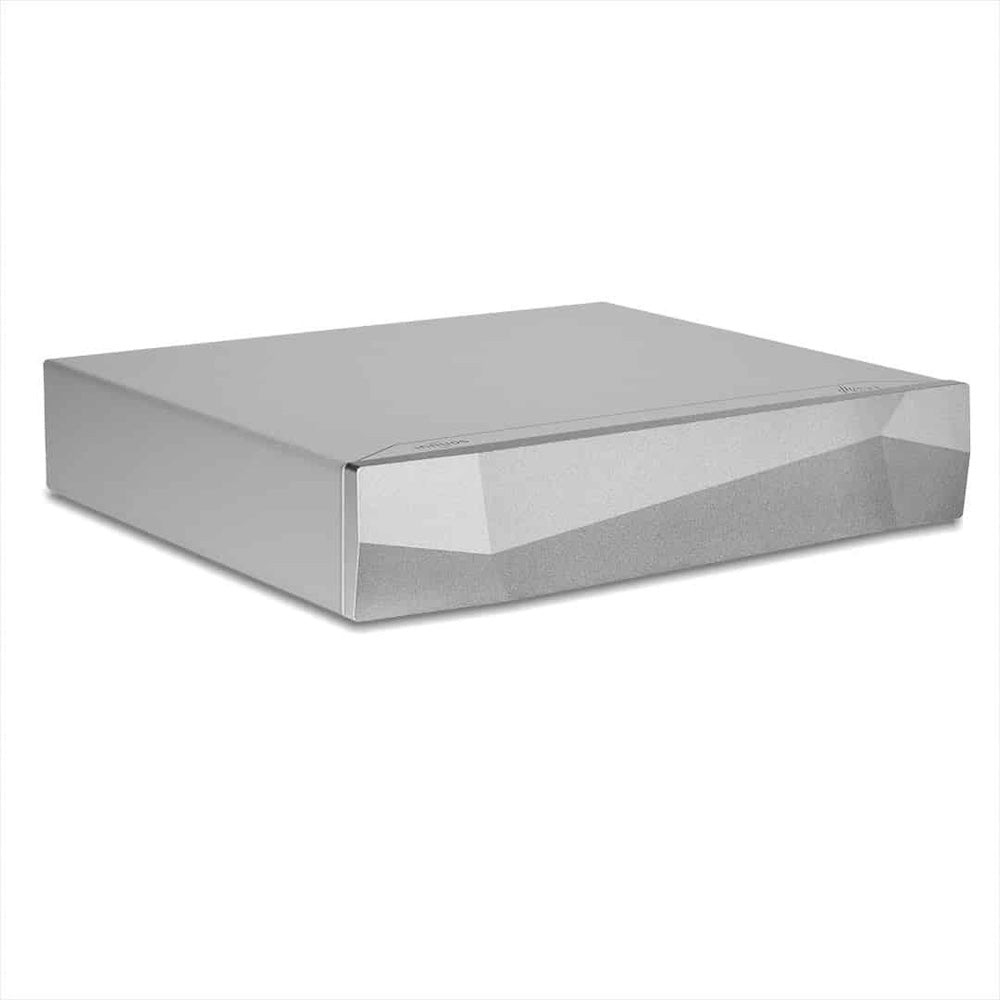

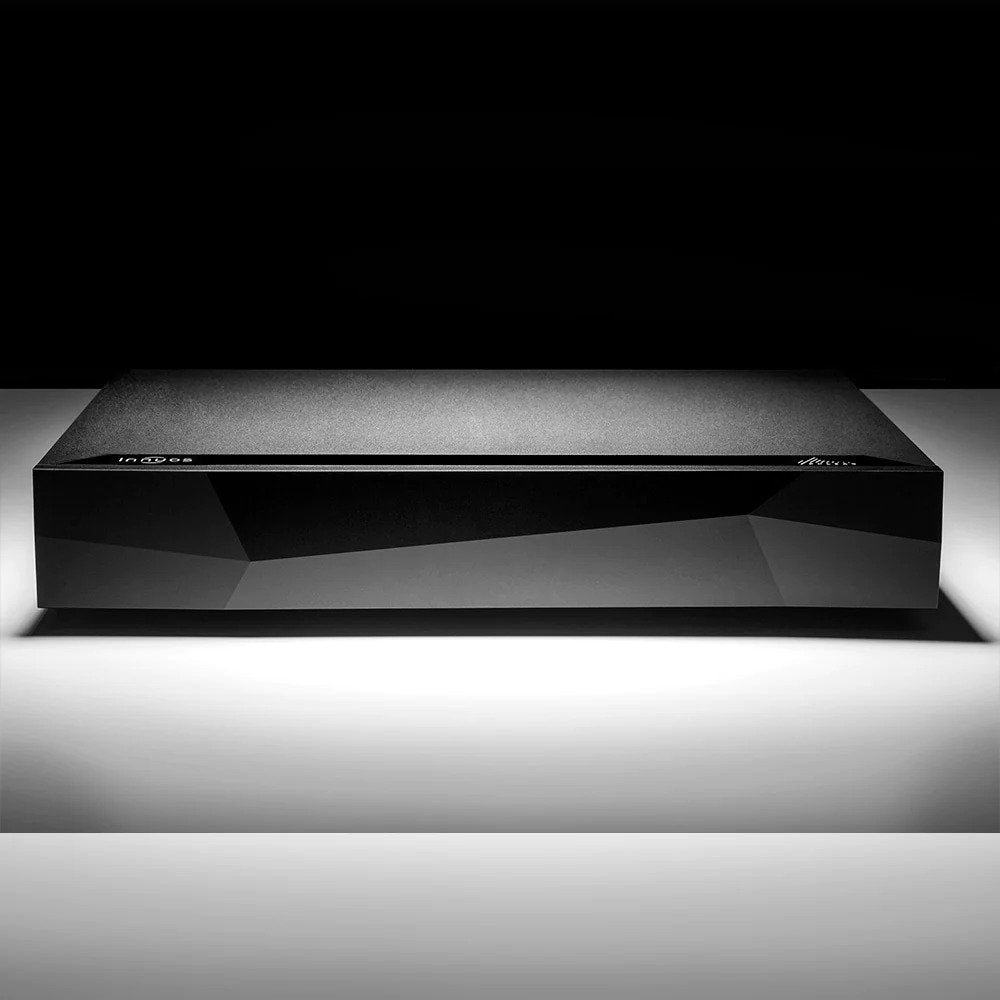

The new Innuos PULSAR features a full bead-blasted and anodised high-grade aluminium chassis yet the best is still reserved for the inside.
The Innuos Pulsar includes a custom ARC6 module with Active Rectification, over 130000µF of Mundorf Capacitors, a large high-end inductor and a massive 300VA audio-grade toroidal transformer.
The PULSAR offers options to purchase with the following pre-installed boards:
PhoenixUSB Lite Output Board
Phoenixi2S Lite Output Board
SPDIF Board

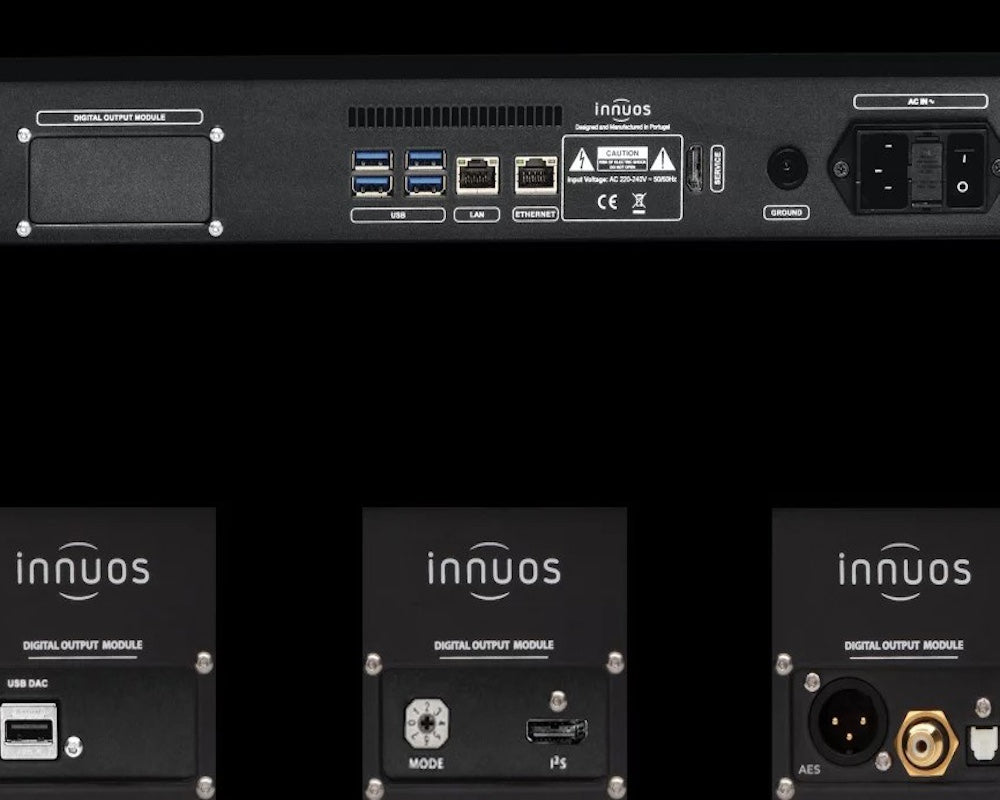

Please see the last photo for photos of the 3 options. Specs of each board are below.
Please contact us with any questions.
Specifications:
Audio Outputs
Digital Output | 3 x USB 3.2 Gen2 (Up to 32bit/768KHz, Up to DSD256 via DoP, Up to DSD512 via Native DSD) |
Optional Digital Output Modules | SPDIF Board Adds 1 x AES, 1 x Coaxial, 1 x Optical (Up to 24bit/192KHz PCM) PhoenixUSB Lite Board Adds 1 x Reclocked USB 2.0 Output. 3ppb 24MHz OCXO. (Up to 32bit/768KHz PCM, Up to DSD256 via DoP, Up to DSD512 via Native DSD) PhoenixI2S Lite Board (Up to 32bit/768KHz PCM, Full DSD support up to Native DSD1024) |
Ethernet | 2 x rear panel RJ45 – Bridged Gigabit Ethernet |
USB | 4x USB 3.0 |
Audio Formats Supported for streaming and playing | WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA |
Endpoint Mode | Connects to Innuos Music Servers, Logitech Media Server based Servers or HQPlayer Server |
Web Interface | Modern Web Browsers from iOS, Android, Windows and Mac OS |
Mobile | Innuos Sense App (iOS/Android/Kindle Fire) |
CPU | Intel Quad Core N4200 |
Memory | 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback) |
UPnP/DLNA | Controls selected UPnP streamers as endpoints via Sense |
Streaming Services | Internet Radio, Qobuz, HighResAudio, Deezer, Radio Paradise, Tidal |
USB DAC Support | USB DACs complying to USB Audio Class 2 |
USB DACs supporting DSD over DoP protocol | |
Selected USB DACs supporting Native DSD |
Network | Requires Internet connection to access Internet Radio, Streaming Services and software updates | ||||||||
Network router with at least one available ethernet port | |||||||||
Premium subscription required for some streaming services such as Spotify, Qobuz and TIDAL
|
