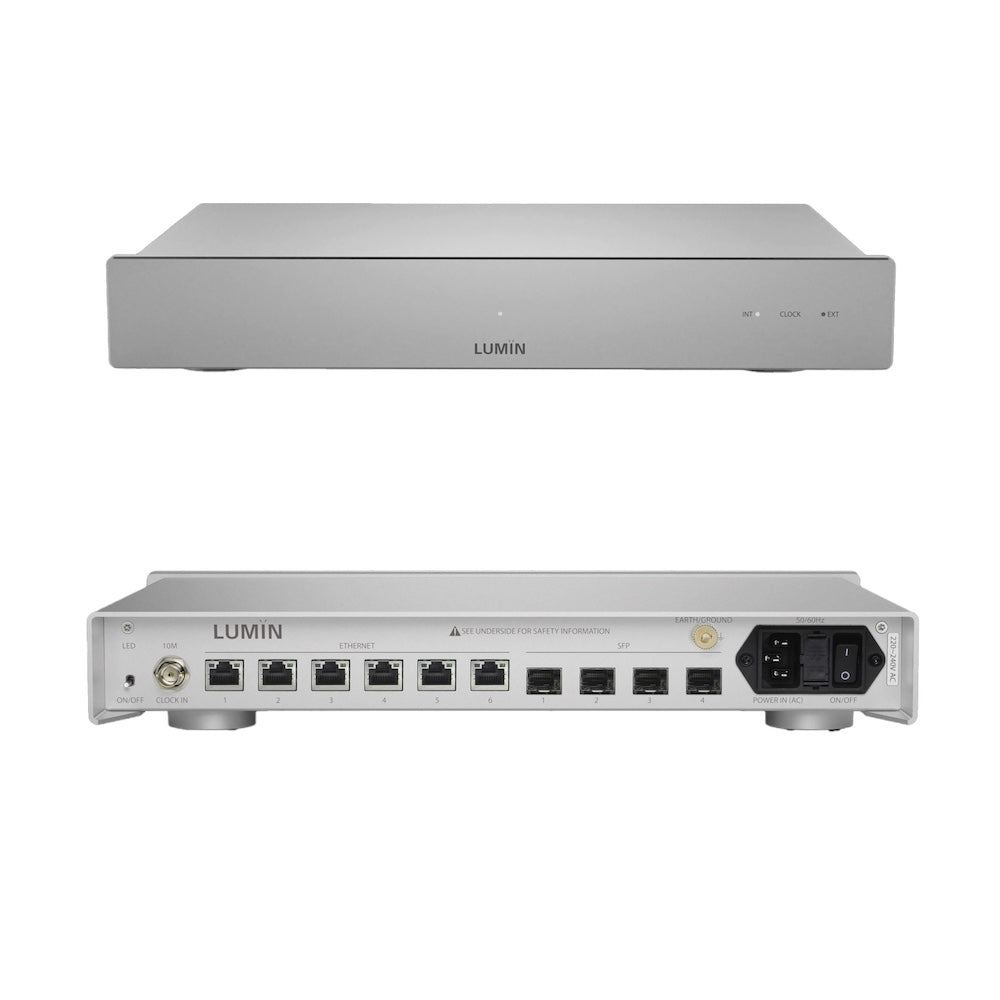

Lumin N1 Network Switch

Description

The new LUMIN N1 Network Switch brings flagship grade network isolation to your entire Hi-Fi system. Building on the huge success of LUMIN L2, this dedicated 10-port switch provides even greater connection flexibility and combines high-capacity with a zero-noise philosophy.

The ultra low noise linear power supply is derived directly from our award-winning U2 and T3X, this extra large toroidal transformer continues the low-noise focus that is found throughout LUMIN N1. Unlike standard network switches that rely on noisy external adapters, LUMIN N1 houses its high-performance linear power stage within a shielded compartment to ensure zero interference with delicate network signals.

Although the new N1 features a high-stability internal clock, the 10MHz BNC input allows synchronization with an external master clock. It is ideal for use with clock output from LUMIN U2X or a 3rd party master clock, this synchronization can provide system-wide coherence, operating on a low-jitter, unified timing reference.

The N1 features four Fibre SFP ports allow optical fibre networking input and output, completely electrically isolating your sensitive hi-fi components from the rest of your network.

The N1 also features six Copper RJ45 ports provide the flexibility and convenience of connecting all your equipment to the same hub avoiding cheap (and electrically noisy) consumer switches around your hi-fi and providing rock-solid wired connections for maximum stability.

Specifications:

• NETWORK CONNECTIONS:
• 6x Gigabit Ethernet Network (1000BASE-T) RJ45
• 4x Industry-standard Gigabit SFP
• 10M CLOCK INPUT:
• 50 Ohms on BNC

POWER SUPPLY:

• Internal toroidal linear
• Low-noise linear regulator
• Shielded power supply compartment for reduced interference with delicate electronics

FINISH:

• Black anodised aluminium
• Raw anodised aluminium

DIMENSIONS:

• 360mm (W), 236.5mm (D), 60.5mm (H). Weight 6kg.

In The Box:

• LUMIN N1 Network Switch
• Power Cable (IEC cable for your country’s power supply)
• 2x SFP LC Modules
• Optical Network Cable
• RJ45 Ethernet Cable
• Quickstart Guide
• Safety Information
