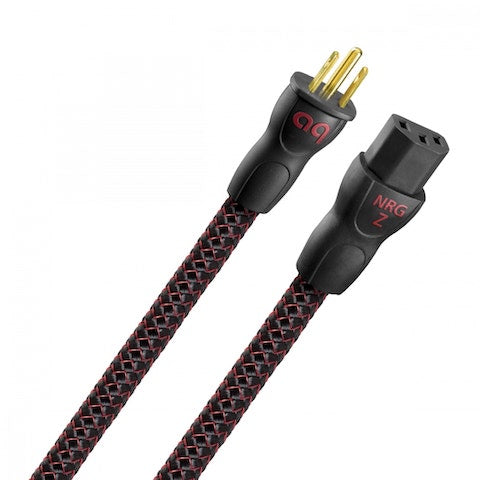

Load image into Gallery viewer, audioquest-nrg-noteworthyaudio-1000x

Load image into Gallery viewer, audioquest-monsoon-noteworthyaudio-1000x

Load image into Gallery viewer, puritan-powercords-noteworthyaudio-1000x

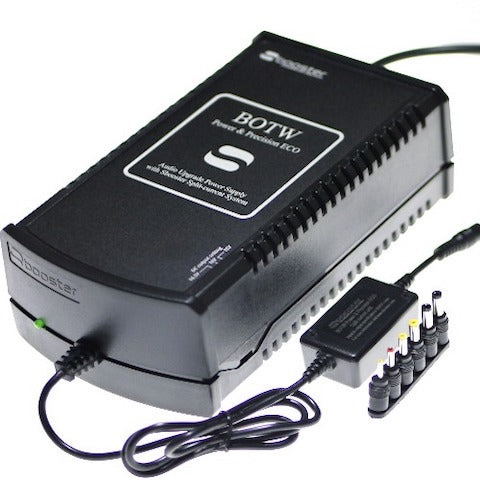

SBooster BOTW P&P MKII DC and AC Power Supply IN STOCK

Name: SBooster BOTW P&P MKII DC and AC Power Supply IN STOCK
Brand: SBooster
SKU: 43857087987953
Price: 958.95 CAD
Availability: InStock

SBooster

$958.95

Free Shipping In Canada

BOT P&P MKII

Quantity

No Discounts Possible. Affirm Cannot Be Used With These Products.

5v and 12v are in stock. The Bluesound Node Upgrade Is In Stock As Well.

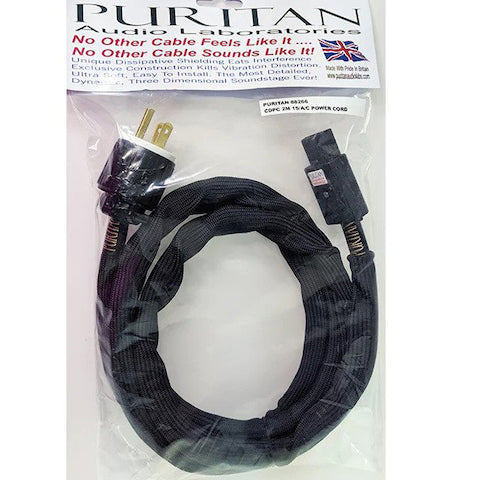

Please contact us to make product option changes (Puritan for example) or upgrades in power cords or for longer lengths.

Please also have a look at the iFi and Plixir Options as well.

With the new SBooster BOTW P&P ECO audio upgrade the purification of the current starts immediately there where the polluted current enters the power supply. The dual stage mains filter and earth line choke removes high frequency pollution before the current reaches the transformer. The transformer is a custom-made audio grade transformer with electrostatic shielding. The transformer of the MKII power supply is also magnetic shielded.

The electronic design is innovative: it gets 50% more energy out of the used electronics and consumes even up to 35% less energy than a conventional design. The BOTW P&P ECO audio upgrade concept is so efficient that it consumes only a bit more energy than the standard supplied high efficient, but also highly polluting switch mode adapter. The BOTW P&P ECO costs annually only a couple of euro extra on your energy bill for a priceless sound experience.

At the end of the DC cable you find our unique split-current system. The power supply part of the BOTW P&P ECO provides the split-current system with continuous powerful and clean power, so the electronics can do their job profoundly: 1) to buffer the power, so that the power supply becomes fast, and 2) to filter one last time the voltage and current before they enter the audio device.

This unique upgrade power supply with its large headroom delivers at all times sufficient clean power to the audio device to ensure a stable and continuous performance of the internal processes of the audio device in order to get the best performance out of the audio device.

This combination of power and precision results in “easy” music, a perfect soundstage and a natural detailed sound.

PLEASE INDICATE AMPERAGE VALUE REQUIRED IN THE CHECK OUT NOTES. PLEASE SEE BELOW AS WELL AS THE DROP DOWN ABOVE FOR OPTIONS OR PLEASE GIVE US A CALL FOR ASSISTANCE. Longer lengths of the power cords indicated available as well.

Please contact us for Bundle Pricing with other Audioquest or Puritan power cords. Thank you.

Product highlights:

50% more output current;

Power saving design;
2 characteristics in 1 product:
- Power for high current demanding equipment;
- Precision for noise sensitive equipment;
3 selectable output voltages;
IEC 14 power inlet for suitable High-end mains cables;
High performance dual stage mains filter;
Earth line choke;
Overvoltage protection;
Custom made high efficient audio grade transformer;
High quality polypropylene film capacitors;
No-noise Sbooster split current system.

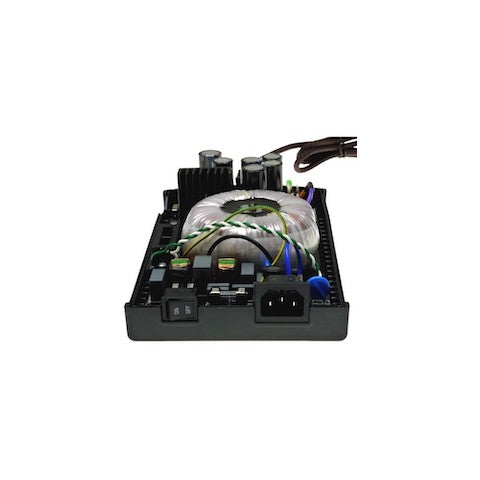

Features of the MKII to improve the power flow, reduce mechanical stress and to lower the internal impedance & resistance:

High quality PCBs:
- Double sided 2oz. copper
- Gold plated finish
Better and thicker quality heatsink
Upgraded internal wiring: High quality silver plated copper with PTFE insulation
Transformer:
- Electrostatic shielding
- HF Magnetic shielding
Upgraded low ESR bulk capacitors
Improved reference-circuit
Next generation split-current unit
New DC-output cable with additional shielding and sleeve

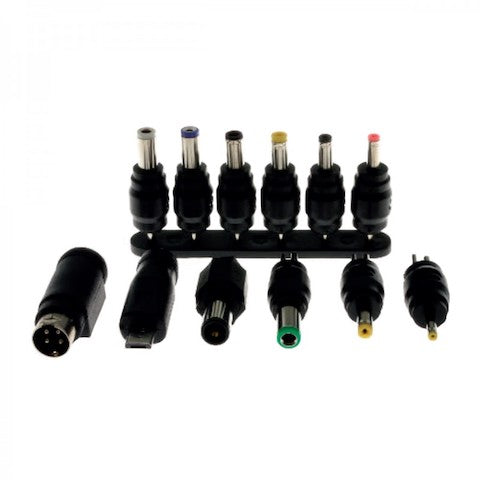

Custom-made DC-plugs
Gold plated connector pins split-current unit.

Models and output voltage & current:

5-6V:
- 5V – 3A
- 6V – 1.75A
- 6.5V – 1.6A
9-10V
- 9V - 2.33A
- 10V - 1.25A
- 10.5V - 1.1A
12-13V
- 12V - 3A
- 13V - 2.25A
- 13.5V - 2.1A
15-16V
- 15V - 2.5A
- 16V - 1.85A
- 16.5V - 1.65A
18-19V
- 18V - 2,25A
- 18.5V - 2.0A
- 19V - 1.75A
24V
- 24V - 1.1A

General specifications:

Mains Voltage Selection:

100 Volt AC 50/60Hz
110 Volt AC 50/60Hz
115 Volt AC 50/60Hz
120 Volt AC 50/60Hz
220 Volt AC 50/60Hz
230 Volt AC 50/60Hz
240 Volt AC 50/60Hz

Transformer:

35VA (5-6V and 9-10V models)
50VA audio grade toroidal with electrostatic and magnetic shielding

Mains filter: High performance dual stage mains filter with earth line choke

Rectifier bridge: Power Schottky barrier rectifiers

Bulk capacitors: Low Impedance High Ripple Current Capacitors

Regulator: High-current ultra-fast transient response LDO with external high precision shunt reference circuit

Filter capacitors: Non inductive polypropylene film capacitors

DC power cord: 95cm 16 AWG spiral shielded, additional shielding and sleeving, integrated Sbooster Split-current system and interchangeable gold plated DC-plug-connector

Mains cable: Stock supplied

Size and Weight: 240*130*75mm / 1.85Kg

Warranty: 24 Months
