Sennheiser AMBEO MAX 5.1.4 Channel Soundbar

Description

The King Of Soundbars! AMBEO delivers a 3D home audio experience like you've never heard before. It is powered by 13 high-end drivers and delivers a 5.1.4 sound experience while also producing extremely deep 30Hz bass without the need for an extra subwoofer. Thanks to an advanced room calibration, it immerses you in studio-grade sound adapted to the specifics of your living room for an unforgettable 3D experience.

NEW FIRMWARE RELEASED THE LAST WEEK OF AUGUST/25. INCLUDES:

AMBEO | OS2 delivers a significant uplift in the quality of experience for movies and music alike, whilst giving the end user more control than ever before.

For the movie buff, a new Voice Enhancement feature has been added to support better hearing of dialogue when low in the mix or drowned out by music and effects.

AMBEO | OS2 also provides individual volume levels for side, top and center channel speakers giving the user more control of the level of immersion experienced.

Music fans and audiophiles also receive a big uplift in performance; adding to the existing native support for Dolby Atmos music (via Tidal), AMBEO | OS2 extends the lossless audio support to 24bit / 96KHz when using Google Cast for Audio, and up to 24bit / 192KHz via Tidal Connect.

All AMBEO Soundbar | Max units will update automatically via their internet connection and users will also be able to download the update file to a USB stick from our website.

Please Contact Us To Substitute Subwoofers.

Specifications:

Acoustics

• Presets

  Movie, Music, Sports, Neutral, AMBEO off, on (Light, Standard, Boost)

• Number of channels

  5.1.4

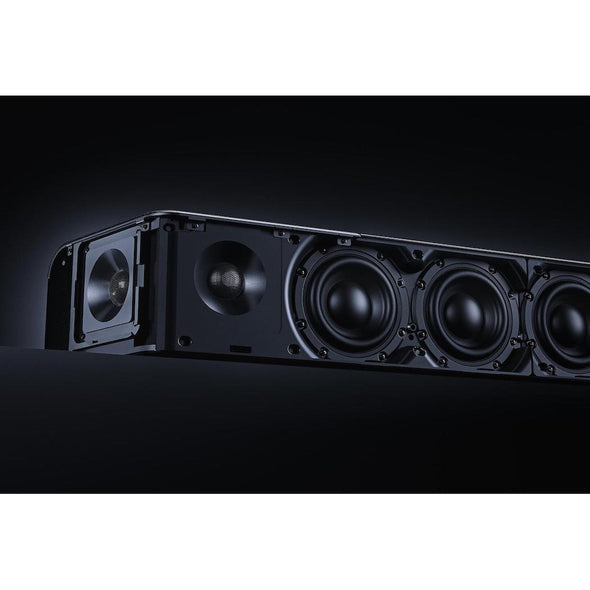

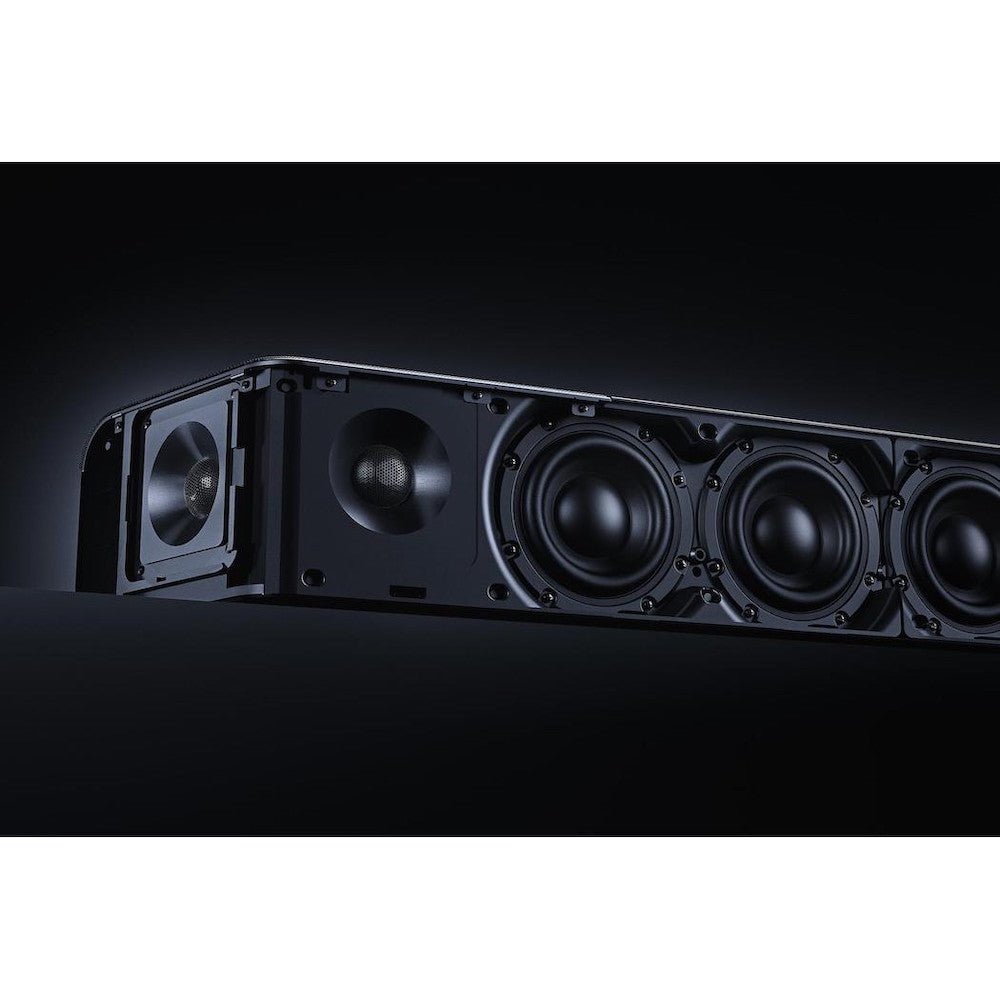

• Speaker type

  6x 4" longthrow woofer, cellulose sandwich cone

  5x 1" tweeter, aluminium dome tweeter

  2x 3.5" fullrange driver (top-firing)

• • Total number of speakers

    13

  • Frequency response

    30 Hz to 20 kHz (-3 dB)

Ambeo Soundbar

• Weight

  approx. 18.5 kg

• Temperature Range

  operation: +10 °C to +40 °C

  storage: -20 °C to +70 °C

• Dimensions

  approx. 126.5 x 13.5 x 17.1 cm incl. feet

  approx. 126.5 x 12.5 x 17.1 cm w/o feet

Electronics

• Power consumption

  250W (Sinus), 500W (Peak) Standby Power Consumption: ECO Standby ON = 1.9W, ECO Standby OFF = 5.5W

• Voltage

  100 – 240 V~ 50/60 Hz

• Power plug

  Country specific

• • Amplifier

    max. 500W

  • Display

    Graphic OLED with brightness sensor, status LED, AMBEO LED

Connectivity

• App support

  Sennheiser Smart Control App

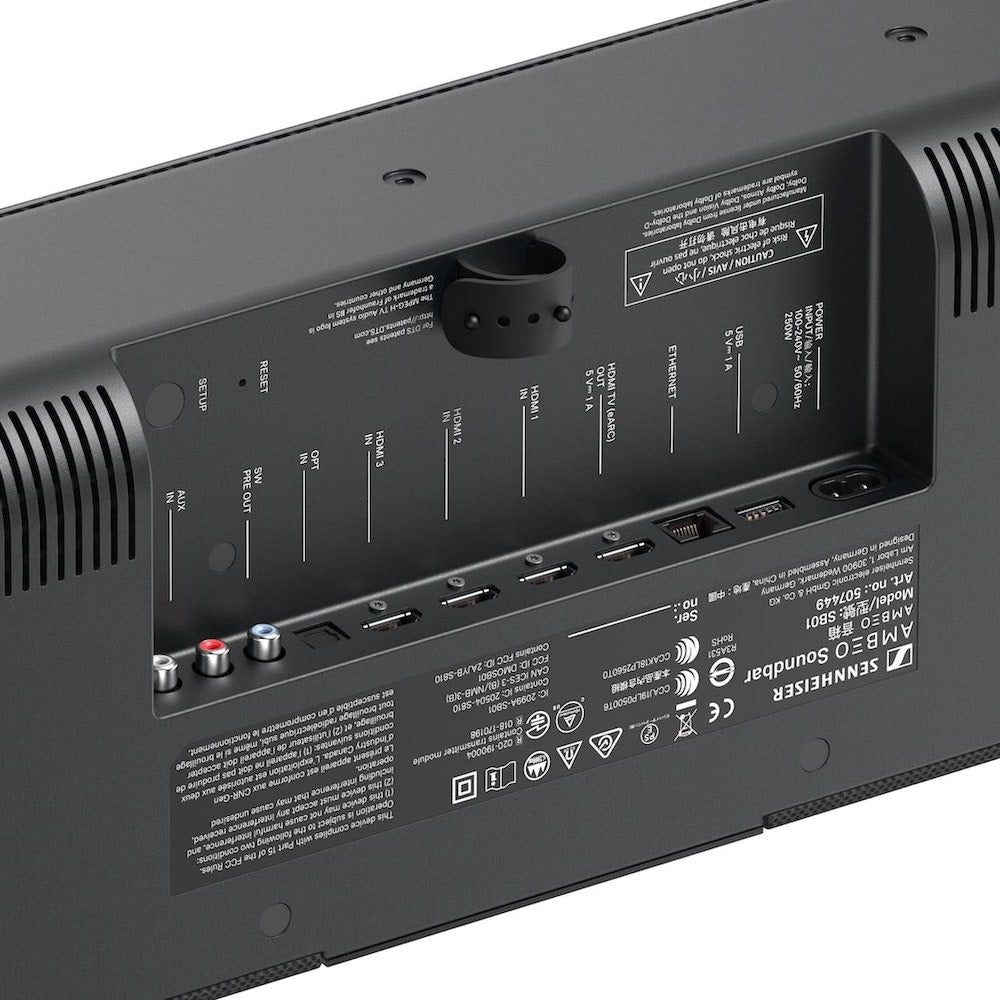

• Inputs

  3x HDMI In (v.2.0a), 1x HDMI Out (v.2.1 eARC)

  1x Optical In

  1x AUX In (Stereo RCA)

  1x USB (for Service/Update)

  1x Ethernet

  1x Subwoofer Pre-Out (Mono-RCA, max. 2V)

  1x Mic Input (2.5mm jack)

  Bluetooth

  Google Chromecast

  Media (UPnP)

• WiFi Standard

  IEEE 802.11 a/b/g/n/ac

• • Network Services

    Google Chromecast, UPnP

  • HDMI compatibility

    4K Video-passthrough

    Dolby Vision-passthrough compatible

  • Bluetooth Version

    4.2, class 1, BR/EDR, BLE Supported Bluetooth codecs: AAC, SBC

Supported audio formats/surround formats

• Supported audio/surround formats

  LPCM 2 Channel, LPCM 5.1 Channel, LPCM 7.1 Channel

  Dolby Digital, Dolby Digital Plus

  Dolby True HD

  Dolby Atmos - Dolby TrueHD, Dolby Atmos - Dolby Digital Plus

  DTS

  DTS-ES Discrete 6.1, DTS-ES Matrix 6.1

  DTS 96/24

  DTS-HD LBR

  DTS:X

  DSD, MPEG-H

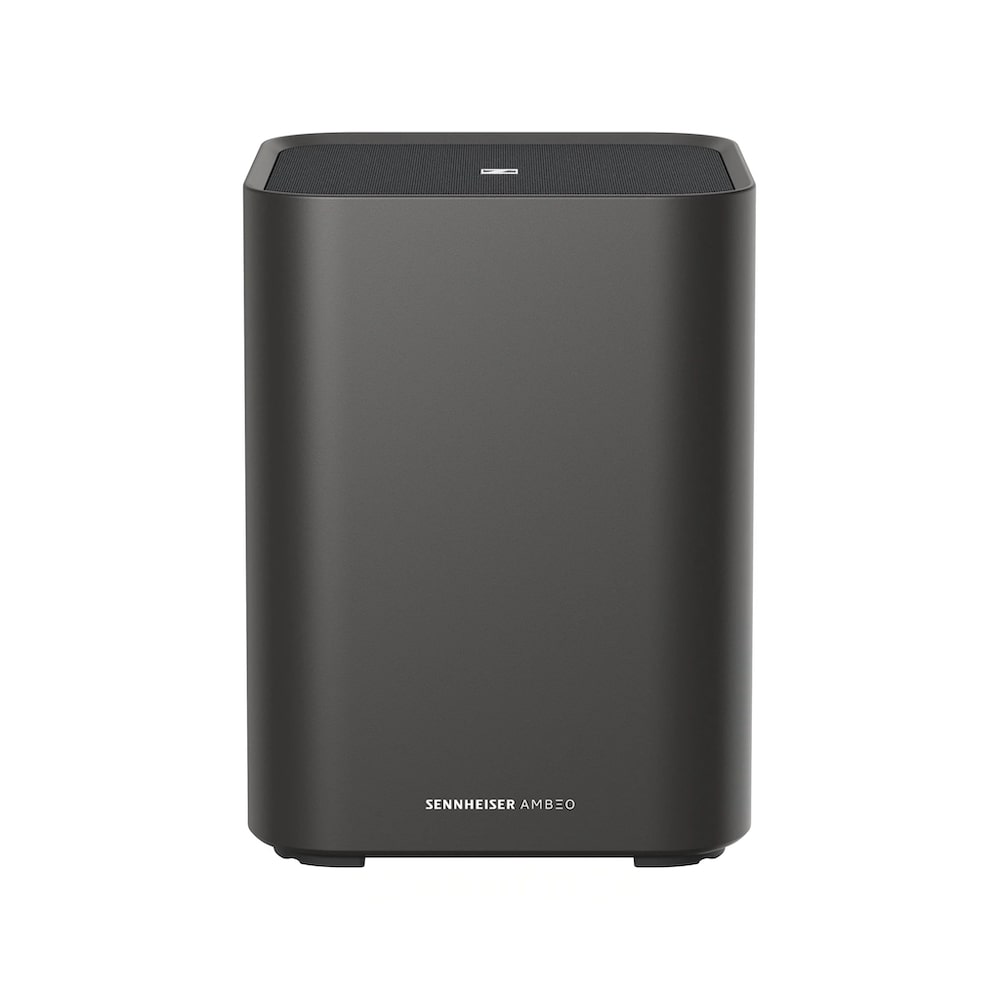

  Ambeo SW02 Subwoofer:




  Specifications:

  Amplifier

  1x class D amplifier

  Total audio power

  350W (RMS)

  Audio processing

  Dual Core SOC

  Voltage range

  100–240V ~50/60Hz

  Woofers

  1x Long throw 8" Cellulose Cone Driver

  Frequency response

  27Hz – 80Hz

  Audio input

  1x Mono RCA, max. 2 V

  Temperature range (operation)

  0 °C to +40 °C

  Relative humidity (operation)

  10 to 90%

  Dimensions (with feet)

  Approx. 27,4 x 36,9 x 27,4 cm

  Dimensions (without feet)

  Approx. 27,4 x 35,7 x 27,4 cm

  Weight

  8.2 kg

  Transmission frequency

  2,400 MHz to 2,483.5 MHz

  Bluetooth version

  5.2 Bluetooth Low Energy

  Bluetooth output power

  BT Sub: 10mW (max)

  Bluetooth Audio Codec

  BT Sub: LC3
