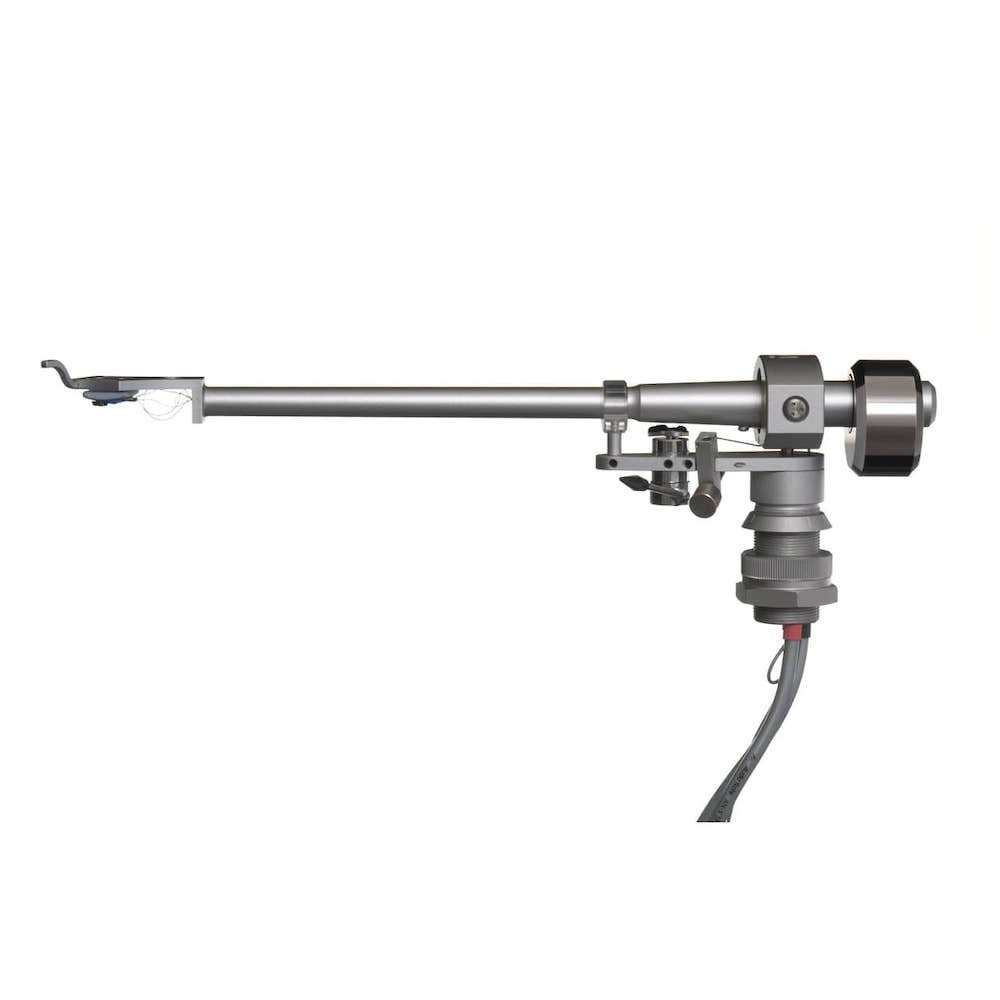

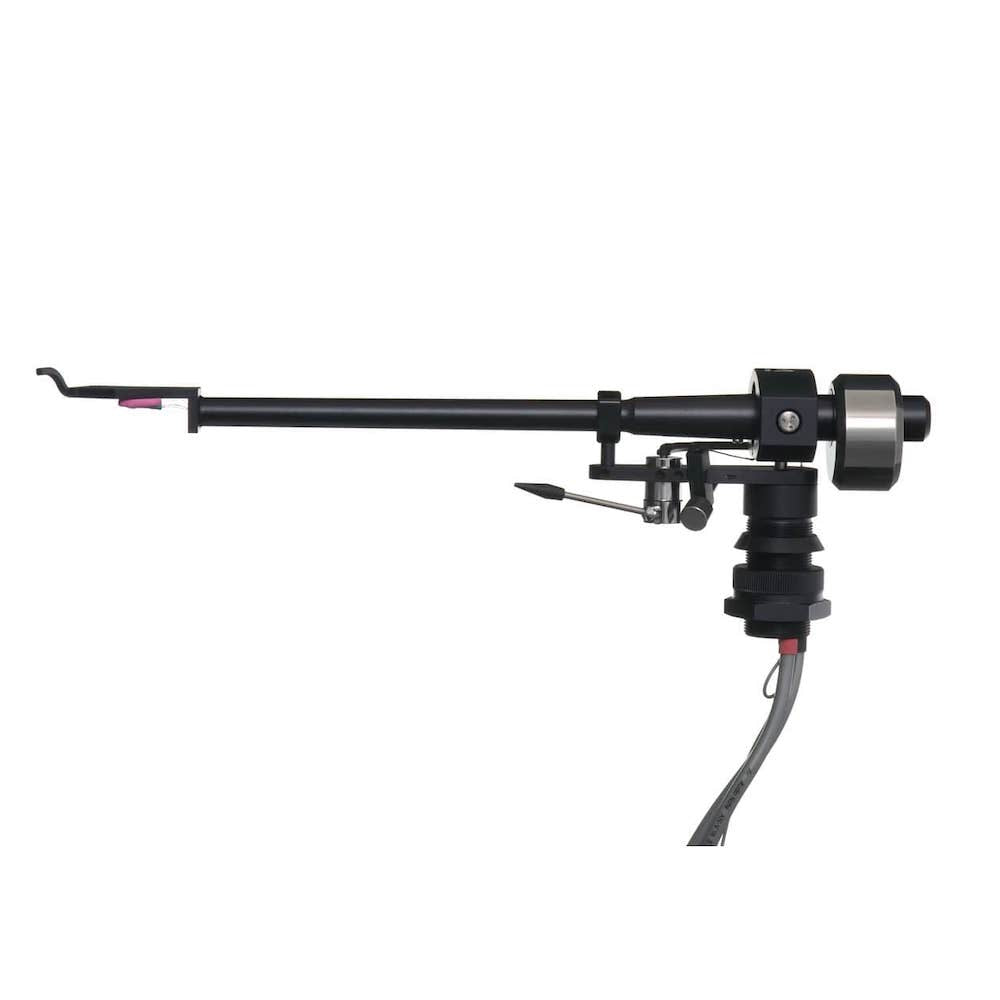

The new Audio Note MK II tone arms all share the same construction, based around an armtube that is machined from a single billet of high-grade aluminium. It is tapered both internally and externally, which reduces overall mass and also increases stiffness. The structural rigidity of this design allows the new arms to work with almost any design of cartridge, regardless of weight or compliance. From the lightest tracking moving magnet right up to our own IO models, the new arms allow the cartridge to track superbly, minimising noise and maximising music.
Bias adjustment is achieved via the classic 'falling weight' method. We found this to be by far the most easy to adjust and reliable method of bias adjustment.
The vertical and horizontal bearings are not the usual 'ball racer' type. Instead we use a rarely seen 'captured unipivot' arrangement, which provides significantly superior performance to any conventional arrangement.
As discussed above, we chose to stay with the mounting system used on our earlier generation of arms. But for the new models, we also introduced a method of adjusting the arm height via a threaded collar and locking nut, allowing the stylus rake angle to be precisely adjusted.
The Arm One/II uses our own high purity copper wire inside the armtube, and our own AN-A cable from the arm base to the phono plugs.
The Arm Two/II uses our own high purity Silver Litz wire inside the armtube, and our own AN-V silver cable from the arm base to the phono plugs.
The Arm Three/II uses our own high purity Silver Litz wire inside the armtube, and our own AN-Vx silver cable from the arm base to the phono plugs.
Single armboard hole, 23mm diameter
