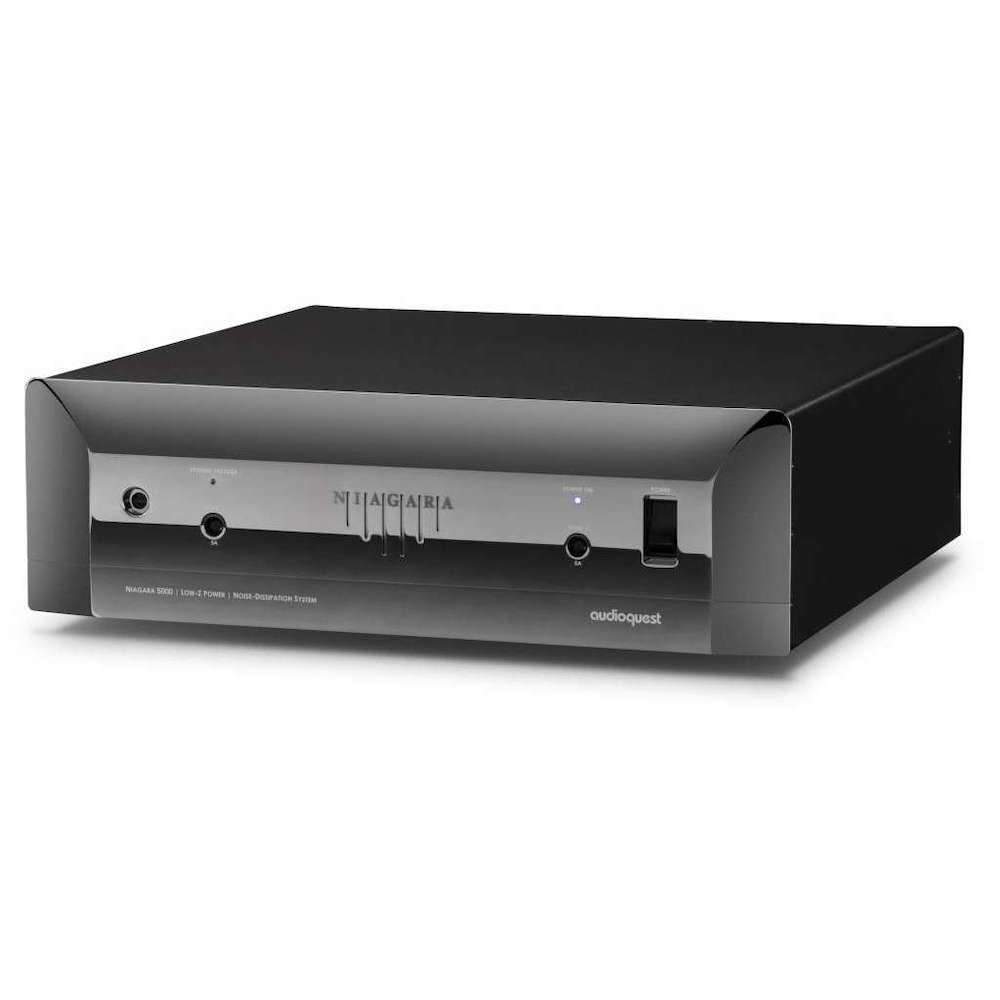

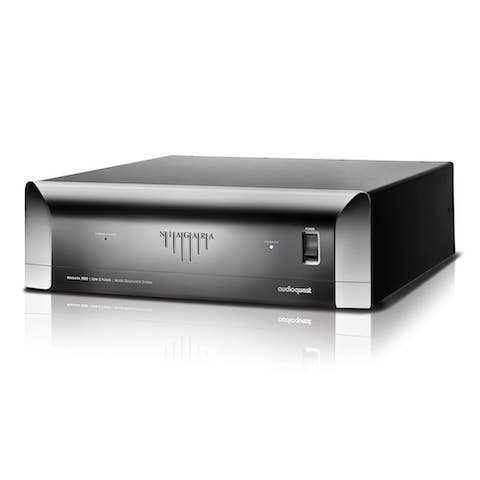

The Niagara 5000 features our patented AC Ground-Noise Dissipation, the widest bandwidth-linearized AC filter in the industry, and our unique passive/active Transient Power Correction Circuit. Boasting an instantaneous current reservoir of over 90 amps peak, the Niagara 5000 is specifically designed for today’s current-starved power amplifiers. Many AC power products featuring “high-current outlets” merely minimize current compression; the Niagara 5000 corrects it.
- Transient Power Correction: 90 amps peak. Provides a current reservoir for any power amplifier (up to 25mS)
- Level-X Ultra-Linear Noise-Dissipation Technology: More than 23 octaves differential-mode filtering (3kHz–1GHz in excess of 24dB reduction) and 16 octaves common-mode filtering (20kHz–100MHz in excess of 30dB reduction) with linear response, optimized for varying line and load impedance
- Patented Ground-Noise Dissipation. (All outlets): 6 banks of direction-controlled ground-noise dissipation
- Non-Sacrificial Surge Protection: Withstands multiple AC surges and spikes up to 6000V/3000A without sustaining damage—sonically non-invasive
- Maximum RMS Input Current: 20 Amps (RMS)

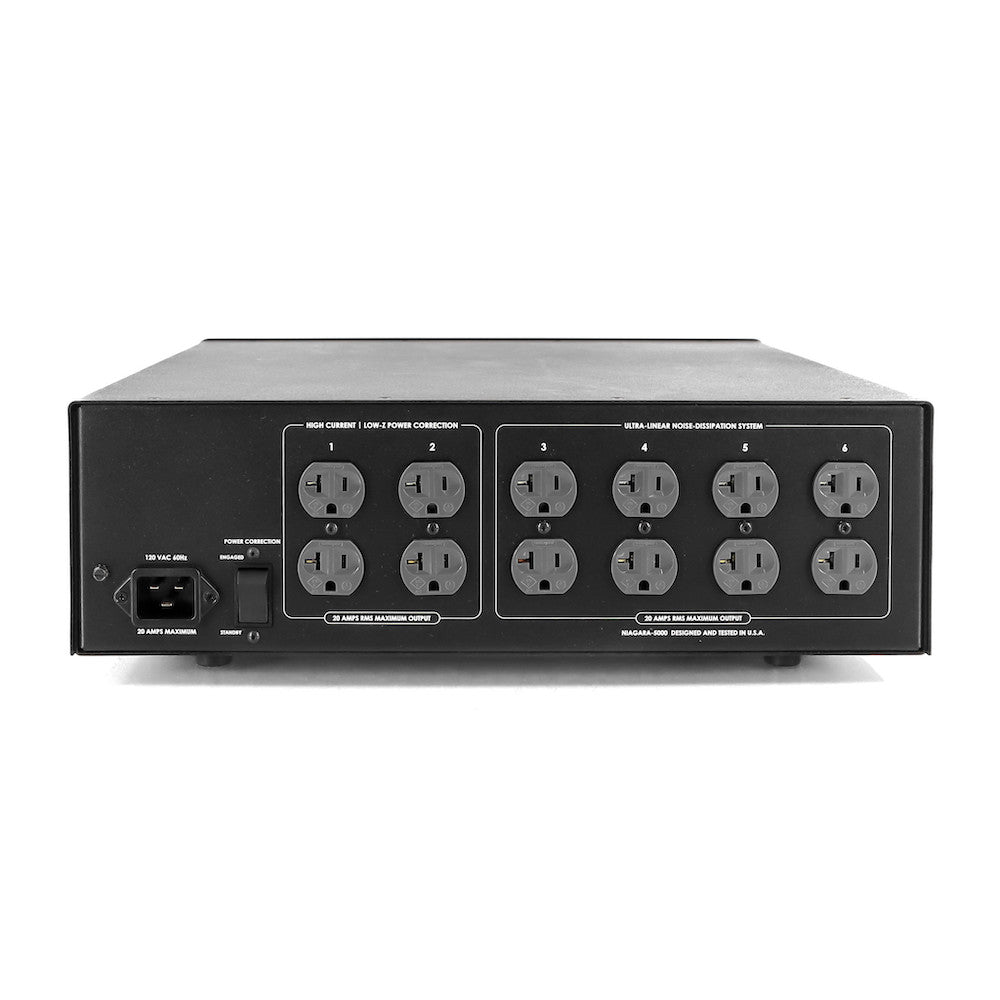

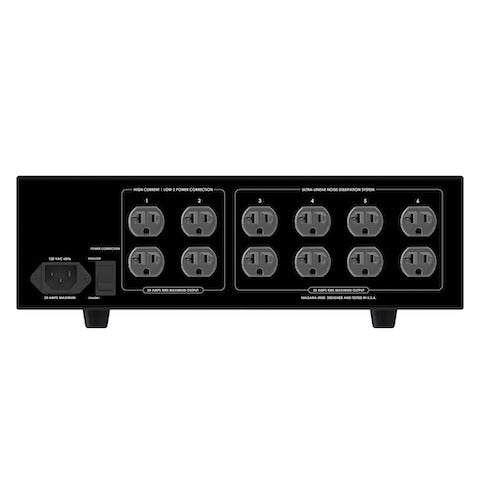

- Outlets: Source (8); High-Current (4)
- Dimensions: 17.5” W x 5.875” H (5.24” H without feet) x 17.2” D (3-RU Rack Mount Kits Optional)
- Weight: 38 lbs.
