CONSTRUCTION DETAILS |
Resonance–optimised body, bullet proof wood chassis in sandwich construction embedded between two aluminium plates |
SPEED RANGES |

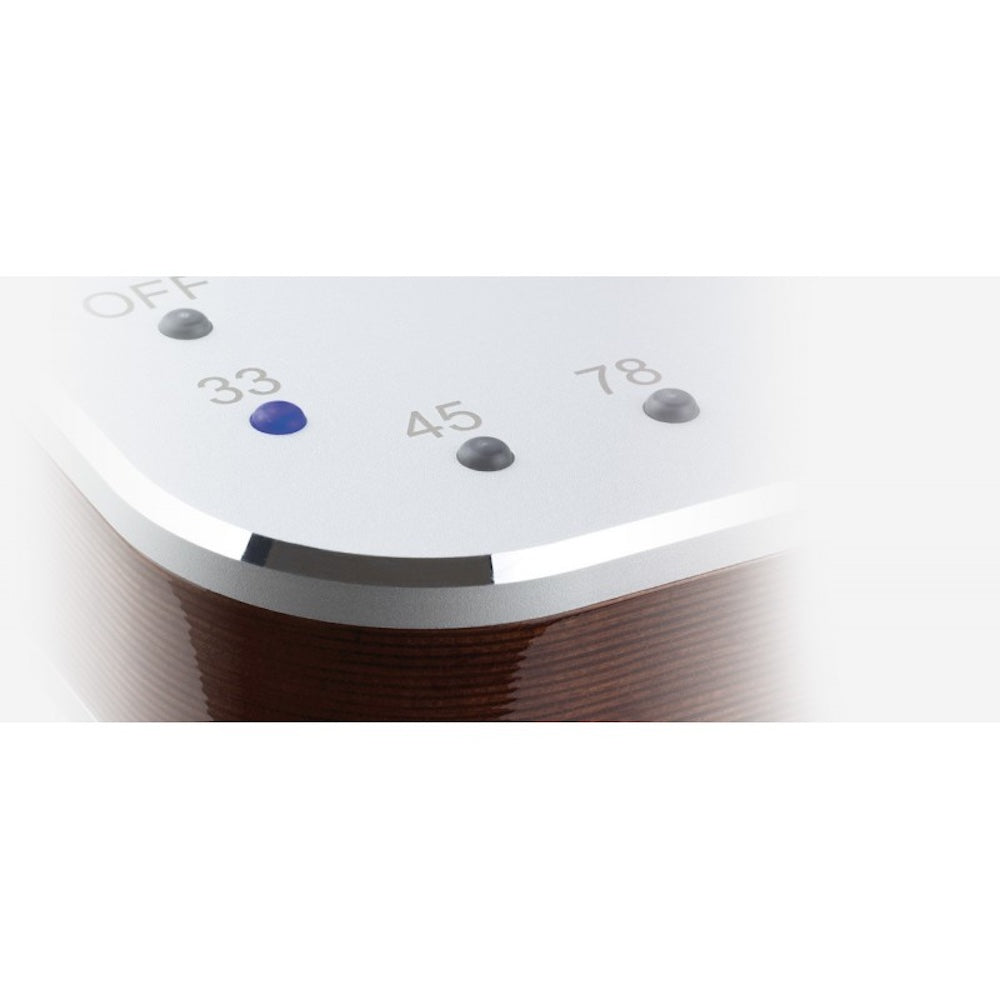

Electronic speed change 33 ⅓, 45 and 78 rpm |
DRIVE UNIT |
- High torque DC motor exclusively made for Clearaudio; Optical Spped Control (OSC) in real time through infrared sensor
- Decoupled DC motor in chassis; resonance damping device; flat belt-drive
|
BEARING |
Cut and polished ceramic shaft in a sintered bronze bushing, Clearaudio patented ceramic magnetic bearing (CMB) |
PLATTER |
Synthetic material, CNC-precision milled surface, 40mm thickness / 1.57 inches Aluminium subplatter |
SPEED ACCURACY (MEASURED) |
± 0.03 % |
POWER CONSUMPTION |
Max. consumption: 8.6 Watt Consumption in operation: 2.5 Watt Standby mode: 2.5 Watt Off mode: 0.0 Watt |
TOTAL WEIGHT |
Approx. 13.5 kg |
DIMENSIONS (W/D/H in inches)
|
Approx. 16.54 x 13.78 x 5.31 (without tonearm) |
DIMENSIONS (W/D/H in mm)
|
Approx. 420 x 350 x 135 (without tonearm) |
WARRANTY |
2 years (5 years*) * Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase.
|
