Exposure VXN Phono Stage With External Power Supply

THD @ 1 kHz, ref 500mV output

Available only in Black

NOTE: Can ONLY be used with the VXN External Power Supply. INCLUDED.

Power Consumption : Dimensions (HxWxD) : Net Weight :

Gross Weight :

500mV 7.8V @ 1kHz 50 Ohms

<0.005%
30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz

5mV input for 500mV output, 40dB gain setting ref 1kHz & 500mV out (A weighted) : >82dB

500uV input for 500mV output, 60dB gain setting

Features

• All audio circuits using discrete transistors only - no ICs in the signal path

• Very low noise power supply regulators used with multiple stages of regulation

• High quality resistors & capacitors used in signal path

• Very high quality Polypropylene capacitors used in critical areas of the RIAA equalisation

• Separate MM & MC inputs selectable on the front panel

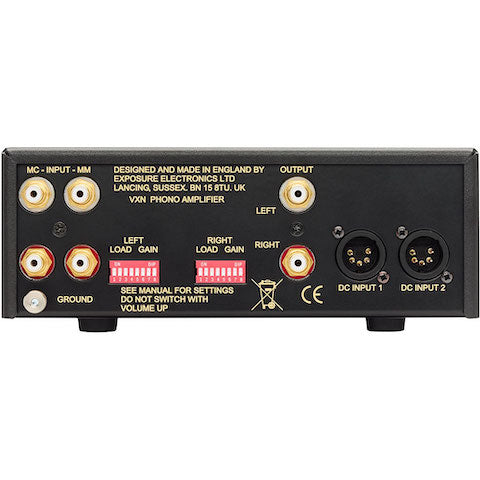

• Adjustable loading & gain switches on the back panel

• High quality all aluminium case work and extruded front panel

• Three year guarantee • Available in black only

Outputs

• Nominal output (depends on gain setting): 500mV
• Maximum Output: 7.8V @ 1kHz
• Output Impedance: 50 Ohms
• THD @ 1 kHz, ref 500mV output: <0.005%
• Frequency Response: 30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz

Moving Magnet Input

• Sensitivity: 5mV input for 500mV output, 40dB gain setting
• Signal to Noise Ratio: ref 1kHz & 500mV out (A weighted) : >82dB

Moving Coil Input

• Sensitivity: 500uV input for 500mV output, 60dB gain setting
• Signal to Noise Ratio: ref 1kHz & 500mV out (A weighted) : >72dB

General
For use with VXN Power Supply only:

• Power Consumption: <10W
• Dimensions (HxWxD): 89mm x 218mm x 348mm
• Net Weight: 2kg
• Gross Weight: 3kg
