Ferrum Audio ERCO Gen 2 Dac Headphone Amplifier IN STOCK ON SALE
Ferrum Audio ERCO Gen 2 Dac Headphone Amplifier IN STOCK ON SALE
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
New. One Only. Please Give Us A Quick Call For Pricing.
The new ERCO GEN 2 features full reprogramming of ERCO’s software in combination with crucial changes in the analog circuitry, we are introducing a newer and better ERCO. The ERCO Gen 2 will bring our entry-level DAC one step closer to the performance levels of WANDLA, our flagship converter.
The I/V converter stage has better overall performance and SERCE’s DSP engine provides oversampling using DDF prefered HQ Apodizing digital filter, which get the most out of the DAC chip almost emulating WANDLA performance.. Last but not least maximum resolution is now PCM 768kHz and DSD512.
Ultra-wideband ICs fine tuned for audio use to achieve the best possible analog quality. The signal path is truly balanced from early D/A stage and becomes truly balanced using the RCA inputs. Perfect mix of flagship Ferrum technology combined with high grade in house developed Digital to Analog conversion. Choose from three digital and one analog input. The whole design remains focussed on a balanced and very transparent sound signature, making listening fatigue something of the past.

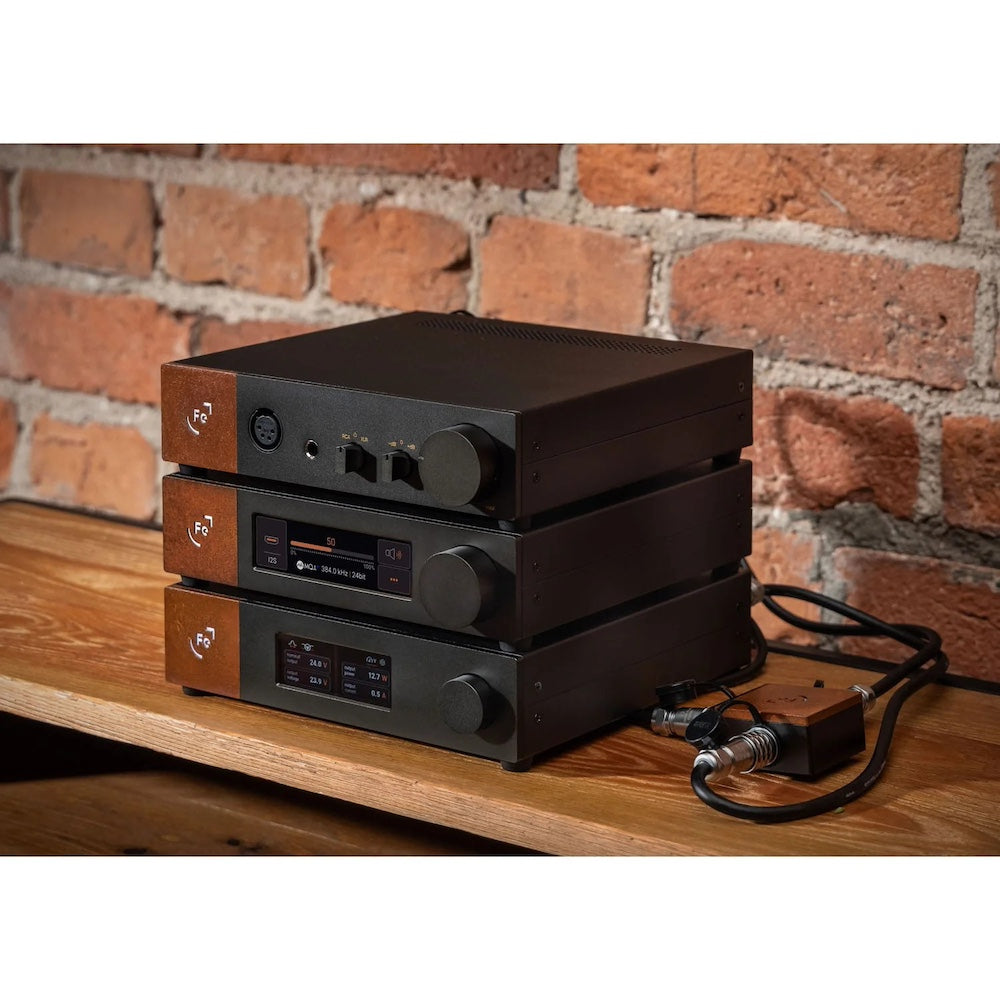

The ERCO Gen 2 performs very, very good right out of the box. But ERCO 2 is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with ERCO 2
Specifications:
- Headphone output gain: balanced -5.8 dB, +6 dB, +17.8 dB; single ended -11.8 dB, 0 dB, +11.8 dB
- Operation: fully balanced, proprietary IC power amp
- Power inputs: 5.5/2.5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL)
-
Analog inputs: RCA (Red book level 2V RMS recommended, PRO level supported)
- Digital inputs: USB-C (MQA, up to PCM 32-bit/768kHz, DSD512, DoP256); S/PDIF coaxial (MQA, up to PCM 24-bit/192 kHz, DoP64); S/PDIF optical (MQA, up to PCM 24-bit/96 kHz guaranteed, should work up to PCM 24-bit/192 kHz and DoP64 – depends of user’s optical cable and transmitter)
- DAC chip: ESS Sabre ES9028PRO
- PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 705.6 / 768 kHz
- DSD sample rates: 2.8224 / 3.072 / 5.6448 / 6.144 / 11.2896 / 12.288 / 22.5792 / 24.576 MHz
- DAC resolution: PCM up to 768k@32bit; DSD up to 512 (22.6 MHz / 24.6 MHz)
- MQA: decoder and renderer (USB, OPTO and COAX inputs)
- Headphone jack outputs: balanced 4.4 mm (TRRRS); unbalanced 6.35 mm (TRS)
-
Line outputs: balanced XLR; unbalanced RCA (both Red book level: 4V RMS bal./2V RMS unbal.)
- Volume control: analogue with bypass option (bypass for line outputs only)
- Frequency response: 10 Hz – 30 kHz (+/- 0.05 dB); 10 Hz – 200 kHz (+/- 1 dB)
- Output power unbalanced: 300 mW into 300 Ω; 1.7 W into 50 Ω
- Output power balanced: 1.2 W into 300 Ω; 6.1 W into 50 Ω
- THD on balanced output: < 0.00018% / -115 dB, 1 mW into 16 Ω; < 0.00018% / -115 dB, 100 mW into 16 Ω
- THD on unbalanced output: < 0.00032% / -110 dB, 1 mW into 16 Ω; < 0.00057% / -105 dB, 100 mW into 16 Ω
- Dynamic range analog: 129 dB (A-weighted)
- Dynamic range digital: 117 dB (A-weighted)
- Input impedance: 47 kΩ
- Output impedance unbalanced: 22 Ω on pre-amp
- Output impedance balanced: 44 Ω on pre-amp
- Output impedance Headphones: < 0.3 Ω
- Power consumption: idle <15 W
-
Power adapter: 100-240 VAC to 22-30 VDC
