Description

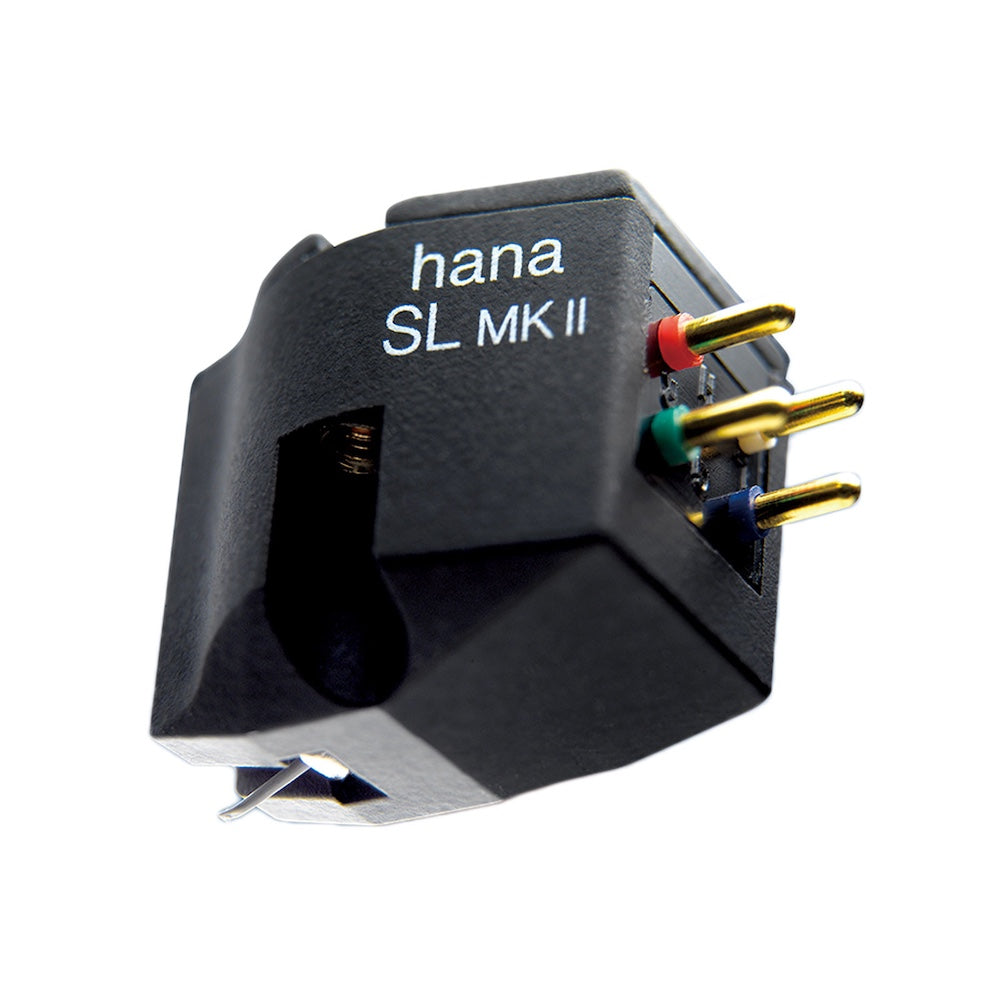

The Hana SL is distinguished by its black body and a Shibata stylus expertly mounted to its aluminum cantilever. The Hana SL features tighter channel balance, greater channel separation, and improved high-frequency extension.

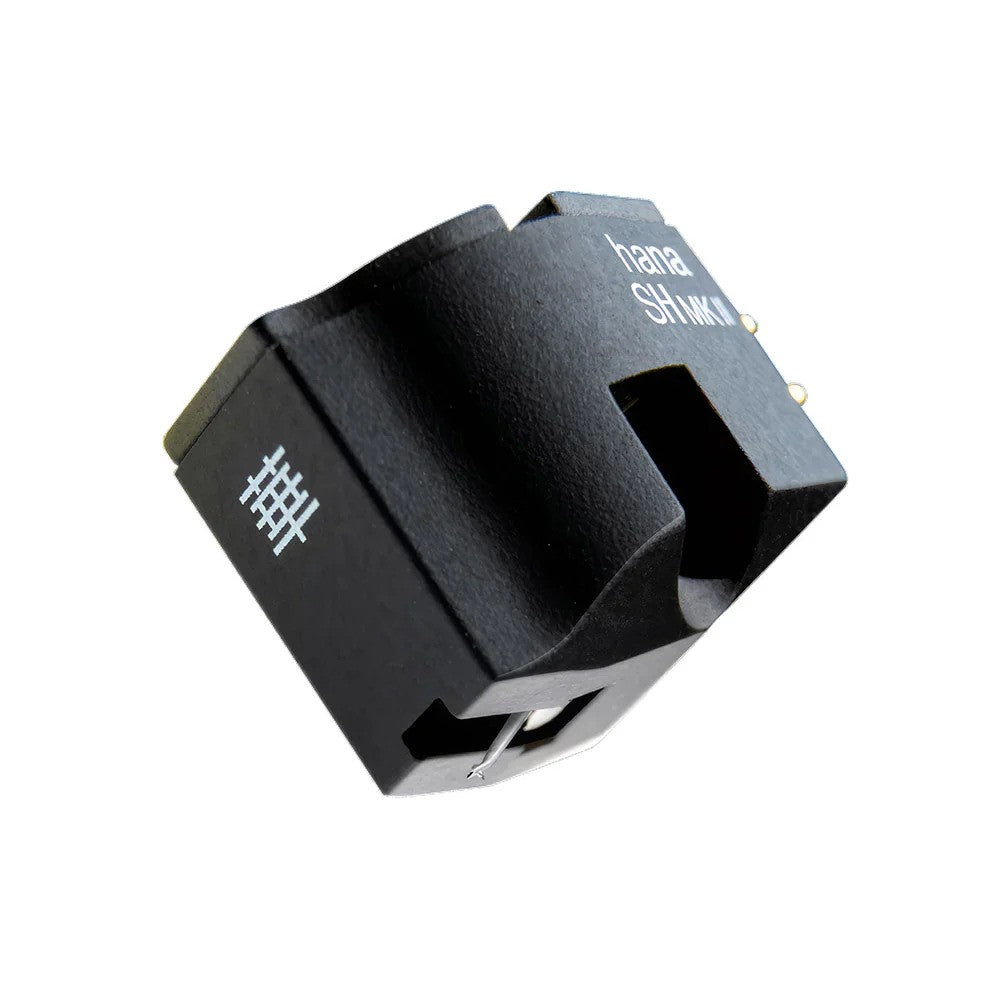

The Hana SH combines high output with high resolution, courtesy of its special coil design and Shibata stylus. Compatible with standard MM phono stages, a high-output MC provides dynamics, drive, and excellent stereo imaging.

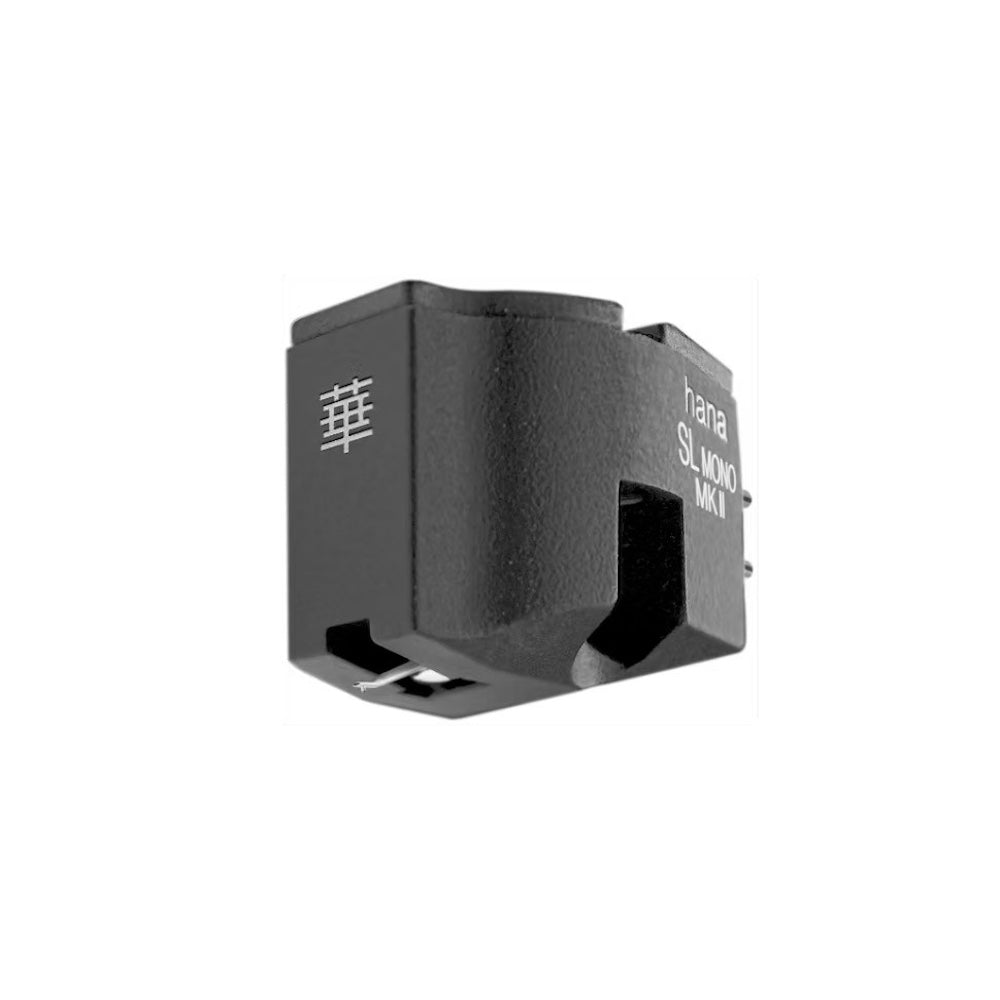

The Hana SL Mono represents the most musical and affordable means to enjoy both the classic records of the Mono Era as well as today’s mono re-issues. Embodying the highly acclaimed sound of the Hana SL, the SL Mono, with its special generator and Shibata stylus, optimizes playback of mono LPs. Whether mounted to a second tonearm, Universal headshell, or dedicated mono turntable, the SL Mono lets you get the most from Basie, Ellington, Beatles, Hendrix, the Stones, and all great mono recordings.
Specifications SL:
| Stylus | Shibata |
|---|---|
| Cantilever | Aluminum |
| Output Level | 0.5mv/1kHz |
| Output Balance | <1.5dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 28dB/1kHz |
| Frequency Response | 15-32,000Hz |
| Impedance | 30Ω/1kHz |
| Suggested Load Impedance | >400kΩ |
| Cartridge Weight | 5g |
| Body Color | Black |
| Warranty | 2 years |
Specifications SH:
| Stylus | Shibata |
|---|---|
| Cantilever | Aluminum |
| Output Level | 2mv/1kHz |
| Output Balance | <1.5dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 28dB/1kHz |
| Frequency Response | 15-32,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | 47kΩ |
| Cartridge Weight | 5g |
| Body Color | Black |
| Warranty | 2 years |
Specifications SL MONO:
| Stylus | Shibata |
|---|---|
| Stylus Shape | 0.27 x 1.57mil |
| Cantilever | Aluminum |
| Output Level | 0.4mv/1kHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 28dB/1kHz |
| Frequency Response | 15-32,000Hz |
| Impedance | 23Ω/1kHz |
| Suggested Load Impedance | >200kΩ |
| Cartridge Weight | 5g |
| Body Color | Black |
| Warranty | 2 years |
