JL Audio Pavilion Outdoor Speakers
JL Audio Pavilion Outdoor Speakers
JL Audio does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you.
Couldn't load pickup availability
No Discount Possible on this Product
Affirm Cannot Be Used With This Product
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description

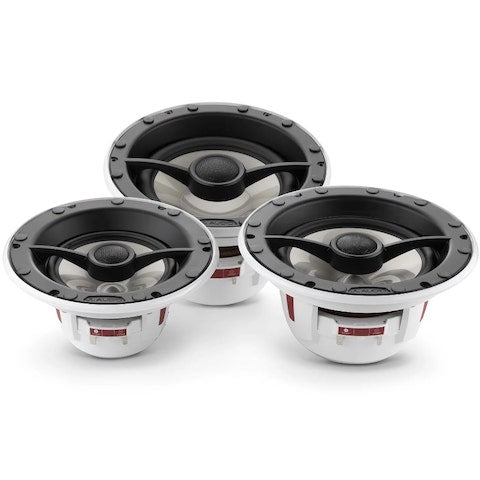

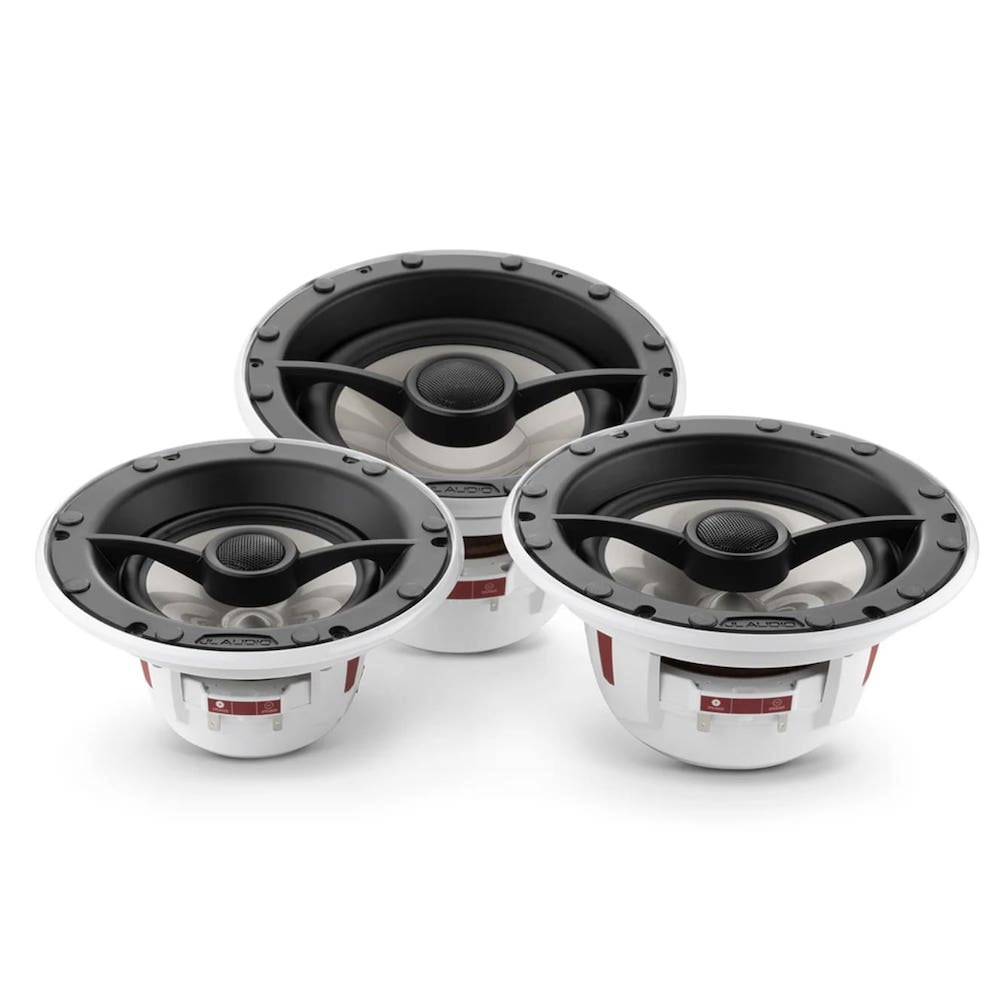

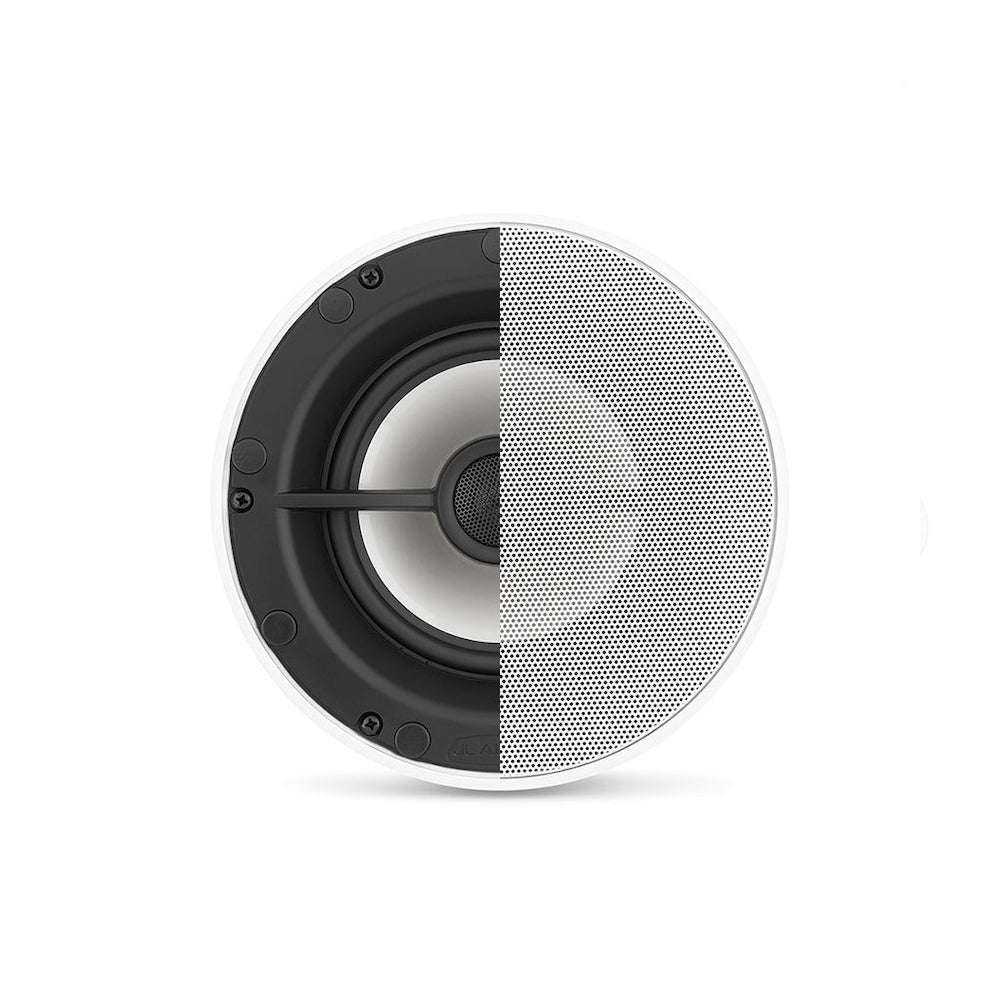

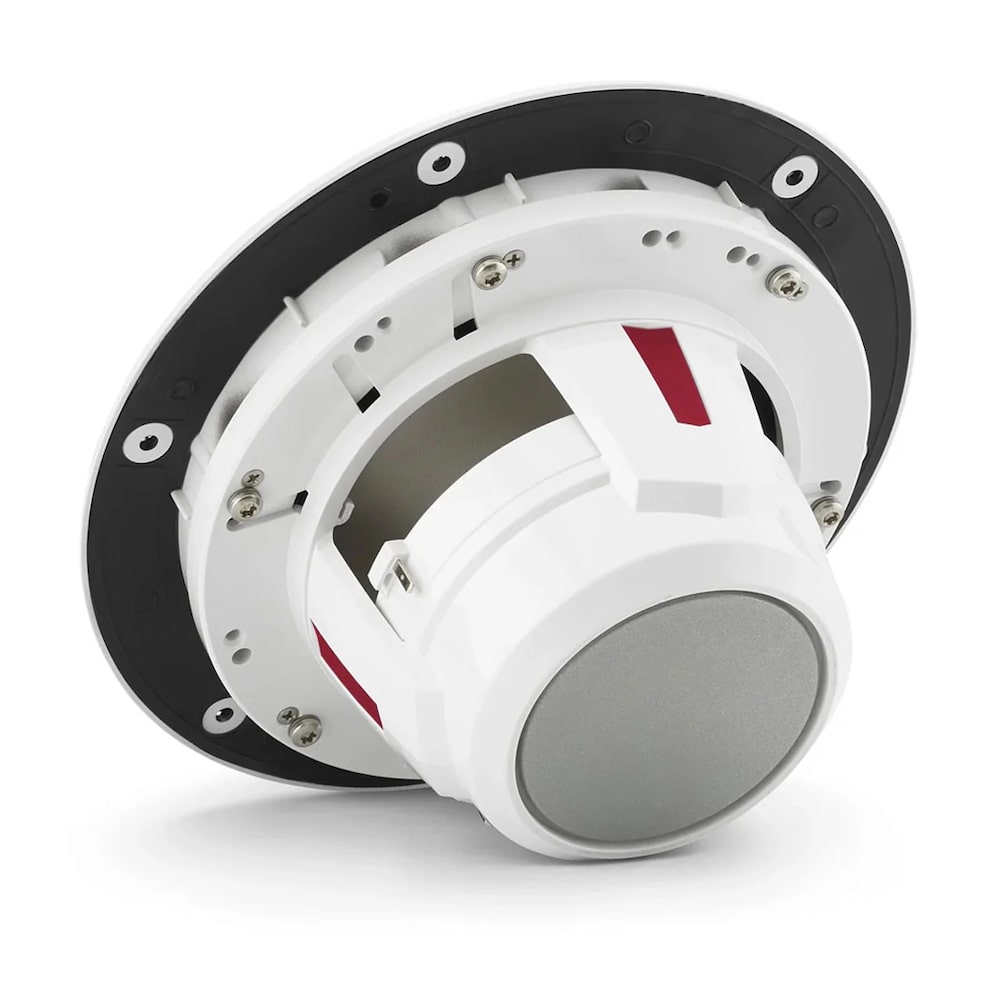

The JL Audio Pavilion Outdoor Speakers are in-ceiling speakers engineered to deliver remarkable audio performance and durability in outdoor residential applications. Each model features a low-profile mounting bezel with an integrated tweeter bridge and a flush-mount grille for a discreet visual appearance. All Pavilion speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials for ease of installation. The fine mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, guarded against the elements. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Specifications:
|
|

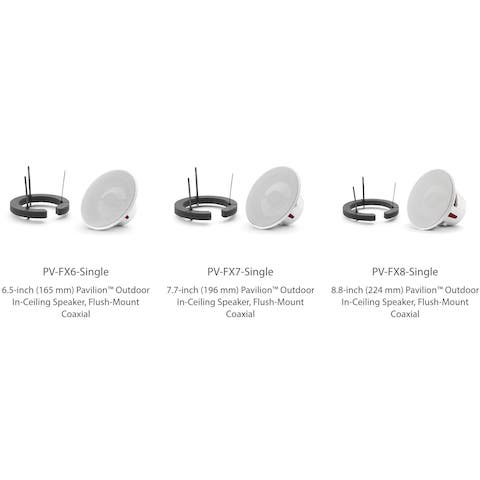

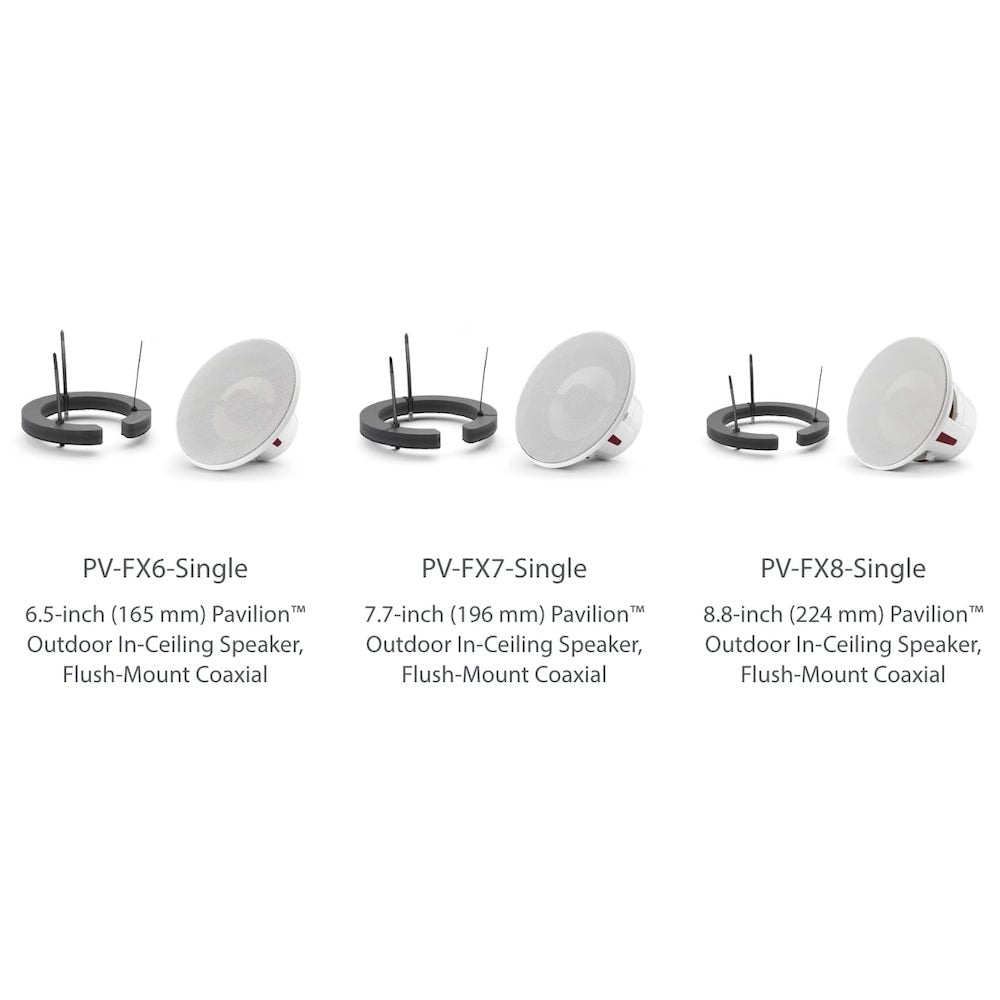

PV-FX6 |
PV-FX7 |
PV-FX8 |
|
Nominal Diameter |
6.50 in./165 mm |
7.70 in./196 mm |
8.80 in./224 mm |
|
Outer Diameter |
8.34 in./212mm |
9.13 in./232 mm |
10.25 in./260 mm |
|
Bolt Hole Circle |
7.39 in./188 mm |
8.18 in./208 mm |
9.27 in./235 mm |
|
Frontal Grille Protrusion |
0.37 in./9 mm |
0.38 in./10 mm |
0.48 in./12 mm |
|
Mounting Hole Diameter |
6.75 in./172mm |
7.50in./191 mm |
8.625 in./219mm |
|
Mounting Depth |
3.87 in./98 mm |
4.26 in./108 mm |
6.30 in./160 mm |
|
Tweeter Size |
0.80 in./20 mm |
1.0 in./25 mm |
1.25 in./32mm |
|
Mounting Application |
Infinite Baffle |
Infinite Baffle |
Infinite Baffle |
|
Continuous Power Handling (RMS Method) |
60 Watts/channel |
80 Watts/channel |
100 Watts/channel |
|
Recommended Amplifier Power |
30-120 Watts/channel |
40-160 Watts/channel |
50-200 Watts/channel |
|
Frequency Response |
55 Hz-25 KHz (+/- 3 dB) |
45 Hz-25 KHz (+/- 3 dB) |
38 Hz-20 KHz (+/- 3 dB) |
|
Efficiency @ 1W/1m |
89.5 dB |
91.0 dB |
90.5 dB |
|
One-Way, Linear Excursion (Xmax) |
N/A |
N/A |
N/A |
|
Nominal Impedance |
4 ohms |
4 ohms |
4 ohms |
