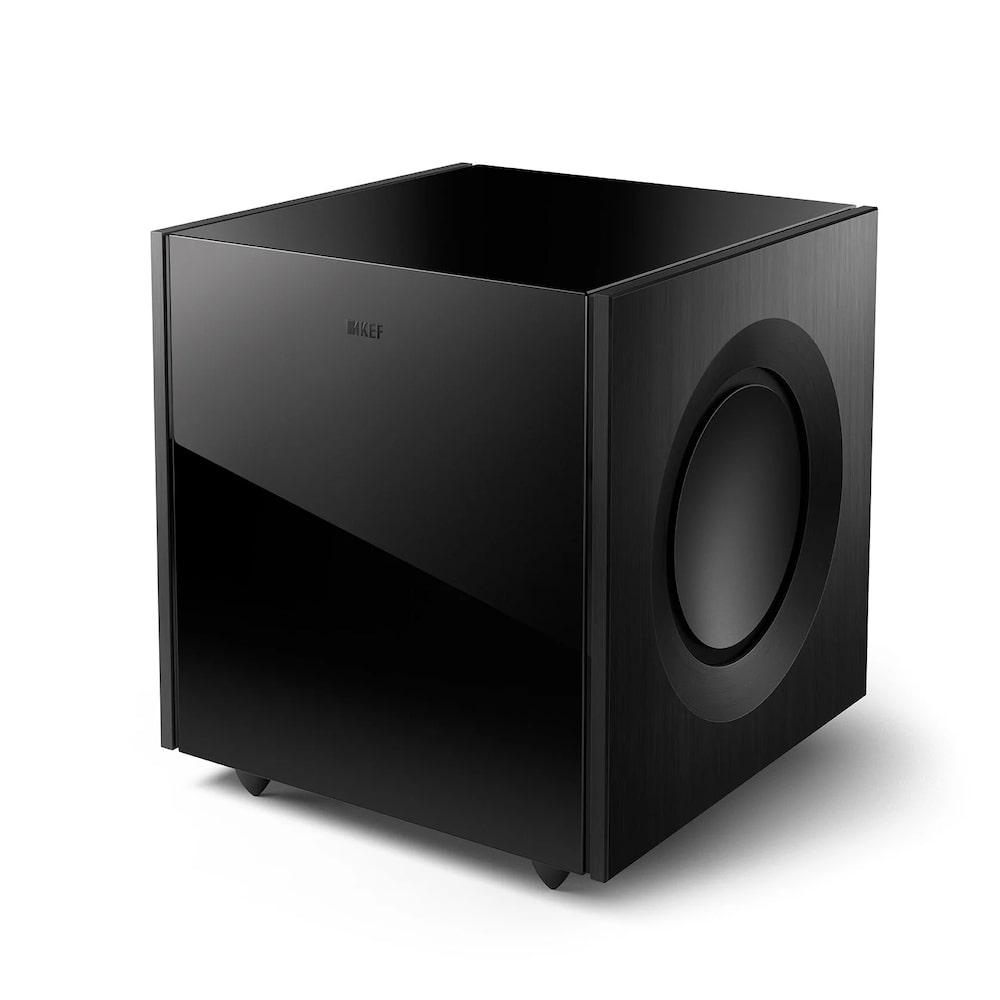

| Model |
REFERENCE 8b |
| Design |
Force cancelled closed box |
| LF Drive unit |
2 x 225 mm (9in.) |
| Frequency range at 90dB output in free-space mode (-6dB) |
18Hz |
| Frequency response at 90dB output in free-space mode (±3dB) |
24Hz |
| Amplifier |
2 x 500 W Class D with switched mode power supply and DSP based control section |
Maximum output
(peak sound pressure level at 1m 50Hz) |
110dB |
| Low pass filter variable |
Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct
LFE mode: 350Hz, 18dB/oct |

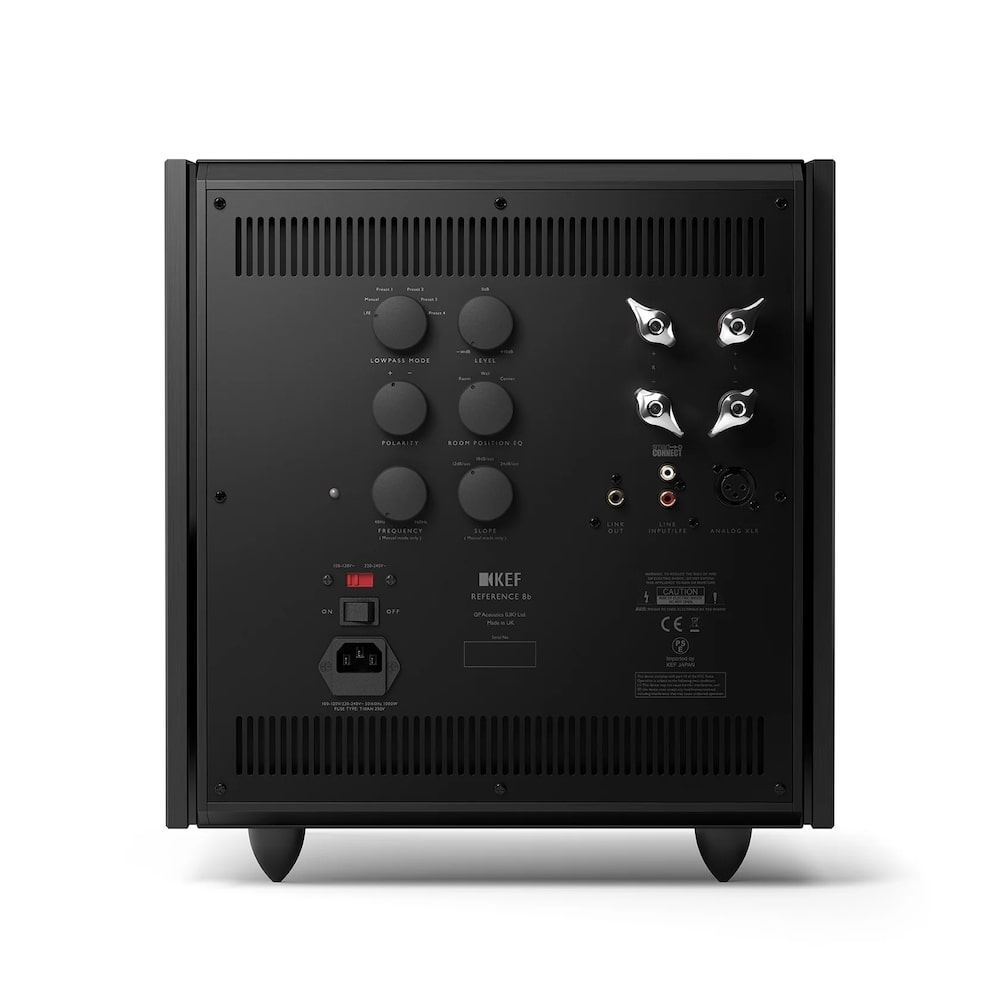

| Inputs |
RCA phono sockets
Analog XLR socket
Speaker level inputs |
| Link out |
RCA phono socket |
| Net internal volume |
23L |
| Weight |
35kg (77.2lbs.) |
| Dimensions (H x W x D) |
398 x 365 x 429 mm
(15.7 x 14.4 x 16.8 in.) |
| Power requirements |
100V - 120V / 220V - 240V ~50/60Hz |
| Power consumption |
1000W |
| Finishes |
Deep Piano Black |
