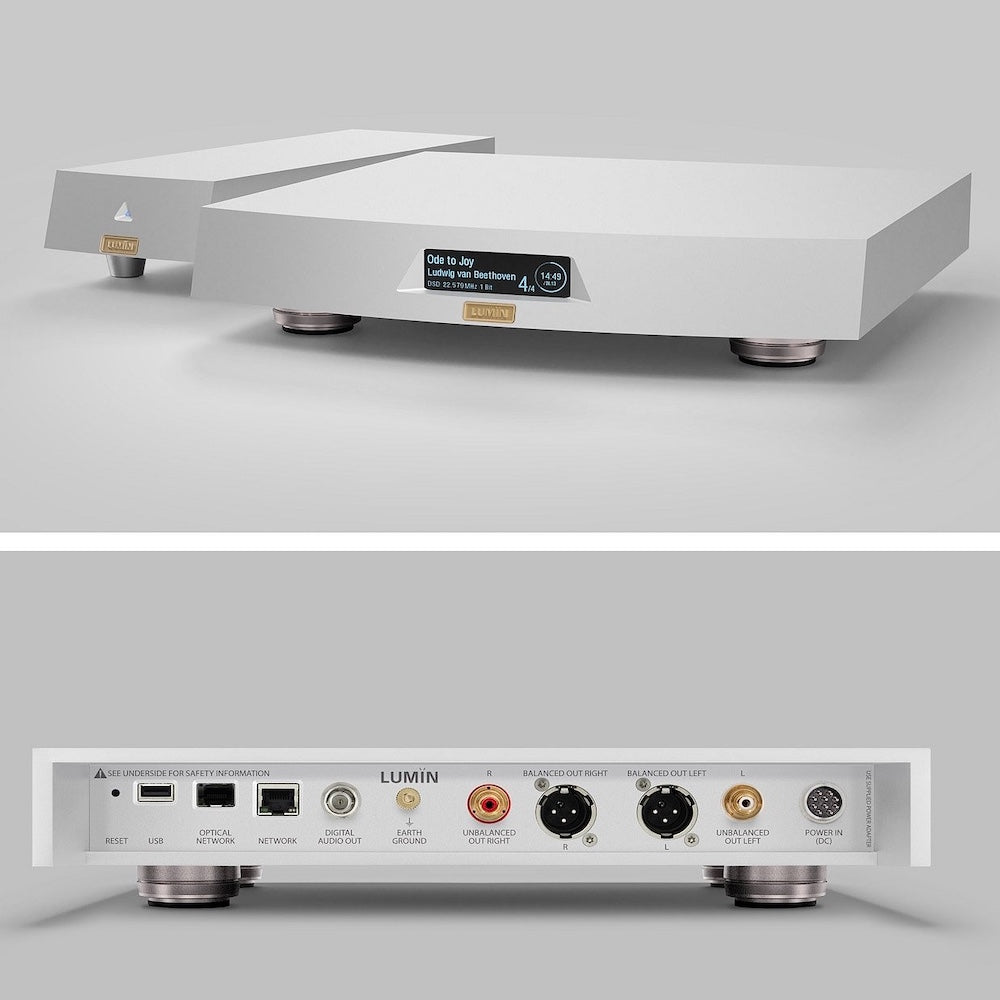

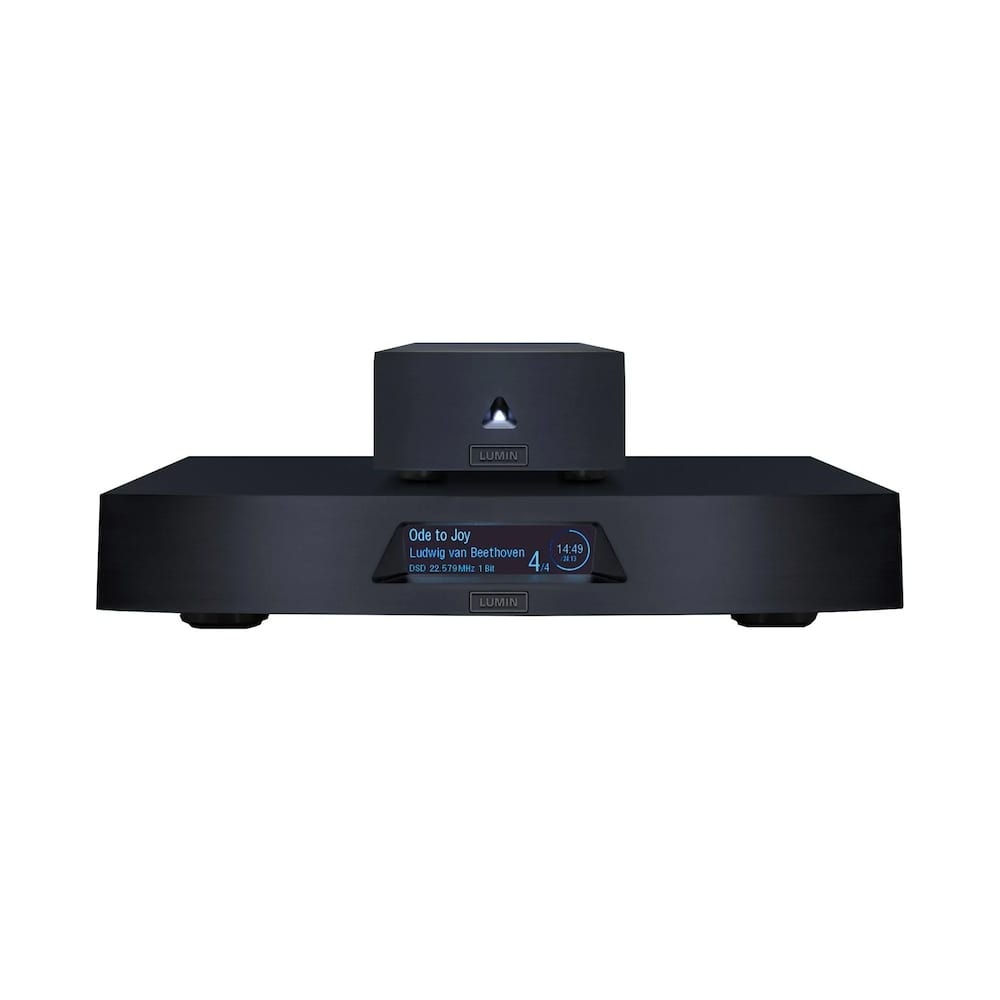

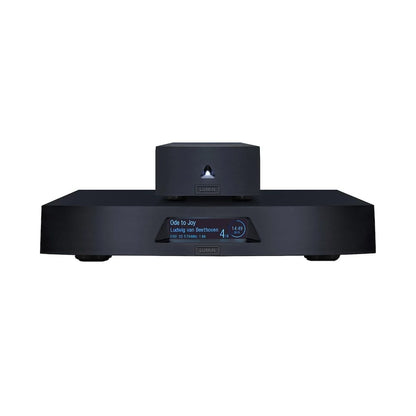

Lumin X2 Streamer Dac Preamp COMING SOON
Lumin X2 Streamer Dac Preamp COMING SOON
Pre-Order. Initial Stock Due In End Of November.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
Pre-Order. Initial Stock Due In End Of November.
The new Lumin X2 features a newly engineered fully discrete DAC architecture developed through extensive in-house research. This custom-built converter utilizes individually selected components to optimize every stage of the digital-to-analogue conversion process, including circuit design, power management, timing precision, and signal fidelity. Engineered specifically to complement LUMIN's proprietary streaming platform, this foundation delivers the refined performance that defines our flagship audio solution.
The new Lumin X2 is designed from the ground up. Each stage of the DAC has been optimized for component placement and routing to minimize interference and preserve channel separation. Custom circuitry and refined power management reduce electrical noise and interference, allowing the DAC to operate within a highly controlled and stable environment. The discrete architecture enables direct implementation of clocking and conversion stages without intermediate frequency dividers, supporting precise timing and reduced jitter throughout the signal path.
Features:
- The latest LUMIN processing architecture delivers all the latest features
- Custom new dual LUMIN Discrete DAC
- All-new Output Buffer
- Native DSD512 & 32-bit PCM768 playback
- Femto Clock System with precision FPGA distribution
- Dual Mono dual stage Power Supply for analogue circuitry
- SFP socket providing Optical Network support and built-in Network Switch
- USB Digital Audio Output supports Native DSD512
- PCM & DSD upsampling up to DSD256
- Leedh Processing lossless volume control
- External Dual-Toroidal Power Supply
SPECIFICATIONS:
-
DSD SUPPORT:
- Up to DSD512 22.6MHz, 1-bit
-
PCM SUPPORT:
- Up to 768kHz, 16–32-bit, Stereo
-
ANALOG OUTPUT STAGE:
- LUMIN Discrete DAC
- Fully balanced layout with high-quality components
- Output connectors coupled with dual LUNDAHL LL7401 output transformers
- Femto Clock System with precision FPGA distribution
-
UPSAMPLING RATES & BIT DEPTHS:
- DSD256 upsampling option for all files
- PCM 384kHz upsampling option for all files
-
DIGITAL OUTPUT STAGE:
-
USB:
- Native DSD512 support
- PCM 44.1–768kHz, 16–32-bit, Stereo
-
BNC SPDIF:
- PCM 44.1kHz–192kHz, 16–24-bit
- DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
-
-
OPTICAL NETWORK:
- Industry-standard Gigabit SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
POWER SUPPLY:
- External solid billet cnc dual-toroidal
- Separate digital & analogue circuitry
- Low-noise linear regulator
- 9-pin Output Connector
-
PHYSICAL:
-
FINISH:
- Black anodised aluminium (with matching PSU)
- Raw anodised aluminium (with matching PSU)
FEET
- IsoAcoustics isolating feet on main chassis
LUMIN (SOLID ALUMINIUM CHASSIS):
- 350mm (W), 345mm (D), 77mm (H), 8kg
-
PSU (SOLID ALUMINIUM CHASSIS):
- 106mm (W), 334mm (D), 77mm (H), 4kg
-
