Combining the BW-2 with our MH-2 satellite speakers—along with the TDAI-2170 with built-in RoomPerfect™ and digital crossovers—will produce a full range system that simply outperforms anything in or above its price range.
The logistics are incredibly simple. Just hook up the MH-2´s and one or two BW-2´s to the TDAI-2170, switch the BW-2 to the “bypass” function, and select the preconfigured speaker setup in the setup menu of the TDAI Integrated Amplifiers. Finish it off by running RoomPerfect™. Then sit back and enjoy.
Specifications:
Description:
Active high bandwidth subwoofer
Amplifier:
400 watts, Class-D type
Driver:
10” long throw driver (+/- 15mm/0.6 in), Ø 50mm / 2in voice coil, Cone Material: Deep Anodized aluminum, 86oz / 2.4kg vented magnet
Frequency Response:
25 to 200 Hz (using line in input), 25 to 800 Hz (using bypass input)
Sensitivity:
91dB (2.83V/1 m) sensitivity
Controls:
Bypass switch, Phase control (0 to -180º), Level control, X-over frequency (60 to 200 Hz), Auto on / always on
Connections:
RCA / analog mono input
Dimensions (H x W x D):
44 x 32.5 x 17.2 cm, 17.3 x 12.8 x 6.8 inches
Finish:
Matte black or matte white

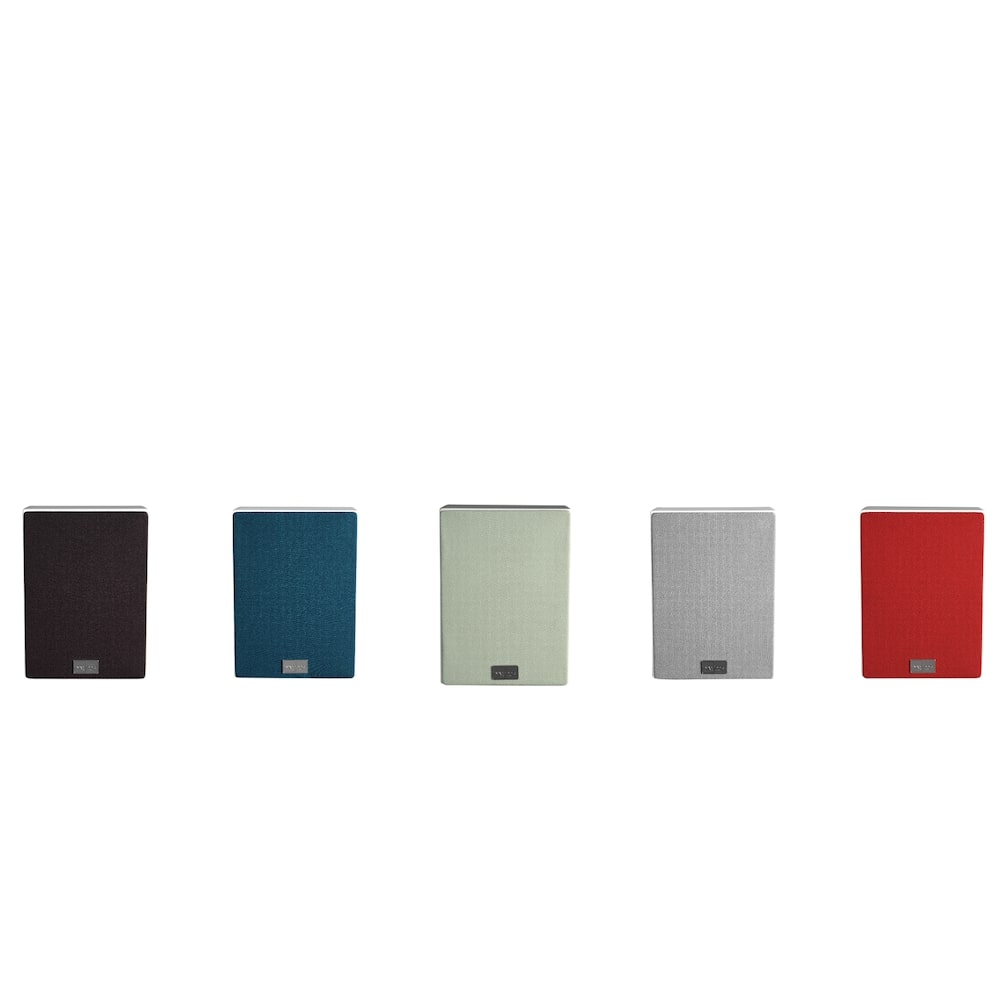

Other Grilles available. Please contact us.
