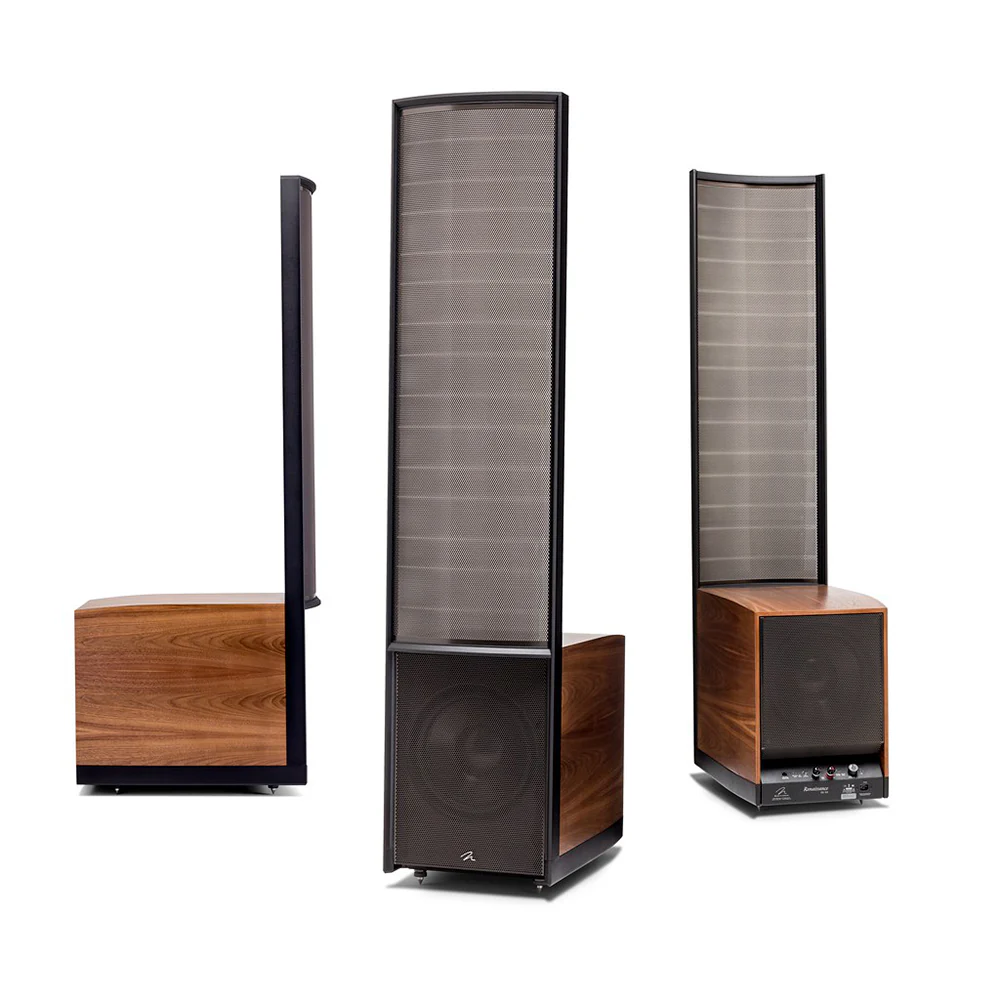

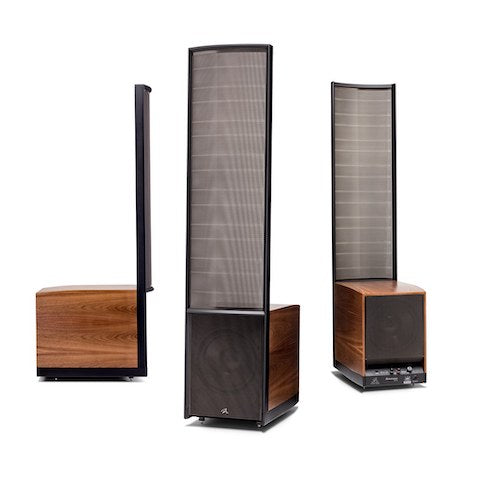

Martin Logan Renaissance 15A Electrostatic Speaker
Martin Logan Renaissance 15A Electrostatic Speaker
Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
The new 15A is the pièce de résistance is the integration of MartinLogan’s award-winning 15-inch wide Curvilinear Line Source (CLS™) XStat™ electrostatic (ESL) transducer with its robust woofer section, the revolutionary melding of design and engineering.
Advanced MicroPerf stator technology, which allows for almost twice the exposed electrostatic diaphragm surface as a traditional electrostatic panel of the same size. The panel is reinforced with rigid ClearSpar™ spacers, keeping an exact level of tension on the vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add the slender, pointed-arrow design of the new AirFrame™ Blade construction; a powerfully evocative composition creating a harmonious connection between the panel and its woofer cabinet.
Inspired by our own breakthrough design, we have reinvented the Renaissance ESL 15A woofer section, powered by new dual 500-watt Class-D amplifiers, and controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room Correction).

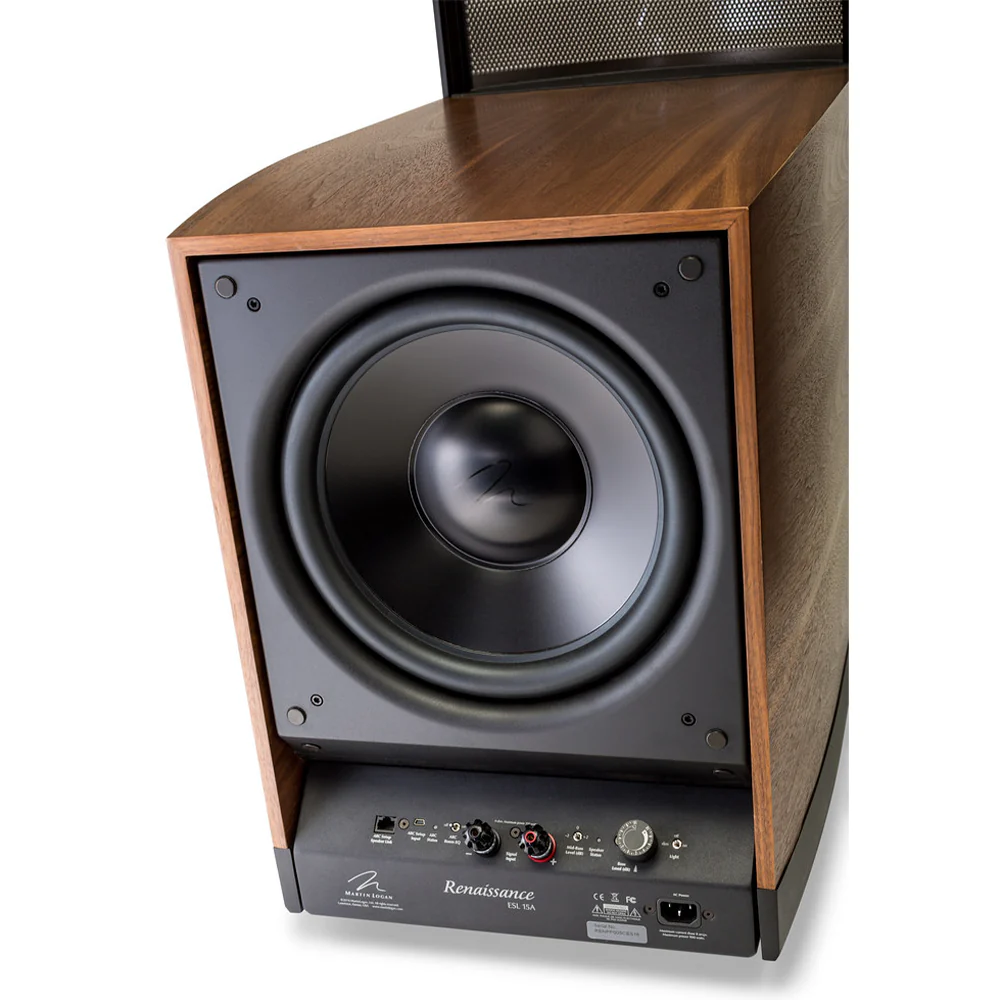

Using two 12-inch laser-engineered low-distortion aluminum cone woofers in independently enclosed compact chambers, exclusive PoweredForce Forward™ bass alignment technology controls the interaction between the rear-firing woofer and the wall behind that woofer. With smart phase-shifting logic, we minimize the effect that wall has on bass information that might bounce back into the listening room. This uniform frequency response results in realistic bass effects you can feel. It’s one more way MartinLogan innovation improves your listening experience in any room.
Priced Per Pair.
Premium Finish Options. Please contact us.

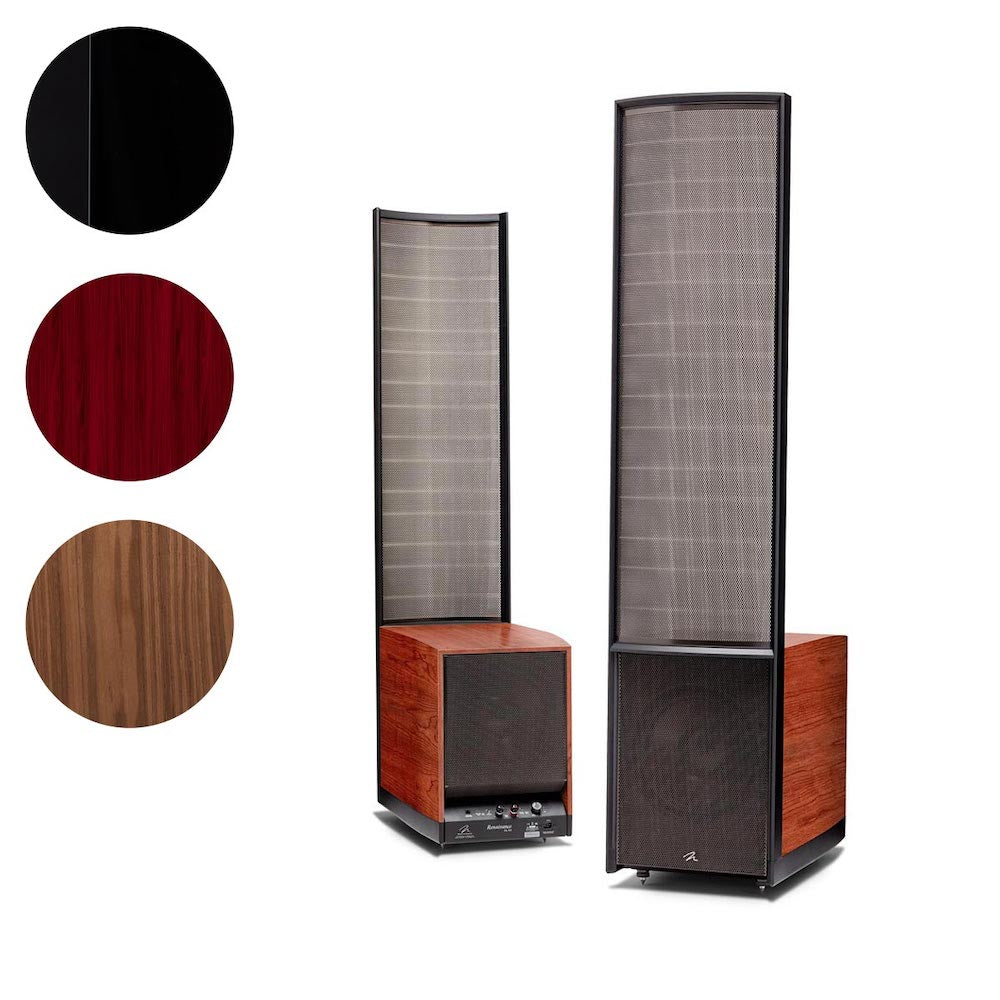

Finish Options:
Gloss Black Dark Cherry Walnut
Premium Finish Options:
Rosso Fuoco Cordoba Red Deep Sea Blue Basalt Black
(Gloss Red) (Gloss Metallic Maroon) (Gloss Metallic Blue) (Gloss Metallic Black)
Meteor Grey Desert Silver Arctic Silver
(Gloss Metallic Silver, Dark) (Gloss Metallic Silver, Tan tint) (Gloss Metallic Silver, Light)
Specifications:
|
Recommended Amplifier Power |
20—700 watts per channel |
|
Horizontal Dispersion |
30° |
|
Vertical Dispersion |
46" (116.9cm) line source |
|
High Frequency Transducer |
XStat™ CLS™ electrostatic transducer. » Panel Dimensions : 46" x 15" (117 x 38cm). » Radiating Area : 690 in² (4,446 cm² ) |
|
Low Frequency Transducer |
Two 12” (30.5 cm) PoweredForce Forward™ woofers with cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format. |
Room Correction (Bass Section) |
Anthem Room Correction (ARC™) ready (Sold Separately) |
|
Components |
Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier). |
|
Audio Controls |
Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db Light: On, Dim, Off ARC™ Room EQ: On, Off |
|
Signal Inputs |
WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects. |
|
Inputs |
AC Power, RJ45 (for ARC), mini USB (for ARC) |
|
Power Draw |
Idle: < 0.5W/channel Max: 900W/channel |
|
Lighting |
LED intensity control: on, dim, off |
