Plixir Elite Balanced DC Linear Power Supply IN STOCK

Load image into Gallery viewer, Plixir Elite Balanced DC Linear Power Supply IN STOCK

Plixir Elite Balanced DC Linear Power Supply IN STOCK

Name: Plixir Elite Balanced DC Linear Power Supply IN STOCK
Brand: Plixir
SKU: 43857069474033
Price: 995.00 CAD
Availability: InStock

Plixir

$995.00

Shipping calculated at checkout.

Elite BDC

Quantity

We have the 5v, 12v and 15v in stock. Statement Cables As Well.

The PLiXiR Elite BDC balanced DC power supply is designed to reduce all the noise types present in a DC power supply. Upon deep studies it is apparent that traditional DC power supply circuit cannot eliminate them all. These include Ground loop current and diode rectification/pollution noise.

Our ground-up approach begins with a balanced AC power design, along with a two-stage voltage regulation consisting of an open-loop first-stage pre-regulator and a close-loop feedback second stage.

Our unique balanced AC power circuit effectively removes ground loop noise and reduces the diode noise.

The first stage pre-regulation filters the bulk of the noise, specifically the high-frequency noise, and the heat from the second stage voltage regulator. The 2 stages regulation design as a "gate" to prevent the downstream noise from crossing back to the AC power hands.

The Elite BDC range of balanced linear DC power supplies are our flagship cost-no-object product. Supplier of: Electric power supply, power supply, power supply. Best of all 3 stage design prevents noise from your equipment from polluting other hifi equipment in your setup.

Casing: Extruded, 5mm-thick aluminium casing body. Thick metal top and bottom plates provide an ultra-rigid casing that guards against the sound-degrading effects of mechanical vibrations and protects the transformer from external damage.

Premium Components: Selected premium components including ultra-low-impedance capacitors, high-current connectors and high-purity copper cables.

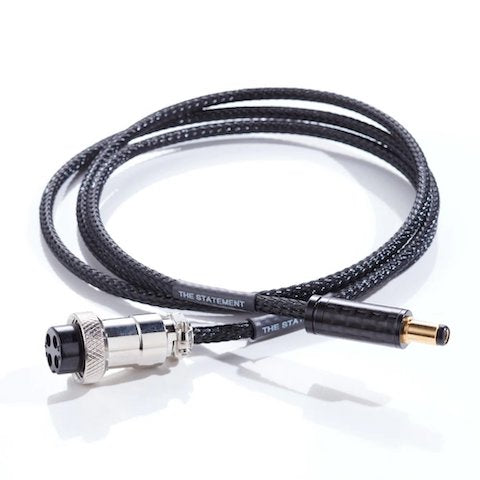

Statement DC cable is a high-end cable for DC power application, for connection between your DC power supply and the component's powers. The design features a thick gauge (multi solid core stranded), extremely high purity silver-plated copper conductor, double insulated by a mylar foil (for high frequency external noise rejection) and thick silver-plated copper braid (for low frequency external noise rejection). The dielectric insulation is military grade (mil spec) Teflon for both the conductor and cable braid for low loss and high speed current delivery.

The result is a high current DC cable (rated 10 amps DC) that is extremely low noise floor in design and has more transparency, accurate PRaT, details, body and focus to the sound than any other DC cable we have tried in the market.

Superb reference power supplies. We use them here on higher end equipment.

PLEASE INDICATE AMPERAGE VALUE, DC VALUE AND CONNECTOR SIZE REQUIREMENTS IN THE CHECK OUT NOTES. PLEASE SEE BELOW FOR OPTIONS OR PLEASE GIVE US A CALL FOR ASSISTANCE. Longer or smaller lengths available as well.

DC Cable Only Available With Purchase Of Elite BDC PS.

Please contact us for Bundle Pricing with an Audioquest or Puritan power cord. Thank you.

Specifications:

OUTPUT

Less than 1mVrms residual noise at DC ouput. Output Current available in 2/4/6 Amps current continuous.

OUTPUT VOLTAGE

Output voltage available from 5 Vdc to 30 Vdc. Available in: 110 Vac or 230 Vac input voltage

CASING FINISH

Black anodized, sandblasted aluminum

WEIGHT

3.0kg (2A), 3.7kg (4A), 4.7kg (6A)

DIMENSIONS (IN MM)

230 x 160 x 70

INCLUDES:

Includes one-meter-long PLiXiR Elements High Current DC Cable with a choice of 1.3mm, 1.7mm, 2.1mm or 2.5mm DC plugs to mate with your equipment.
