Description

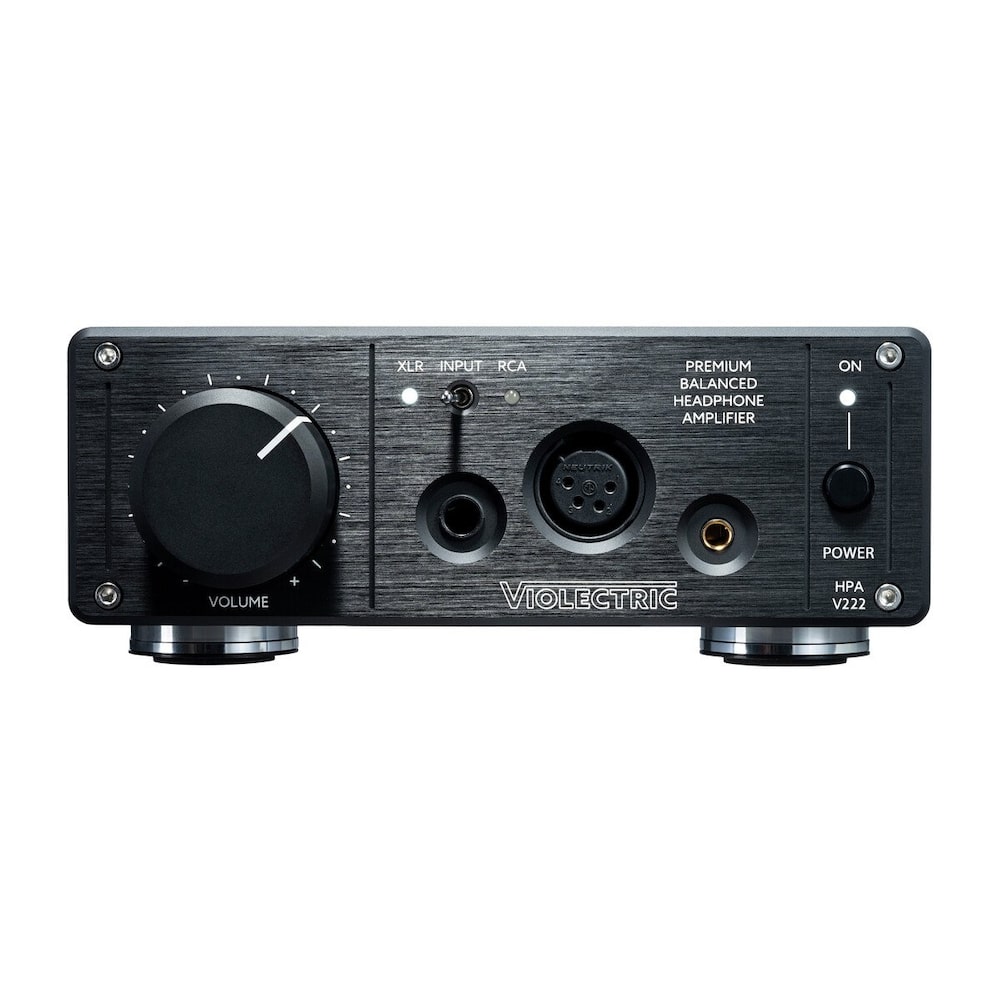

The new Violectric HPA V222 headphone amplifier features a fully balanced output stage with 4 output stage circuits. This allows it to drive balanced wired headphones with perfect electronic signal separation. It has both a balanced 4-pin XLR socket and a 4.4 mm Pentaconn on the front. An additional 6.3 mm jack output drives classic headphones asymmetrically.
Features:

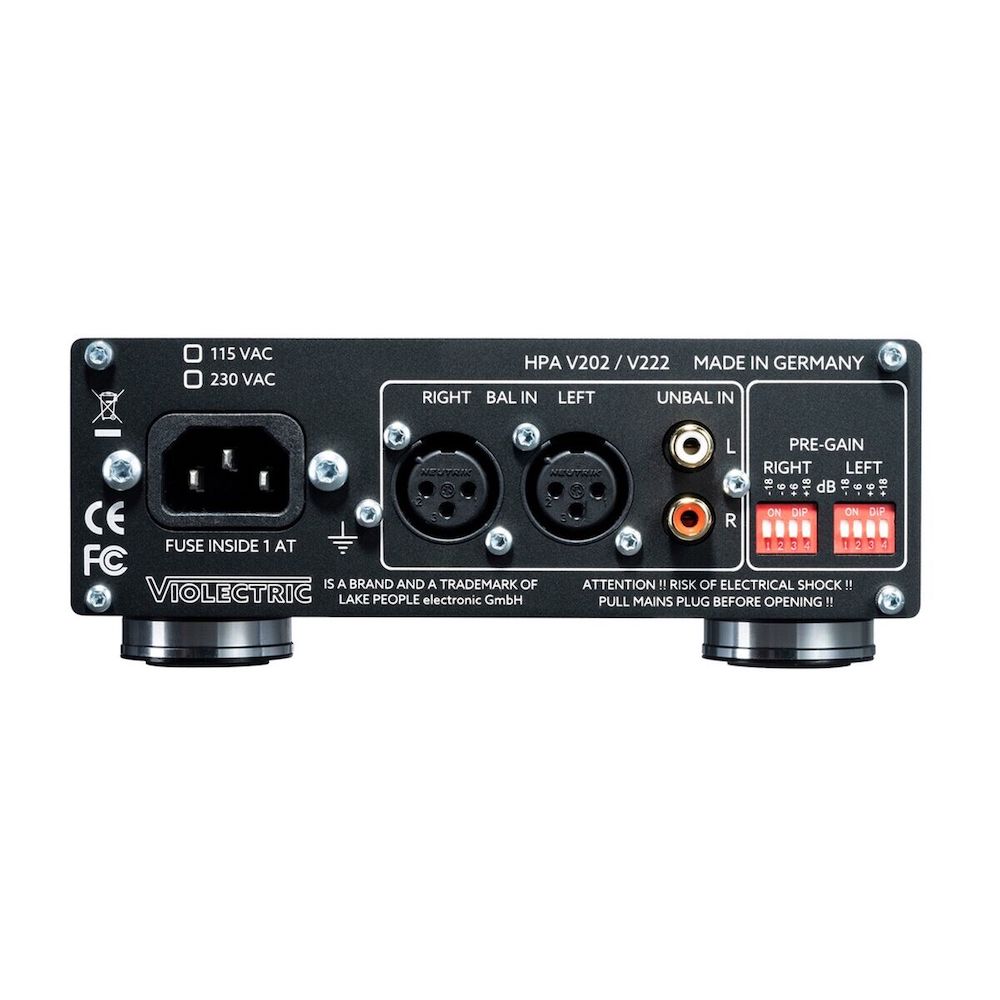

- balanced inputs via gold-plated Neutrik XLR sockets
- unbalanced inputs via gold-plated RCA sockets
- PRE-GAIN: amplification can be adjusted in 7 stages on the back
- Powerful balanced stereo amplifier (4 output stages)
- Compact and extremely robust aluminum housing
- Made in Germany
Specifications:
| Item number: | 1008323 |
| Max. Input Voltage | +21 dBu |
| Dynamic range | > 131 dB (A-bew.) |
| amplifier make | < -102 dBu (A-bew.) |
| Attenuator Make | ALPS RK27 |
| Volume Knob | 38 mm Aluminum |
| housing form | Desktop |
| output impedance | < 0,5 Ohm balanced / < 0,25 Ohm unbalanced |
| Input Sensitivity | +6 dBu |
| Input Impedance | 10 kOhm |
| color | black |
| frequency range | 5 Hz - 150 kHz |
| crosstalk | -100 / -95 dB (1 kHz / 15 kHz) |
