Woo Audio WA5 LE Gen 2 Tube Headphone Amplifier
Woo Audio WA5 LE Gen 2 Tube Headphone Amplifier
PLEASE CONTACT US FOR AVAILABILITY.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description

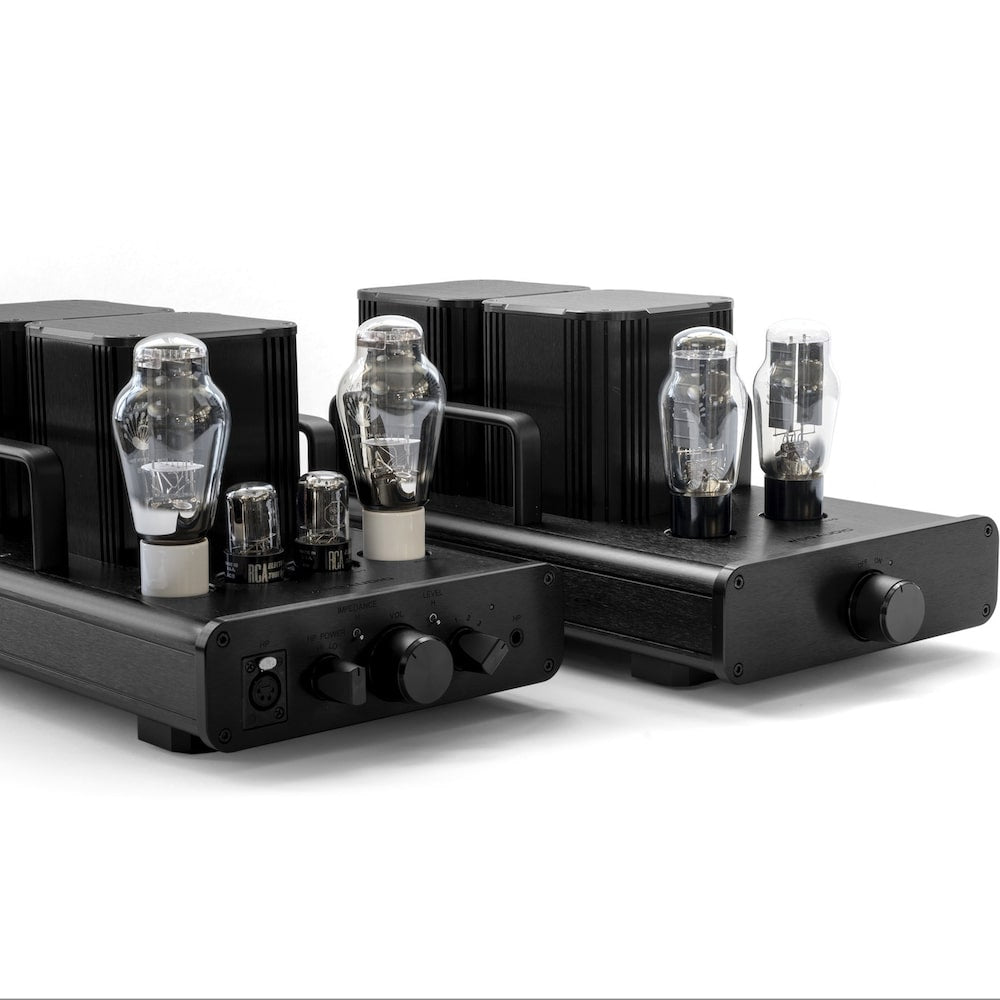

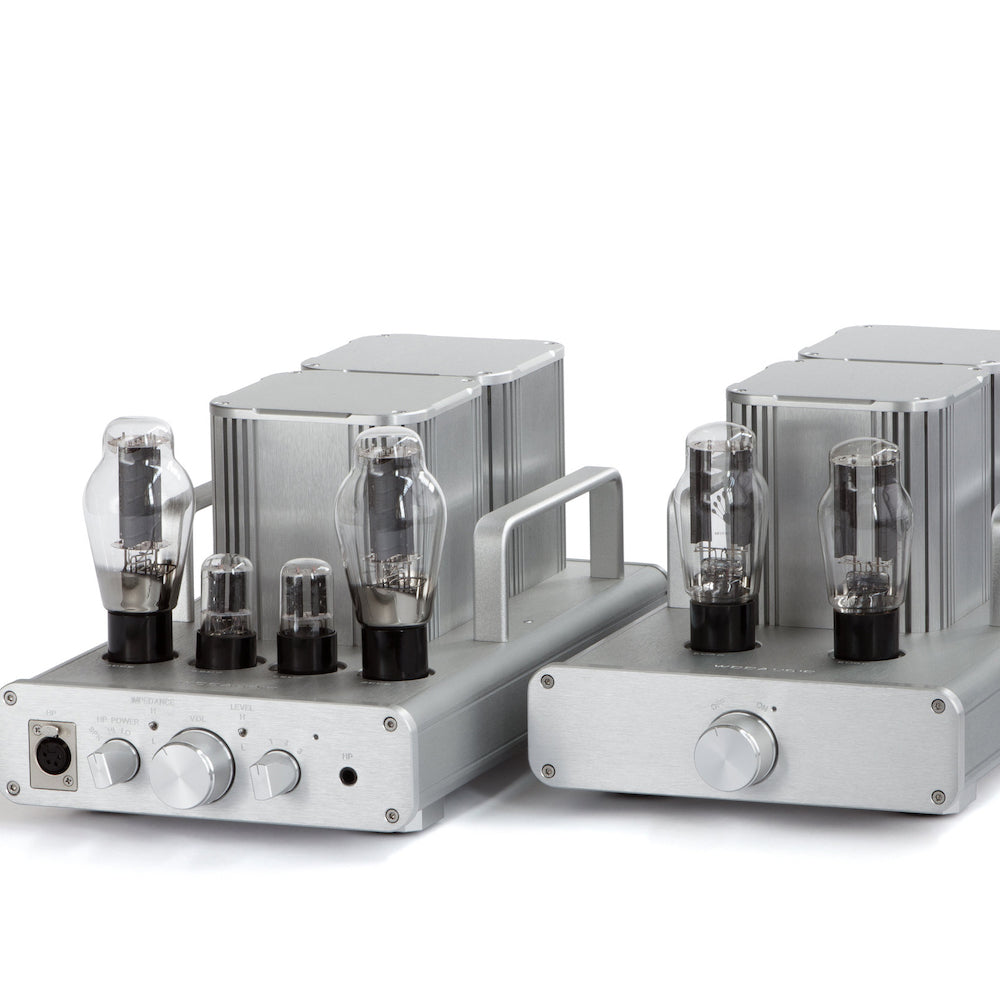

The new Dual Chassis Gen 2 WA5-LE is a single-ended triode (SET), class A tube amplifier. It differs from the highly acclaimed WA5 only in that it is a dedicated headphone amplifier and cannot be used to drive loudspeakers. In all other respects, WA5-LE is identical to the WA5 and offers the same captivating sound quality. WA5-LE is designed around the audiophiles' favorite 300B vacuum tube. This tube provides exceptional transparency allowing the listener to experience music close to a live performance.
Specifications:
-
Updated to 2nd generation in August 2015
-
Tubes: 6SN7 driver x 2, 300B power x 2, 5U4G rectifier x 2
-
Polytetrafluoroethylene (PTFE) tube sockets
-
Single-ended Triode, Class-A
-
Transformer-coupled, Point-to-Point wiring
-
Pseudo-dual power supply, dual chassis design
-
User selectable HI/LO headphone POWER
-
User selectable HI/LO headphone IMPEDANCE
-
User selectable HI/LO headphone LEVEL
-

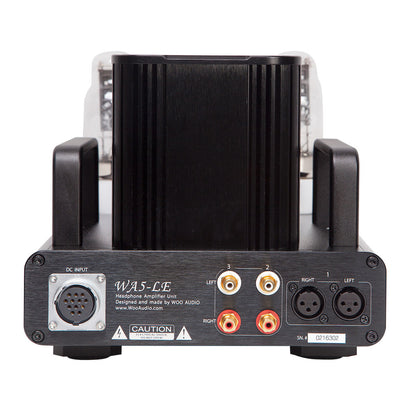

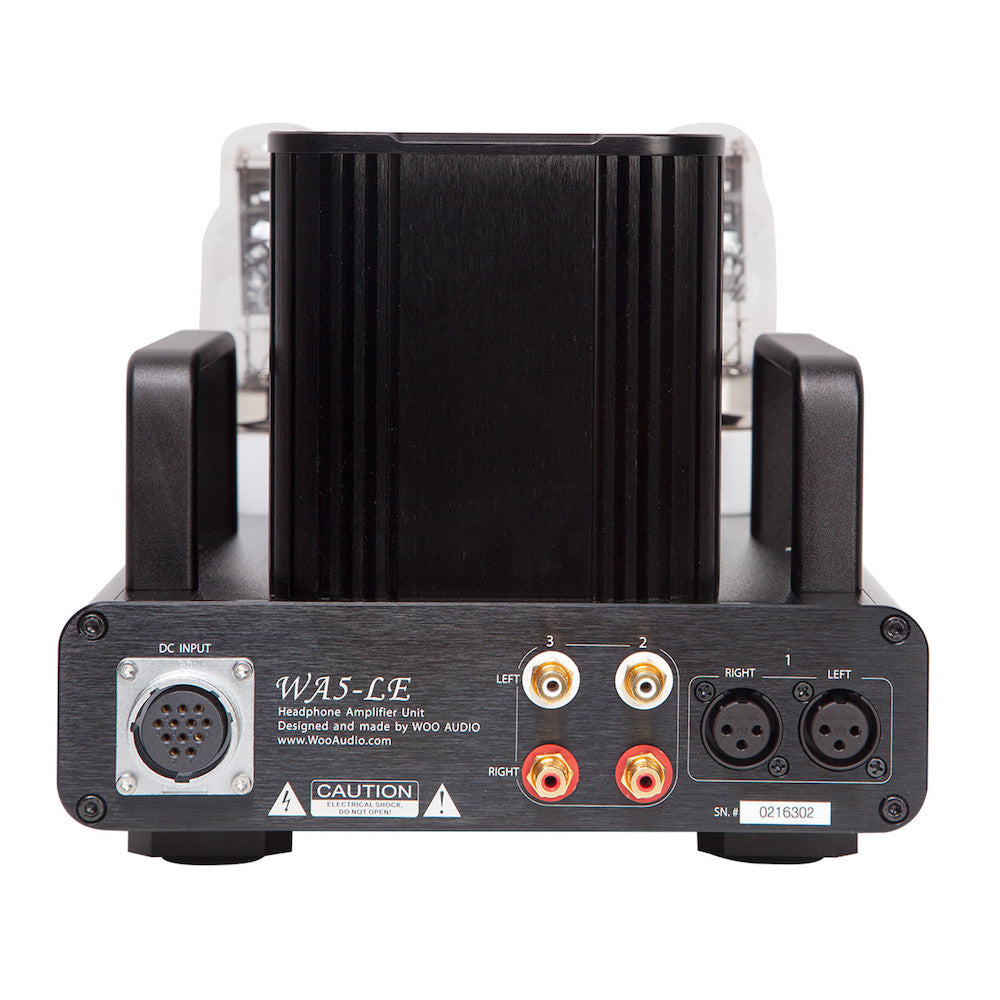

XLR input x 1, RCA input x 2
-
4-pin XLR and 1/4" (6.3mm) stereo headphone outputs
-
ALPS smooth potentiometer
-
Anodized aluminum chassis, available in black or silver
-
Self-biasing with compatible tubes
-
Global voltage (100v–240v) without a converter
-
Designed and assembled in New York, USA
The Audiophile-grade premium internal parts upgrade adds the below.
*** Available only at the time of original build ***
-
Mundorf MCap Supreme Silver/Gold input coupling caps. Matched pair 0.15uf/600V
-
Mundorf MLytic HV double-capacity electrolytic capacitors, 100u x 3
-
Mundorf MLytic HV double-capacity electrolytic capacitors, 220u x 4
Specifications
