Yamaha TRUE X BAR 90A SR-X90A Soundbar
Yamaha TRUE X BAR 90A SR-X90A Soundbar
Usually Ships Within 2 Days.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description

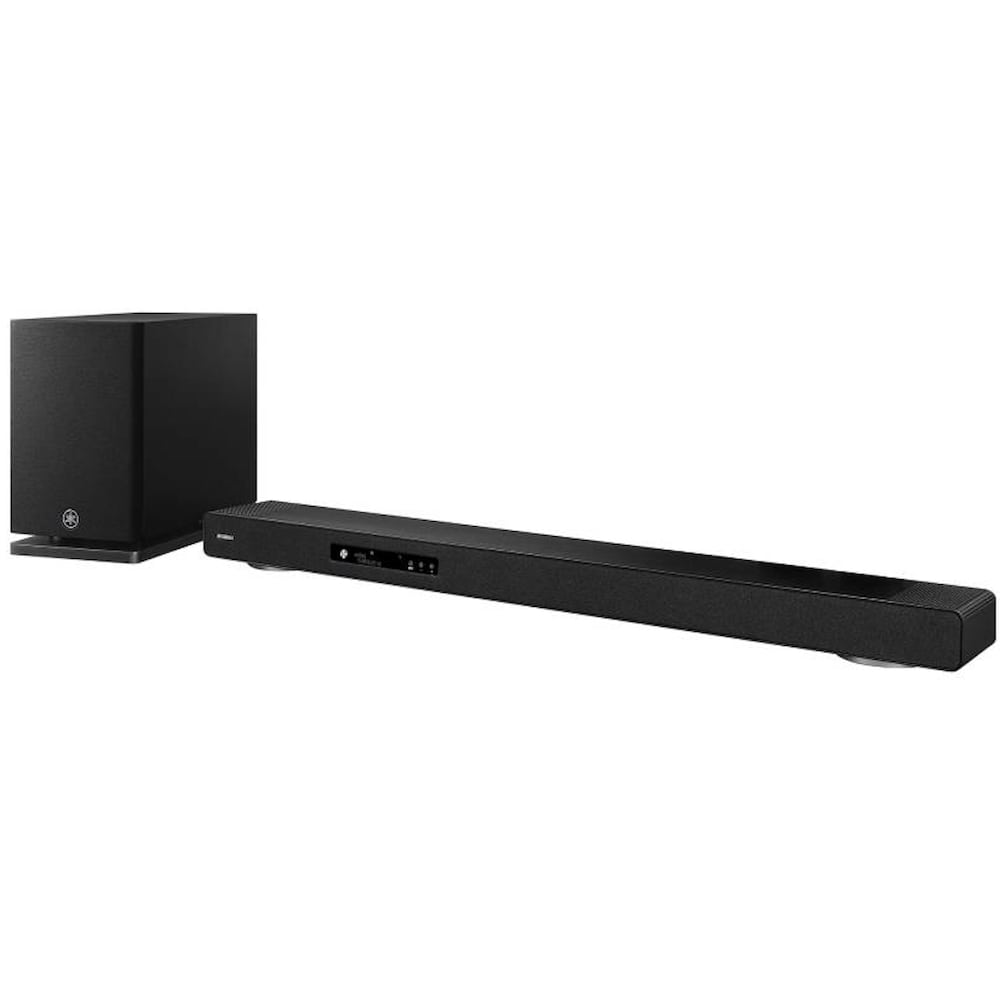

Yamaha's new True X Bar 90A is a bold new benchmark in home entertainment. It is beautiful and is a meticulously crafted system that integrates seamlessly into your home. The slim sound bar, wrapped in a high-rigidity metal enclosure and supported by vibration-dampening feet, delivers both elegance and acoustic precision. The wireless subwoofer adds deep bass with flexible placement anywhere in your room. Engineered for those who seek premium cinematic sound with an effortless setup, this sound bar elevates all your favorite movies, shows, music and games like never before.
Our challenge: to deliver extraordinary sound from a slim bar. Our secret: newly developed, custom eye-shaped speaker drivers. By optimizing the shape, structure and magnetic circuitry of the primary front drivers, we greatly improved cone strength and high-frequency clarity. The result — clear, lifelike sound without acoustic interference, from a sleek form factor that perfectly complements your TV and décor.
Over twenty years ago, we re-invented home theater with the YSP-1 sound bar and we’ve been refining its unique sound beam technology ever since. In this latest model, we employed a Yamaha YDA-141 high-performance amplifier with twelve (six per side) ultra-precise DSP-controlled beam speakers to produce phenomenal height channel effects. With realistic Dolby Atmos® playback, the Bar 90A delivers an amazing sound field that surpasses conventional sound bars.
The subwoofer of this system employs Symmetrical Flare Port® technology, newly developed through meticulous Particle Image Velocimetry (PIV) measurements—delivering powerful, deeply resonant bass. The symmetrical horizontal/vertical port structure ensures extremely smooth release of the strong air flow generated during bass reproduction. As a result, port noise has been reduced by 20 dB compared to conventional models, enabling pure bass reproduction that is both powerful and deep.
Specifications:
| TRUE X BAR 90A | ||
|---|---|---|
| General | Drivers | Front L/R: 110 x 53 mm (4-3/8" x 2-1/8") Cone type full range x 2, 25 mm (1") dome type tweeter x 2 Center: 110 x 53 mm (4-3/8" x 2-1/8") Cone type full range x 1, 25 mm (1") dome type tweeter x 2 Height Beam L/R: 28 mm (1-1/8") Cone type x 12 Subwoofer: 17 cm (6-3/4") Cone type |
| Dimensions (W x H x D) | Center unit: 1180 x 85 x 143 mm (46-1/2" x 3-3/8" x 5-5/8"), Subwoofer: 241 x 378 x 414 mm (9-1/2" x 14-7/8" x 16-1/4") | |
| Weight | Center unit: 11.0 kg (24.3 lbs), Subwoofer: 12.7 kg (28.0 lbs) | |
| Standby Power Consumption | 0.5 W (HDMI control off, network standby off), 2.0 W (HDMI control off, network standby on), Subwoofer: 2.0 W | |

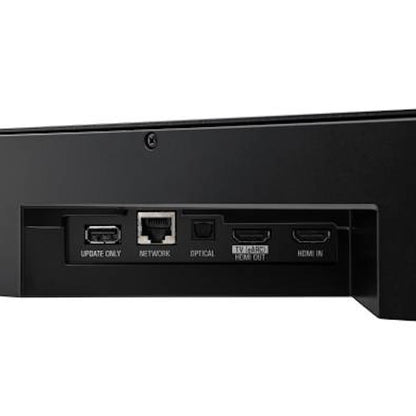

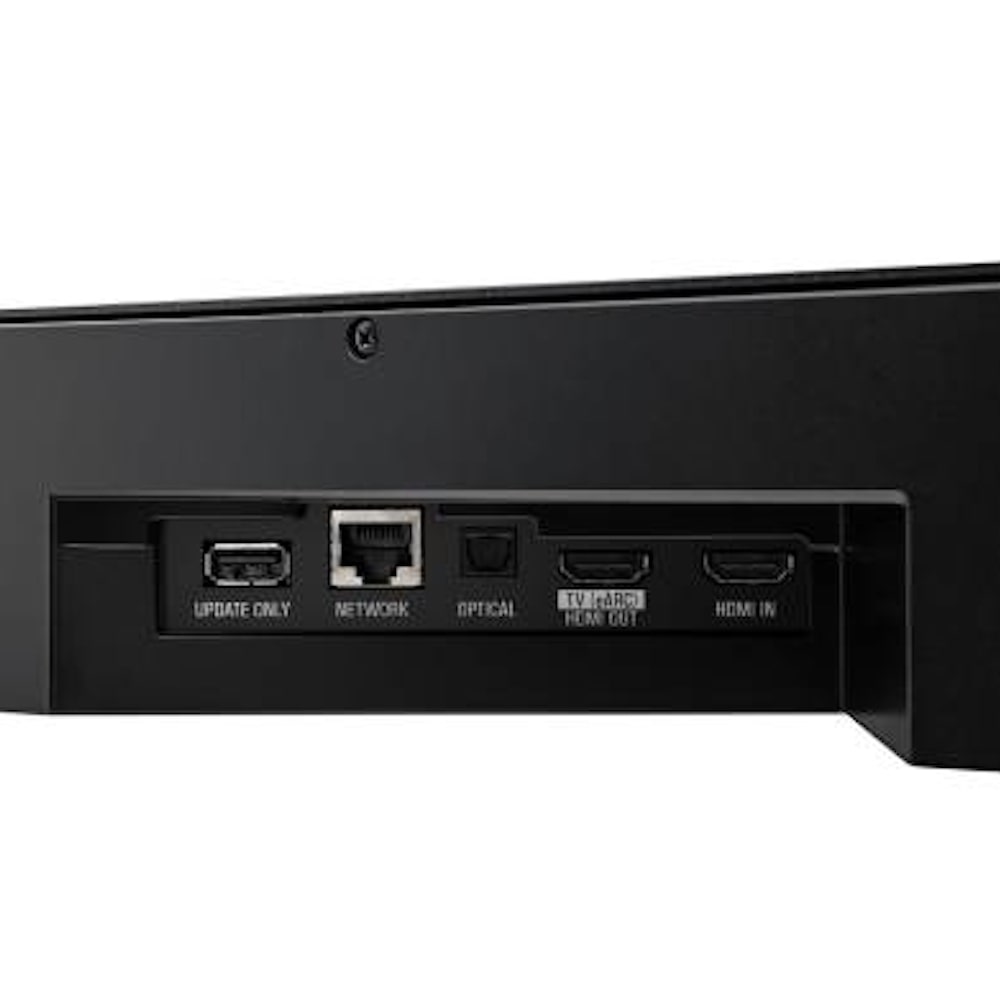

| Input / Output | HDMI | 1 in / 1 out (eARC) |
| Digital Optical | Yes | |
| Subwoofer output | No | |
| Analog Audio | No | |
| HDMI | 4K Pass-through | Yes |
| CEC | Yes | |
| Auto Lip-Sync | max 500 msec | |
| Sound Technology | Surround Decoder | Dolby Atmos, DTS:X, AURO-3D |
| Surround Mode | SURROUND:AI, 3D Music, Stereo, Straight, All | |
| Clear Voice | Yes | |
| Bass Extension | Yes | |
| Connectivity | Built-in music streaming services | Yes |
| Wi-Fi | Yes | |
| AirPlay | AirPlay 2 | |
| Bluetooth Version/Profile | Version: Ver 4.2 / Profiles: A2DP / Codecs: SBC, AAC | |
| Wireless Subwoofer | Yes (5 GHz) | |
| True X Surround | Yes (5 GHz) | |
| Other Features | App Control | Yes (MusicCast Controller) |
