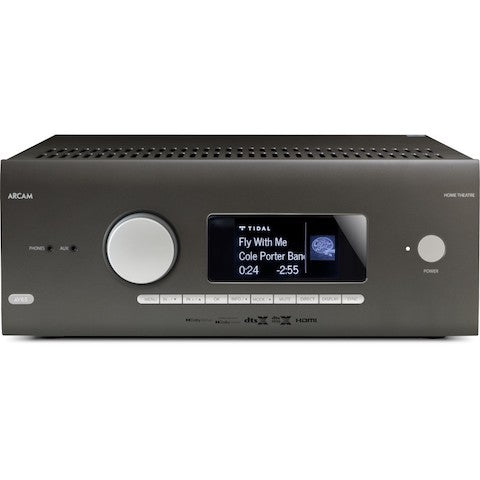

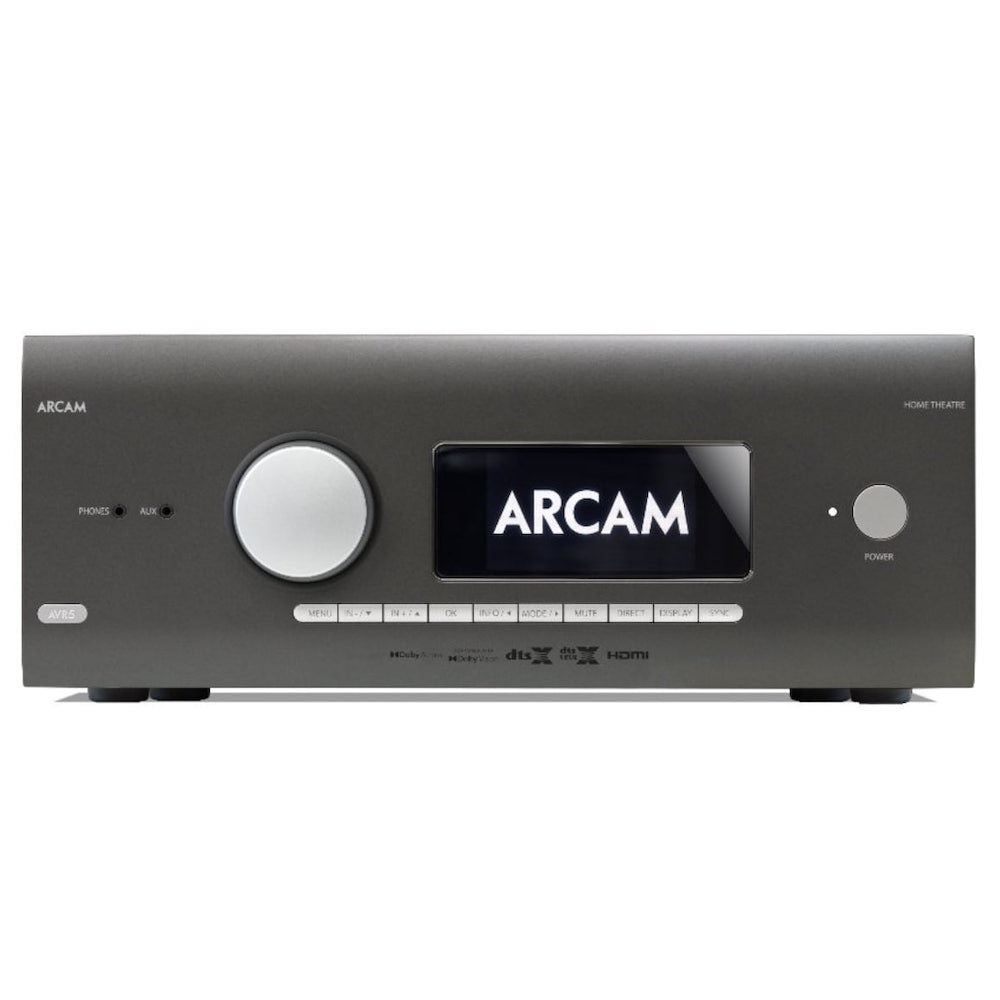

The Arcam AVR5 features native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.
The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.
- 7-channel amplifier
- 80 watts per channel into 8 ohms (20-20,000 Hz) at 0.02% THD with 2 channels driven
- Dolby® and DTS® surround sound decoding
- supports up to a 7.2.4 Dolby Atmos or DTS:X setup with an additional 4 channel amplifier (or two 2-channel power amplifiers)
- IMAX Enhanced certification for improved performance with IMAX Enhanced content
- ready for Dirac Live® room correction (not included, sold separately)
- ESS 9026PRO audiophile digital-to-analog converter for ultra-clear sound from stereo and surround sources
- HDMI 2.0b audio/video switching: 7 in, 2 out
- dual HDMI outputs for sending signal to both a TV and a projector
- HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs
- HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content

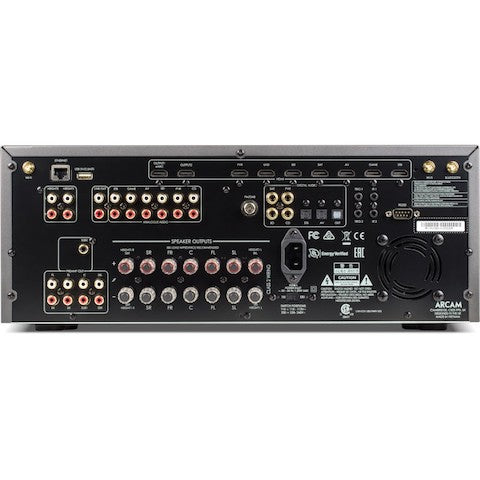

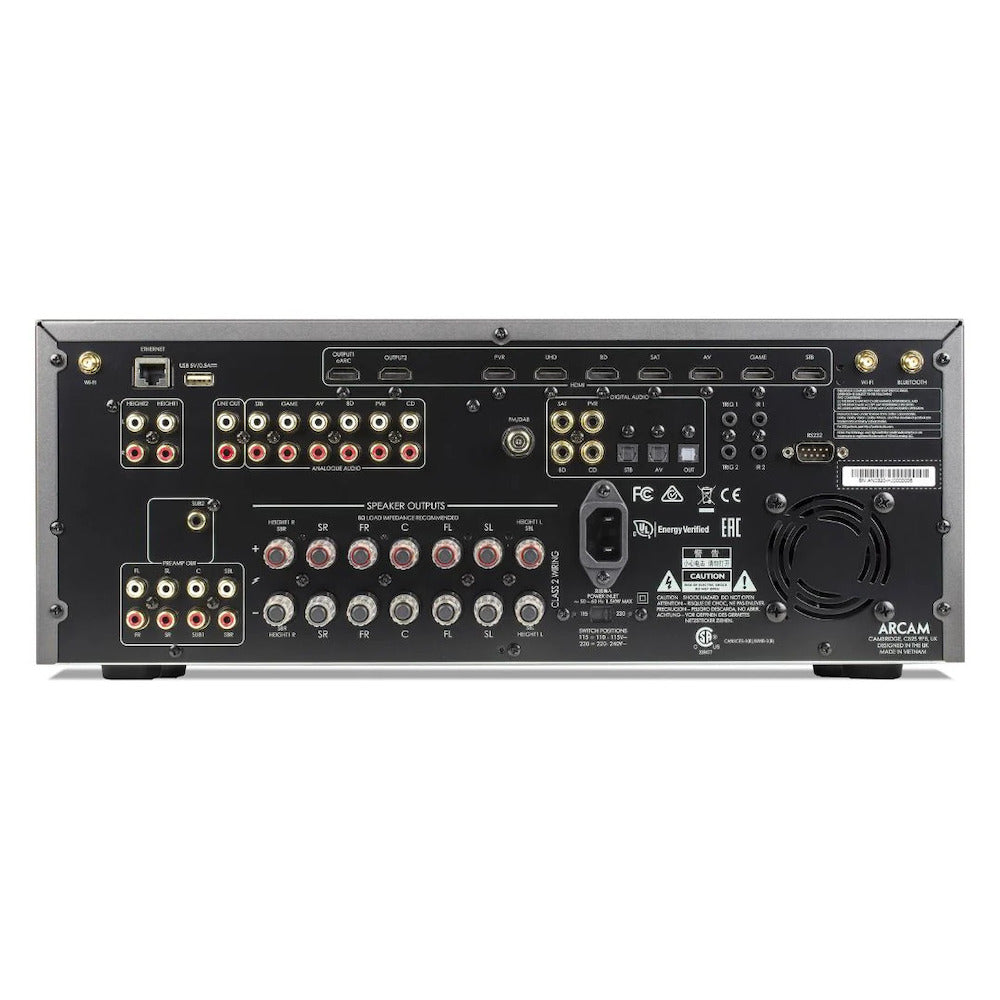

- digital audio inputs: 2 optical and 4 coaxial
- 6 analog RCA stereo audio inputs, plus front-panel 3.5mm minijack input
- 11.2-channel preamp outputs
- no phono input — to connect a turntable you'll need to add a phono preamp
- rear-panel USB port for audio playback from USB storage devices
- Ethernet port for network connection
- RS-232, IR (infrared), and 12-volt trigger connections for use with optional 3rd party controllers
- front-panel 3.5mm mini headphone output
- detachable power cord
- free Arcam MusicLife and UPnP (Universal Plug and Play) control apps let you use your iOS® or Android™ device as a wireless remote control
- wireless music streaming through Bluetooth, Apple AirPlay 2, and Chromecast built-in
- built-in FM tuner
- remote control included
- dimensions (measured by Crutchfield): 17-1/16"W x 6-11/16"H x 18-9/16"D
- weight: 36.4 lbs.
- warranty: 5 years
