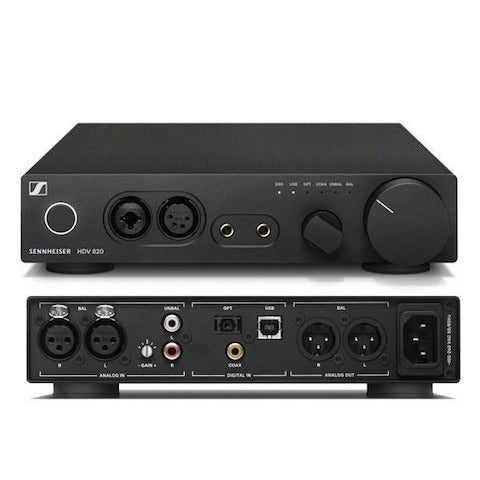

The HDV 820 is a reference-grade solution for critical listening tasks, maximizing headphone performance with top-class digital-to-analog conversion and exquisite amplification. The HDV 820 unlocks the potential of your Sennheiser headphone collection with class-leading DAC and headphone amplifier technology.
What's in the box?
- HDV 820 Headphone Amplifier
- Power supply cable (depending on region; EU, UK, US, CN, KR)
- Quick guide
- Safety guide
- Microfiber cloth
- USB flash drive (SD-U16L version) with instruction manual (as PDF file) and driver software for Microsoft Windows operating systems
Specifications
-
- Dimensions
-
Approx. 224 x 44 x 306 mm
-
- Frequency response
-
< 10 Hz to > 100 kHz
-
- THD, total harmonic distortion
-
< 0.001 %
-
-
- Weight
-
Approx. 2.25 kg
-
- Power consumption
-
Nominal 12 W
(2 x 300 Ω headphones connected to the 4.4 mm outputs)
-
- Gain
-
UNBAL input/XLR-4 output:
Adjustable 14 dB, 22 dB, 30 dB, 38 dB, 46 dB
BAL input/XLR-4 output: 16 dB
-
- Operating voltage (mains)
-
100 – 240 V ~, 50 – 60 Hz
-
- Dynamic range
-
> 115 dB @ 600 Ω load (A-weighted)
