The NEW LCD-4z!
The Easy-to-Drive Version of the LCD-4.
Featuring a new look and greater efficiency, the design and sound of the LCD-4z is sure to thrill! Engineered with a new magnesium housing to produce a light-weight, visually appealing headphone, the LCD-4z maintains the sound signature of LCD-4.
Easier to Drive We have taken the award-winning design of our top-of-the-line LCD-4 and engineered it with a special 15 ohm voice-coil making it significantly easier to drive than the original LCD-4. This model does not replace the original 200 ohm LCD-4, but offers a perfect solution for users seeking more head room.
Bold new look The LCD-4z features a dark sleek aesthetic with gold accents. The magnesium rings of the LCD-4z are designed to be strong, lightweight, and non-resonant for a very clean output.
Audeze’s Proprietary Difference
Planar Magnetic Technology
Near weightless nano-scale diaphragm: The LCD-4z features our most advanced diaphragm design; our exclusive nano-scale film actually weighs less than the air it displaces! Benefits include faster response for better transient/impulse response, imaging, and the flattest, deepest, most accurate bass response of any headphone available.
Audeze nearly doubles the magnetic force: Double Fluxor™ Magnet Arrays bring the magnetic flux to 1.5 Tesla, nearly doubling the power driving the diaphragm for improved transient response and far greater resolution.
Precise Imaging: Patented Fazor Element waveguide reduces diffraction of soundwaves resulting in improved treble response, transparency and imaging.
Near zero distortion: Combining our Fluxor™ magnet arrays, nano-scale diaphragm, Fazors, Uniforce voice coil, and other features, the LCD-4 and LCD-4z give you even lower distortion and greater accuracy - usually 1/10th the distortion of conventional headphones.
Designed, engineered, and handcrafted in our California factory
The LCD-4z headphone is thoroughly engineered and meticulously hand-built using the finest materials combined with cutting-edge planar magnetic technology. We closely match transducers to within +/- 1 dB.
The quality of the entire structure guarantees years of trouble-free listening. Our cutting-edge designs and circuit technologies have created a breathtakingly beautiful sounding headphone.
Features
- Planar magnetic drivers for better dynamics and frequency response
- Premium leather for style and durability
Audeze Technology
- Flux density 1.5 Tesla
- Large ultra-thin nano grade Uniforce diaphragms
- Double Fluxor™ magnetic arrays
- Fazor elements

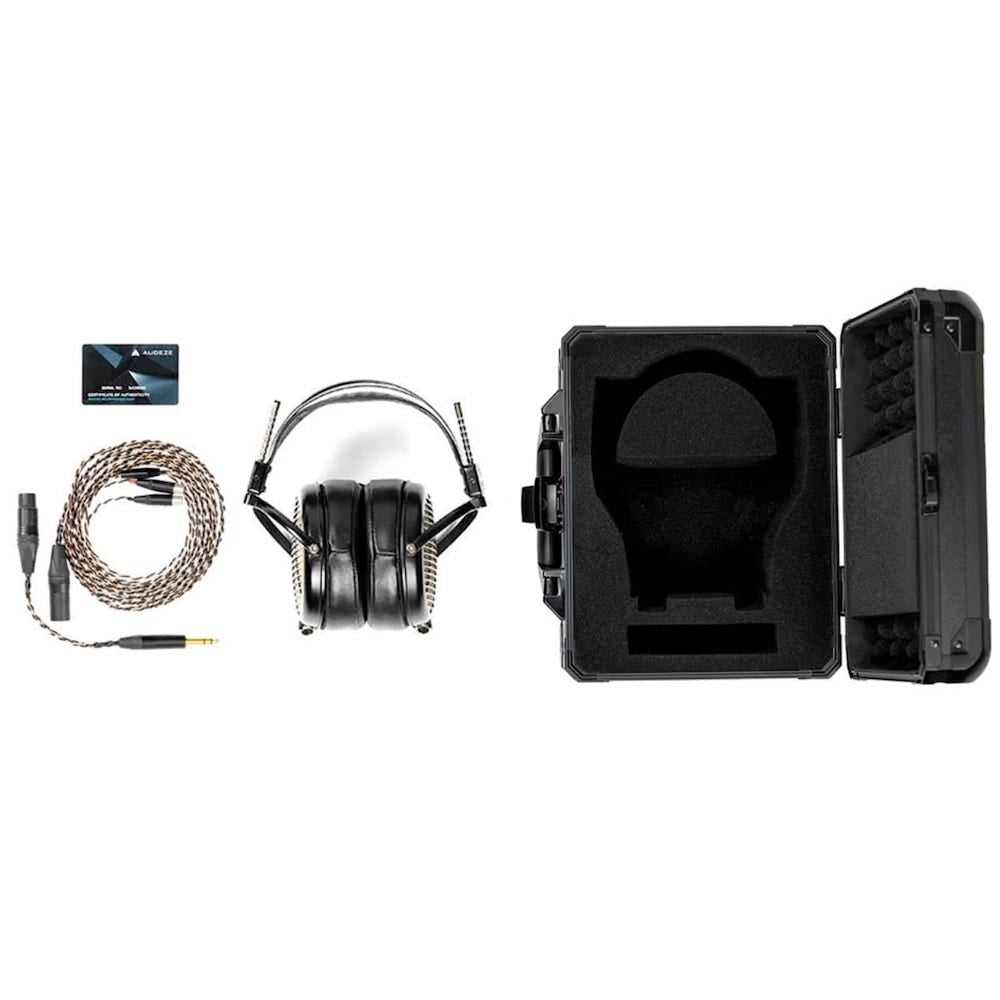

Package Includes
- 1/4in to dual 4-pin mini-XLR Premium LCD Headphone Cable with ¼” (6.3mm) stereo phone plug
- Professional travel case
Specifications:
| Style |
Over-ear, open-back |
| Transducer type |
Planar magnetic |
| Magnetic structure |
Proprietary magnet array |
| Phase management |
FAZOR |
| Magnet type |
Neodymium N50 |
| Diaphragm type |
Nano-scale Uniforce™ |
| Transducer size |
106 mm |
| Maximum power handling |
15W |
| Maximum SPL |
>130dB |
| Frequency response |
5Hz – 20kHz |
| THD |
<0.1% @ 100dB |
| Impedance |
15 ohms |
| Sensitivity |
98 dB/1mW (at Drum Reference Point) |
| Voltage sensitivity |
107 dB/1V (at Drum Reference Point) |
| Minimum power requirement |
>100mW |
| Recommended power level |
1 - 4W |
