Description
The new Aune SC1 Evo features a high-quality custom SC-cut OCXO and 2x2 outputs, serves as an excellent tool in enhancing the overall system’s performance.This is not just any OCXO available to anyone. It’s not a counterfeit version that’s simply a mass-produced model with a modified chassis. The custom SC-cut OCXO represents the collaboration between a seasoned tuner and a prominent oscillator manufacturer. The SC1 EVO also incorporates a low-noise, high-current LDO dedicated to the OCXO power supply, complemented by a specialized shielding can for isolation. The result is a sound that is pure, transparent, and with a dark background.
The jitter of the custom OCXO is below 200fs (BW 1Hz ~ 1MHz). The SC1 EVO is capable of providing precise reference clock signals to any system.
| SPECIFICATIONS: | |
|---|---|
| Product type | Clock |

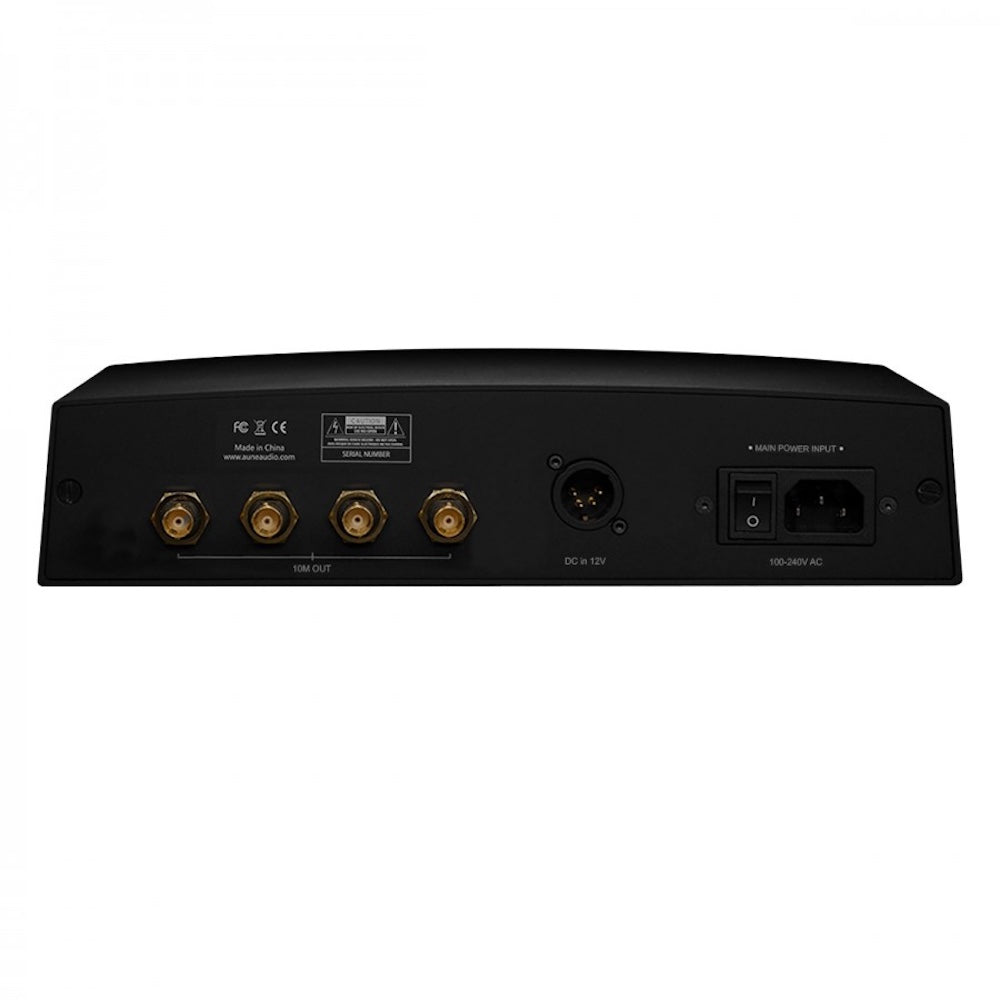

| Outputs | 4* 10MHz outputs on BNC connectors |
| Output power | > 7dBm (50Ω) |
| Output waveform | 2* square signal 2* sine signal |
| Frequency accuracy | < ±0.02ppm |
| Jitter | < 200Fs BW 1Hz-1MHz |
| Phase noise (10MHz) | < -100dBc @ Offset 1Hz < -125dBc @ Offset 10Hz < -145dBc @ Offset 100Hz < -155dBc @ Offset 1kHz < -160dBc @ Offset > 10kHz |
| Warm-up time | Basic: 5min |
| GENERAL | |
|---|---|
| Supply voltage | 100-240VAC 12VDC 2A |
| Operating temperature | Normal operating: 0°C-50°C Optimum operating: 15°C-35°C |
| Dimensions | 288*211*63mm |
| Color | Black |
| Package | 1* Aune SC1 Black 1* Power cable |
