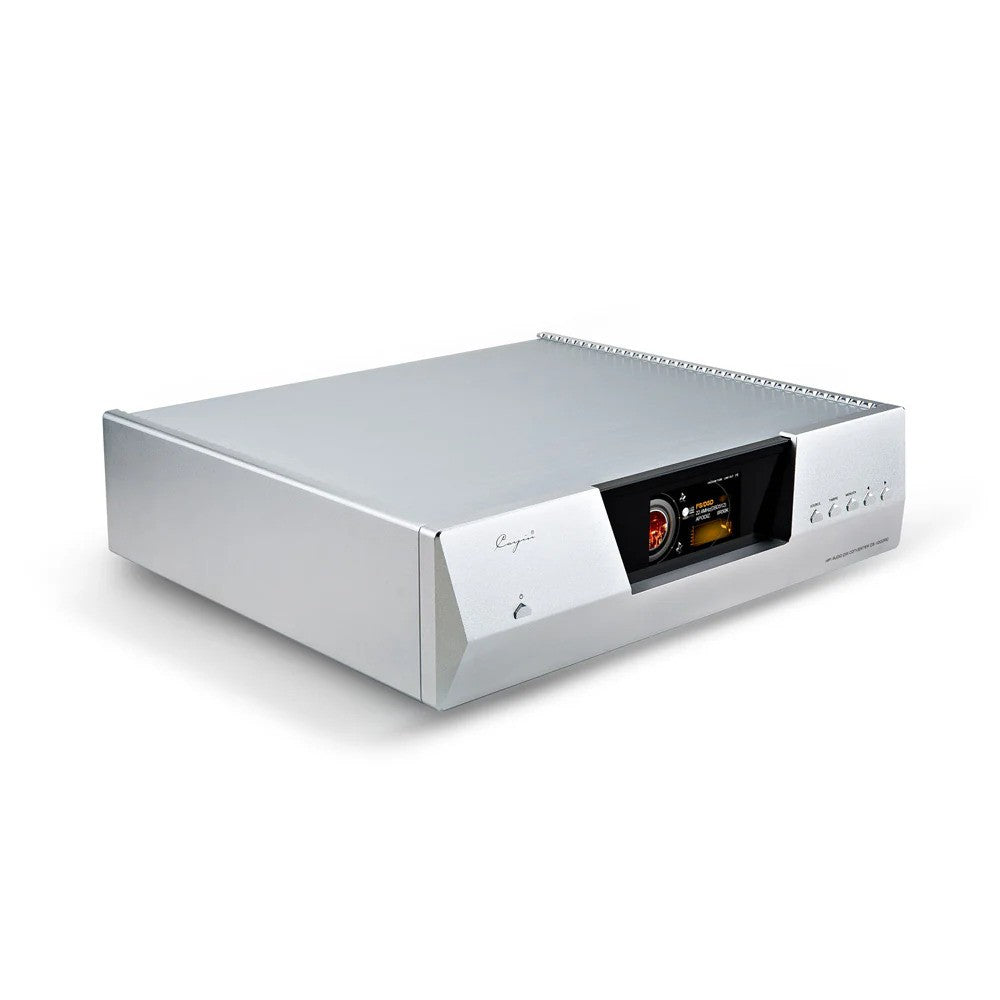

The new Cayin CS-100DAC provides superior audio performance. It features a premium digital-to-analog converter designed to elevate your listening experience. Immerse yourself in crystal-clear sound and precise detail as this high-end DAC effortlessly transforms digital audio into pure analog signals. Discover the true potential of your music collection with the CS-100DAC's advanced technology and exceptional build quality. Explore the depths of your favorite tracks with unrivaled clarity, dynamic range, and stunning resolution.

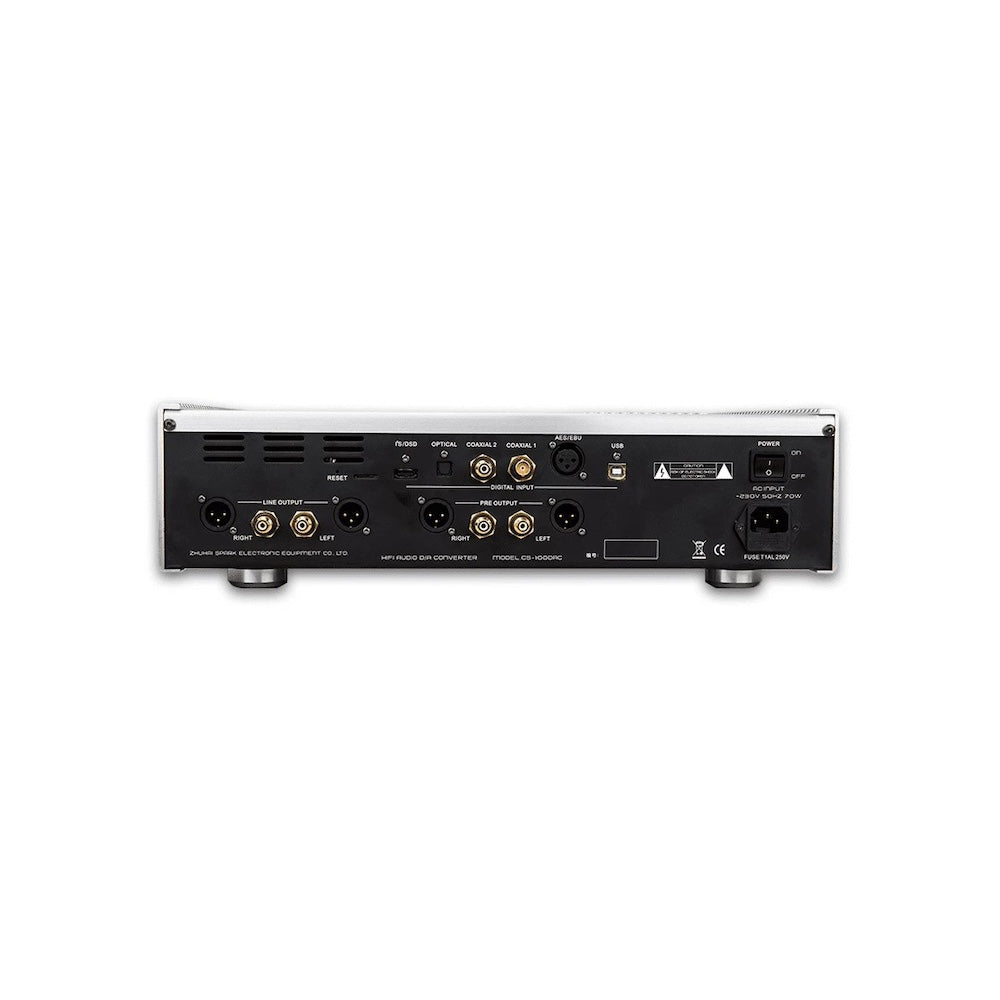

The CS-100DAC ncorporates six different input connections to match all digital sources. It also adds a bespoke/de-jittered I2/DSD Input so you can connect to the Cayin iDAP-8, and Cayin N8 for the best performance.
Coaxial RCA*
Coaxial BNC*
Optical
I2S/DSD
AES/EBU*
Asynchronous USB-B
Coaxial input can also support up-to 384kHz with a standard 75 coaxial cable.
Supports Full Reference Pre Amplifier Facility
Pre out is offered as a high end option with a fully independent amplification circuit.
Line Out & Pre Out Support Both Vacuum Tube and Transistor Configurations
Select different output timbres (Transistor or Vacuum Tube) so you can fully enjoy your music, to your taste.
Transistor single-ended and balanced amplification circuit with independent design
The single-ended amplification circuit uses OPA228P
The balanced amplification circuit uses two MUSES02
Uses two 6922EH tubes in each of the single-ended circuit and balanced amplification circuit
Uses the same vacuum tubes in balanced and single-ended output modes.
FEATURES:
Two ESS9038PRO decoding IC's are applied in the CS-100DAC
Class A design is applied in I/V conversion circuit. Two OPA228P are used in each left and right channel.
The exceptional OPA2228P is custom designed into the pre voltage amplification circuit, allowing for reference Pre Amplifier performance.
Two uber high tolerance Cayin toroidal power transformers are integrated into the CS-100DAC.
The CS-100DAC hs also been configured with two femtosecond crystals at :
90.3168MHz
98.304.MHz
High Definition AMOLED 3.95" screen.
Special Aluminium Alloy is employed in the chassis and sub chassis design, promoting the best mechanical isolation properties.
The finest brushed aluminium is used on the top cover design, again this top cover is mechanically isolated from the other chassis components.
SPECIFICATIONS:
DAC chipset:
ESS9038Pro (x2)
Data processing capability:
I2S: up to 32Bit / 768kHz, DSD512
Fully Asynchronous USB: up to 32Bit / 768kHz, DSD512 native, DoP256
Outputs:
XLR (balanced), RCA (unbalanced)
Single-ended Line Out (RCA): 2.3V + 2.3V (transistor or tube)
Single-ended Pre Out (RCA): 7.0V + 7.0V (transistor or tube)
balanced line out (XLR): 4.6V + 4.6V (transistor or tube)
balanced Pre Out (XLR): 14.0V + 14.0V (transistor or tube)
Tubes: 4 x 6922EH
Dimensions (LxWxH): 440mm X 392mm X 126mm
Weight (kg): 12 kg
Includes : Remote Control
