Cayin

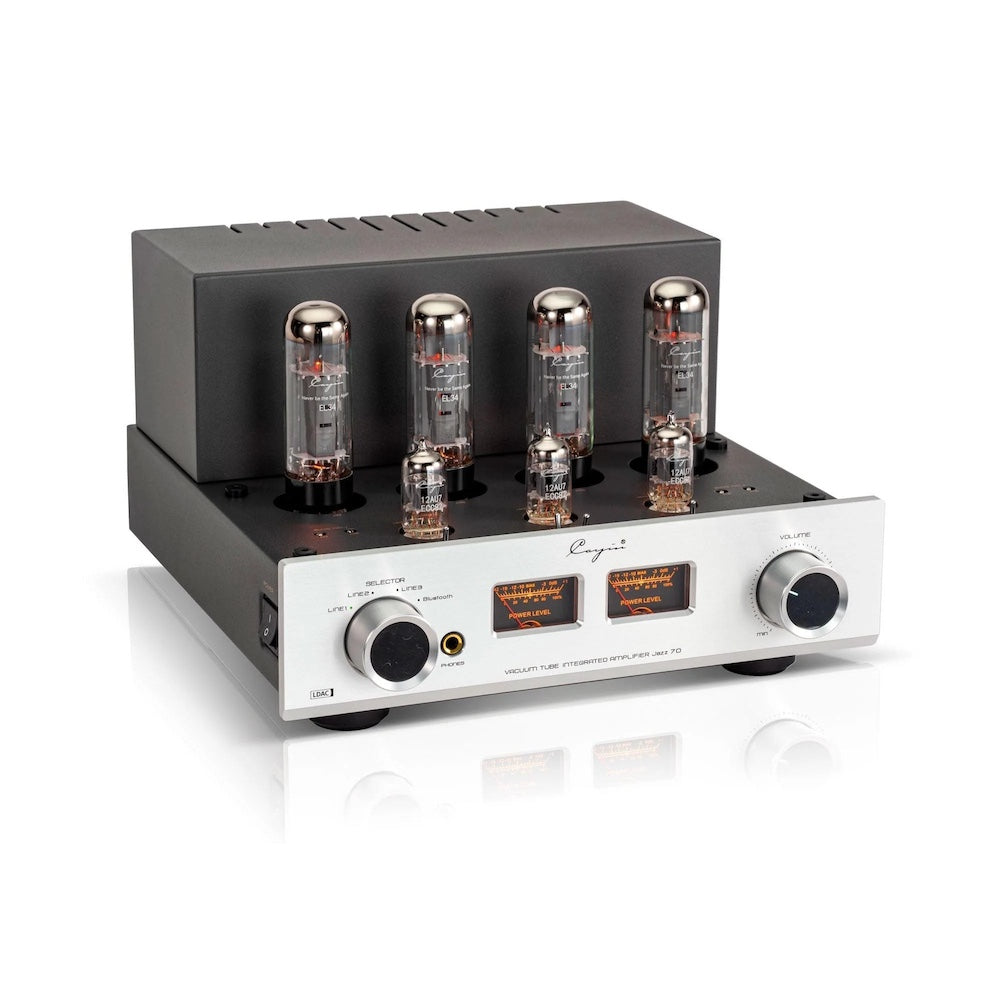

Cayin Jazz 70 Tube Integrated Amplifier

Cayin Jazz 70 Tube Integrated Amplifier

PRE-ORDER. Initial Shipment To Canada Due Mid To Late October. Please Pre-Order. Thank You.

Regular price $1,999.00 CAD
Regular price Sale price $1,999.00 CAD
Sale New Arrivals Sold out
Free Express Shipping In Canada
Jazz 70

No Discount Possible on this Product

Affirm Cannot Be Used With This Product

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

The new Cayin Jazz 70 is a classic Class AB1 push-pull tube design, featuring three 12AU7/ECC82 tubes in the preamplifier stage and four fully matched EL34 output tubes. This carefully selected tube complement delivers the rich tonal character and expressive musicality associated with EL34 amplification while providing enough output capability to partner with a wide variety of loudspeakers.With an elegant retro inspired design with Bluetooth 5.1, selectable operating modes, and handcrafted construction, the JAZZ 70 brings classic tube amplification into the contemporary home audio system.

The new Jazz 70 features selectable Triode and Ultralinear modes with handmade low-magnetic-leakage toroidal power transformer along with wide-frequency-response EI output transformers.

Triode Mode — 17W + 17W RMS
Designed for a smoother, more intimate and refined presentation—ideal when tonal richness and nuance take priority.

Ultralinear Mode — 35W + 35W RMS
Provides additional power, dynamics, and control for a more energetic presentation and greater flexibility with a wide range of loudspeakers.

The new Jazz 70 features Bluetooth that includes the Qualcomm QCC5125 chipset together with an ESS ES9018K2M DAC, allowing music to be streamed directly from compatible smartphones, tablets, and other devices. Supported formats include LDAC, aptX HD, aptX LL, aptX, AAC, MP3, and SBC, giving listeners extensive options for high-quality wireless playback.

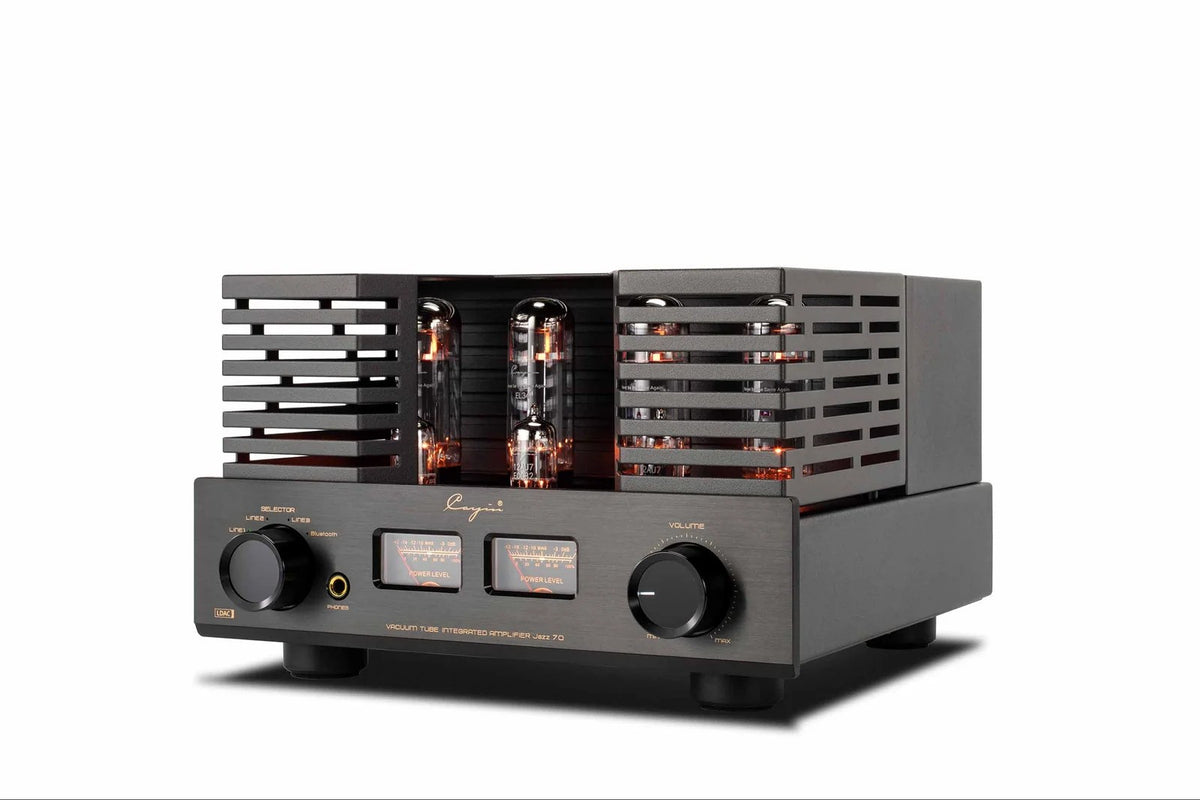

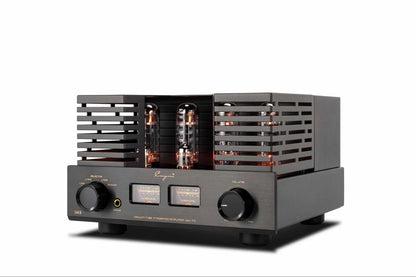

The new JAZZ 70 features hand made construction with fine point-to-point wiring. A removable metallic tube protection cage is included for added safety while maintaining the amplifier's classic appearance. A headphone output and supplied remote control add further versatility.



Specifications:

Power Output Triode: 17W + 17W RMS; Ultralinear: 35W + 35W RMS
Frequency Response 8Hz–60kHz (-3dB)
THD 0.2% at 1W/1kHz; <5% at rated output
Signal-to-Noise Ratio 100dB, A-weighted
Input Sensitivity 380mV
Input Impedance 100kΩ
Tube Complement 12AU7 × 3; EL34 × 4
Headphone Impedance 16Ω–300Ω
Inputs LINE 1, LINE 2, LINE 3, Bluetooth
Speaker Outputs 4Ω, 8Ω
Bluetooth Version 5.1
Bluetooth Chip Qualcomm QCC5125
DAC ESS ES9018K2M
Bluetooth Range ≤10m
Dimensions 300 × 338 × 190mm
Net Weight 15.6kg
Maximum Power Consumption 240W
