Description

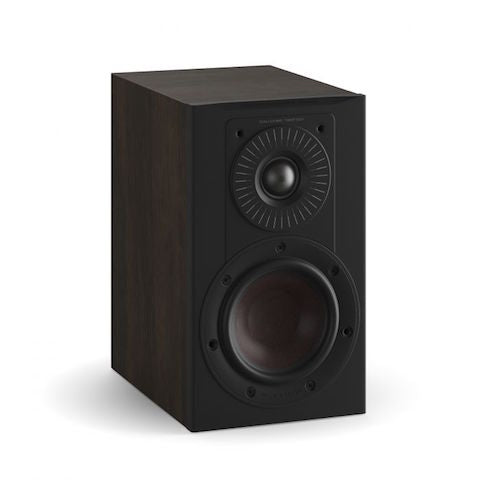

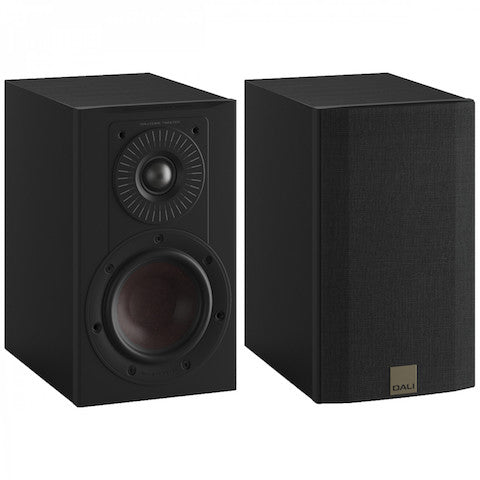

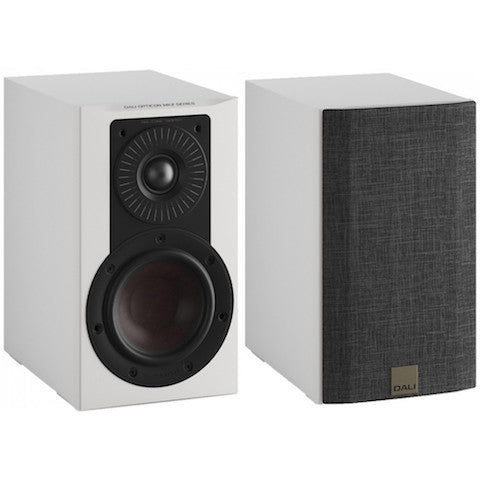

The OPTICON 1 MK2 is a two-way compact performer holding a 4¾" wood fibre woofer matched with a new large 29 mm soft dome tweeter derived from the CALLISTO series. The stand mount speaker is a natural distributor of high performance audio in compact to medium sized listening spaces where it has room to breathe and deliver its dynamic and explicitly defined performance.
Specifications:
| OPTICON MK2 | |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 62 - 26,500 |
| Sensitivity (2,83 V/1 m) [dB] | 86.0 |
| Nominal Impedance [ohms] | 4 |
| Maximum SPL [dB] | 105 |
| Recommended Amplifier Power [W] | 25 - 100 |
| Crossover Frequency [Hz] | 2,000 |
| Crossover Principle | 2-way |
| High frequency driver, Quantity | 1 x 29 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Midrange driver, Quantity | 1 x 4 3/4" |
| Midrange driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 61.5 |

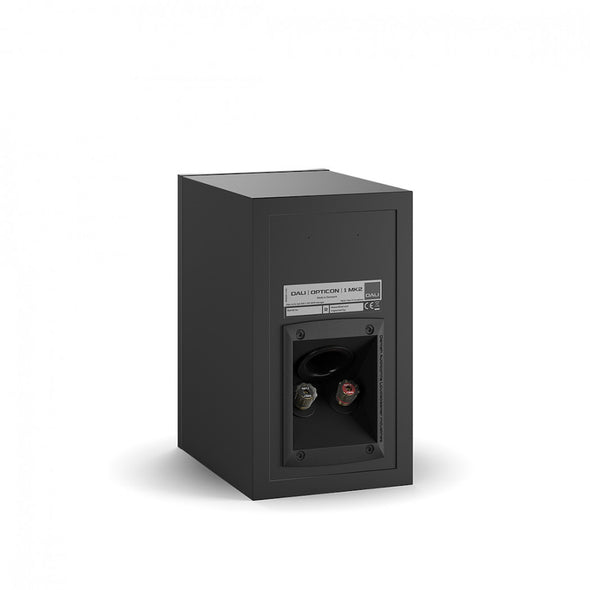

| Connection Input | Single Wire |
| Magnetic Shielding | No |
| Recommended Placement | On-Wall Shelf or stand |
| Recommended Distance From Wall [cm] | 2 - 80 |
| Dimensions With Base (HxWxD) [mm] | 261 x 152 x 231 |
| Accessories Included | Manual Rubber Bumpers Wall Bracket |
| Weight [kg] | 4.5 |
