Dynavector

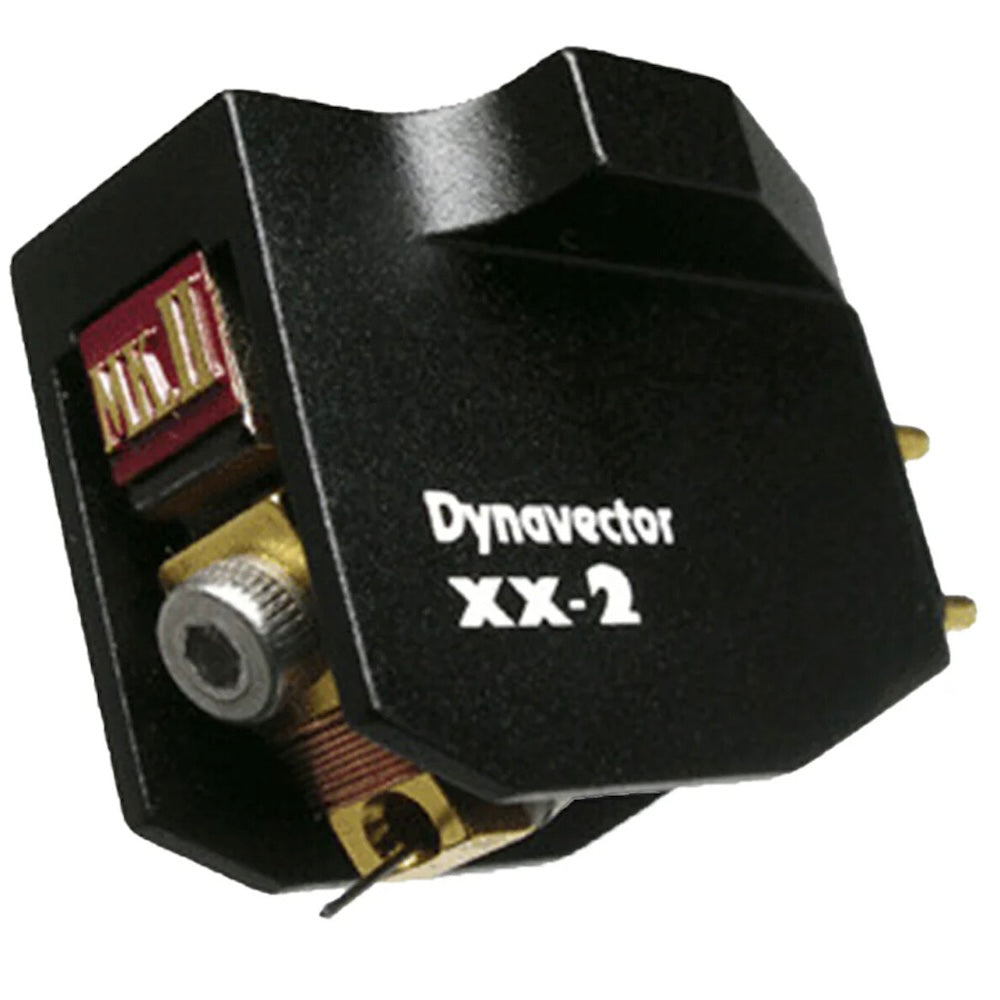

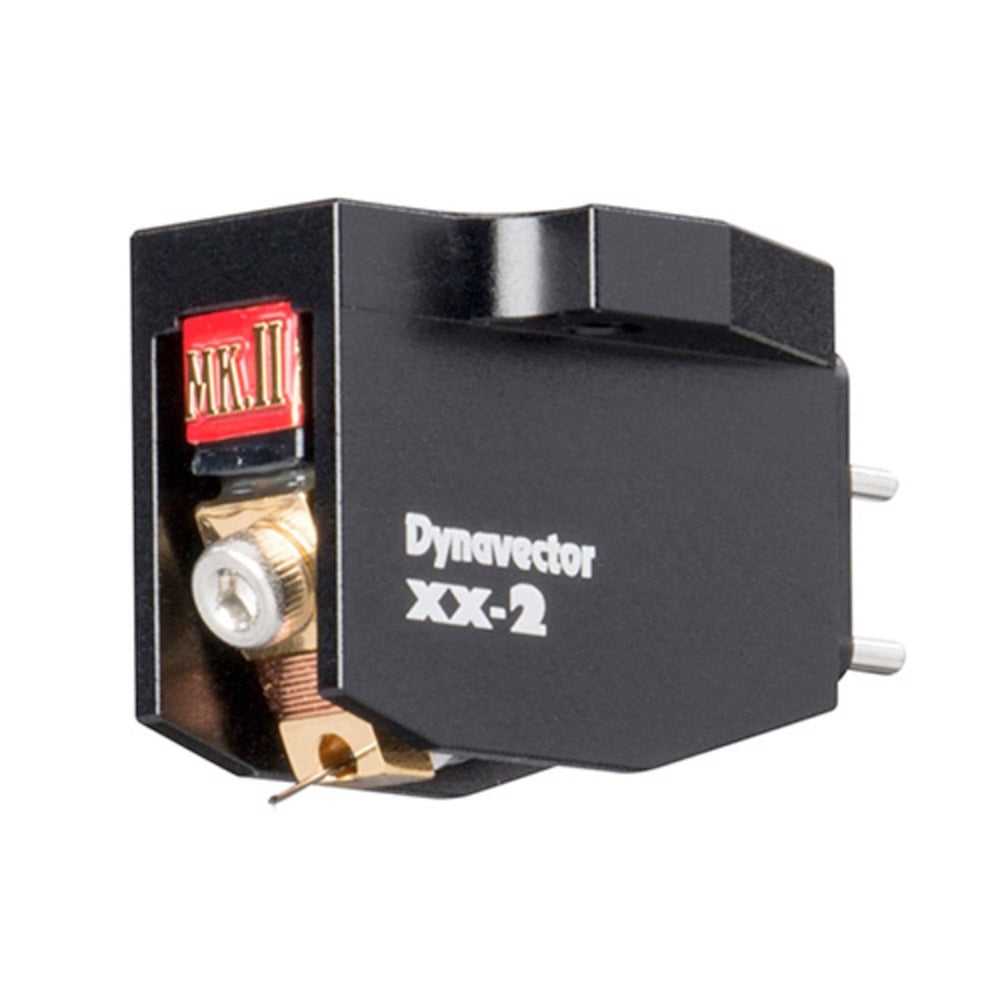

Dynavector DV Xx2 MkII Phono Cartridge

Dynavector DV Xx2 MkII Phono Cartridge

Usually Ships Within 2 Days.

Regular price $2,300.00
Regular price Sale price $2,300.00
Sale Featured Sold out
Free Express Shipping In Canada

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

Dynavector's DV XX-2 MKII exhibits deep powerful bass, treble is both clear and lively possessing none of the hardness found in many moving coil designs. This cartridge also features a 6 mm solid boron cantilever fitted with a Pathfinder Line contact stylus. PCOCC (pure copper ohno continuous casting process) copper wire is used for the coil. The output voltage of 0.28mV is higher than that of the XX-2 and 6 ohms impedance are suited to most moving coil phono stages.

The DV XX-2 MKII retains the benefit of the flux damper but features the Alnico-5 magnet and the similar rigid construction to the Te Kaitora Rua. Alnico magnets exhibit high magnetic flux density combining with a low coercive therefore magnetic resistance is lower than other magnetic types such as rare earth and ferrite, providing the exceptional stability of the XX-2 MKII output voltage. There is also the additional advantage of low magnetic and electrical resistance contributing to a discernable improvement in sound quality. For ridgity of construction the XX-2 MKII cartridge body is machined from 7075 aluminium the hardest available. However, having only a total weight of only 8.9 grams it is suitable for a variety of popular tonearms.

Specifications:

  • Type: Low output moving coil cartridge with Alnico magnet and Flux damper
  • Output Voltage: 0.28mV (at 1KHz, 5cm/sec.)
  • Channel Separation : 30 dB (at 1KHz)
  • Channel Balance: 1.0 dB (at 1KHz)
  • Frequency Response: 20 - 20,000Hz (± 1dB)
  • Compliance: 10 mm/N
  • Tracking Force: 1.8 - 2.2 g
  • Impedance: 6 ohms
  • Recommended Load Impedance: > 30 ohms
  • Cantilever: 6mm length 0.3 mm dia. solid boron
  • Stylus Tip: PF Line contact shape, stylus radius: 7 x 30 micron
  • Weight: 8.9 g
