Description

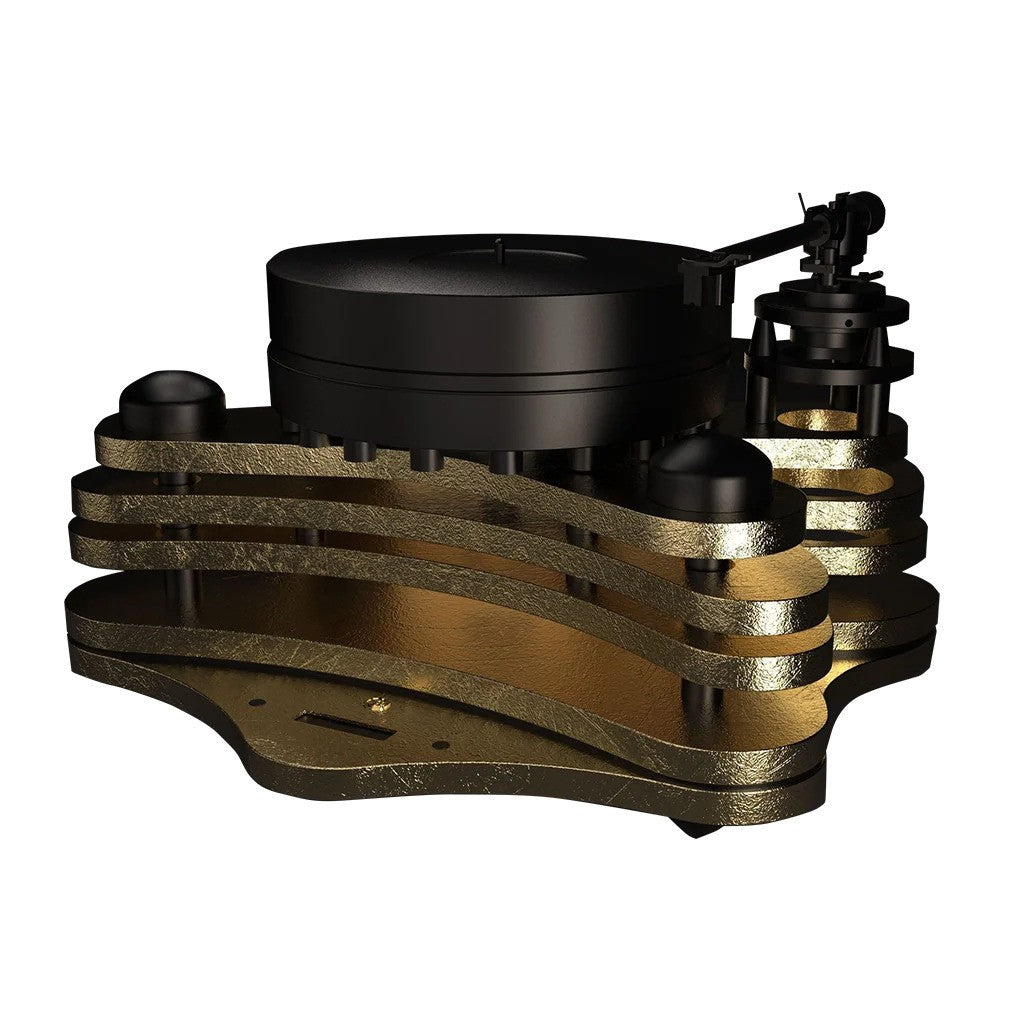

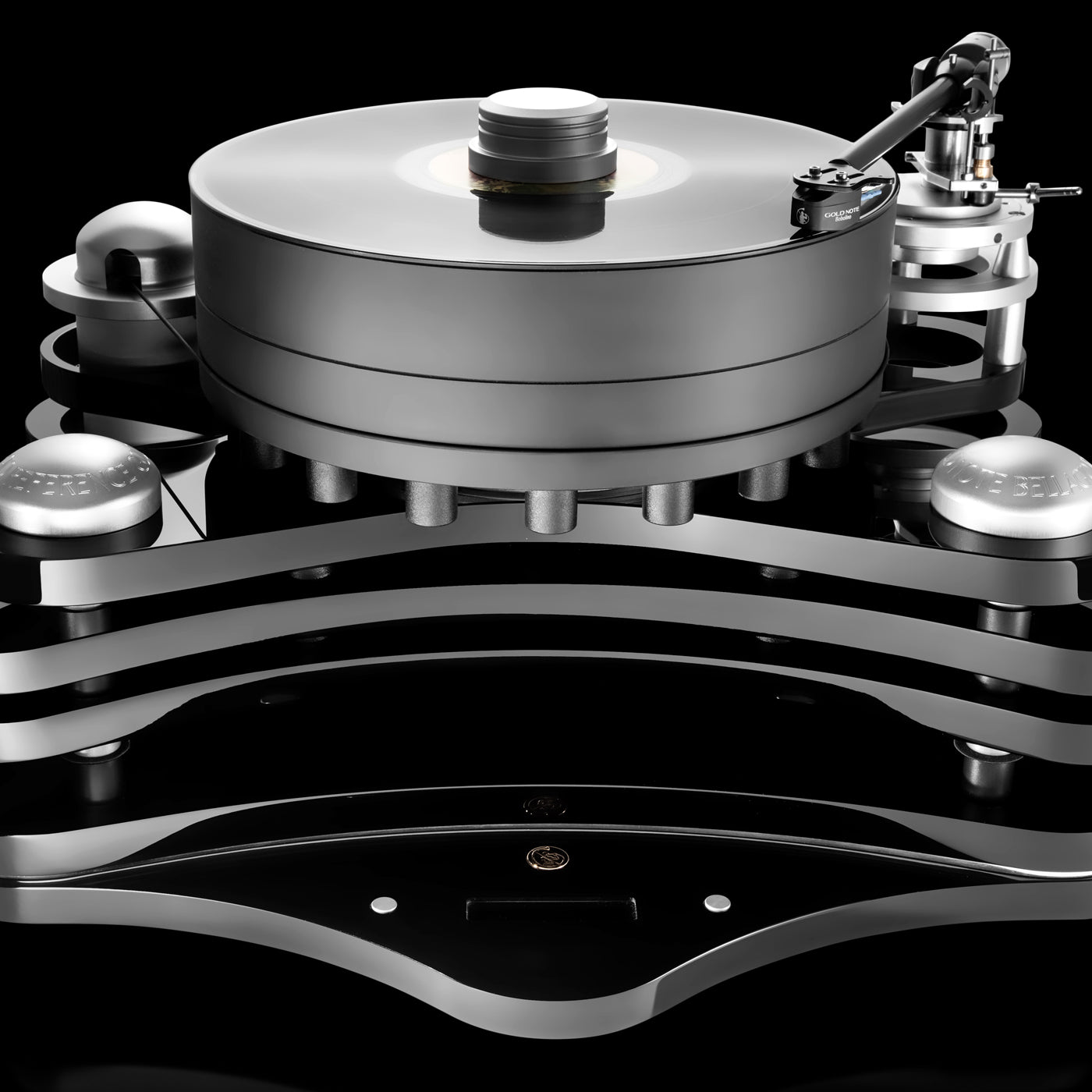

The Gold Note Bellagio Reference Turntable features five plinths and a more compact shape. Reference combines elegant Italian statement design with exceptional sonic High-End audio performance: the black lacquered curved plinths house a high-quality platter bearing in carbon steel which permits the perfect working fluidity for the turntable.
The Bellagio Reference combines an elegant Italian statement design with exceptional High-End audio performance. The black polished acrylic curved plinths house a high- quality rectified carbon steel platter spindle/bearing and massive ultra-dampened platter which permits perfect working fluidity allowing the purest extraction of every single note from the vinyl groove.
The Bellagio Reference features five different curved plinths directly deriving from the Bellagio Conquest to achieve great stiffness and and allow superb resonance feedback control: plinths are interfaced with aluminium spacers of different thickness joined together with custom machined solid blocks of aluminium and extra-large feet. For Bellagio Reference we chose one of the best platter bearing/spindle ever made, entirely built in carbon steel, hardened, rectified and polished to guarantee the best working fluidity. Polished bronze is used for the bearing housing, engineered to get a 1/100 millimeter matching tolerance with the spindle.
To power our best turntable series we implemented the best proprietary technology based on a PWM – Pulse Width Modulator design: PWM transforms AC-DC-AC power coupling the motor coils in the best way to reduce motor resistance and vibrations while guaranteeing the highest torque. The new anti-resonating dampened hourglass shaped motor pulley stops the transmission of any vibration. It’s precisely machined and then polished to achieve perfectly smooth surfaces in order to guarantee low rotational noise and great performance.
The Bellagio Series features an optional remote handset to let you always be in control of all functions: ON/OFF, speed change, speed control and power control.
Specifications:
| WOW & FLUTTER: |
0,05% |
|---|---|
| RUMBLE |
-83dB |
| SPEED |
33-1/3 and 45 rpm +/-0,1% |
| SPEED CHANGING |
electronic with fine pitch control |
| TRANSMISSION |
70 shores elasticity rectified black EPDM Deluxe belt |
| MOTOR |
12 Volt High Torque synchronous externally powered |
| PLATTER |
Sustarin® 110mm height |
| PLATTER SPINDLE |
Split-Spindle™ clamping the platter and bronze rectified bearing housing |
| PLATTER BEARING |
Tungsten 5mm ball bearing |
| POWER SUPPLY |
100V-240V, 50 or 60Hz (depending on market destination not convertible) |
| POWER CONSUMPTION |
20Watt |
| DIMENSIONS |
530mm W 350mm H 500mm D |
| WEIGHT |
30kg |
| FINISHES |
Suspended Plinth: Triple Black Polished Acrylic |
