Gold Note

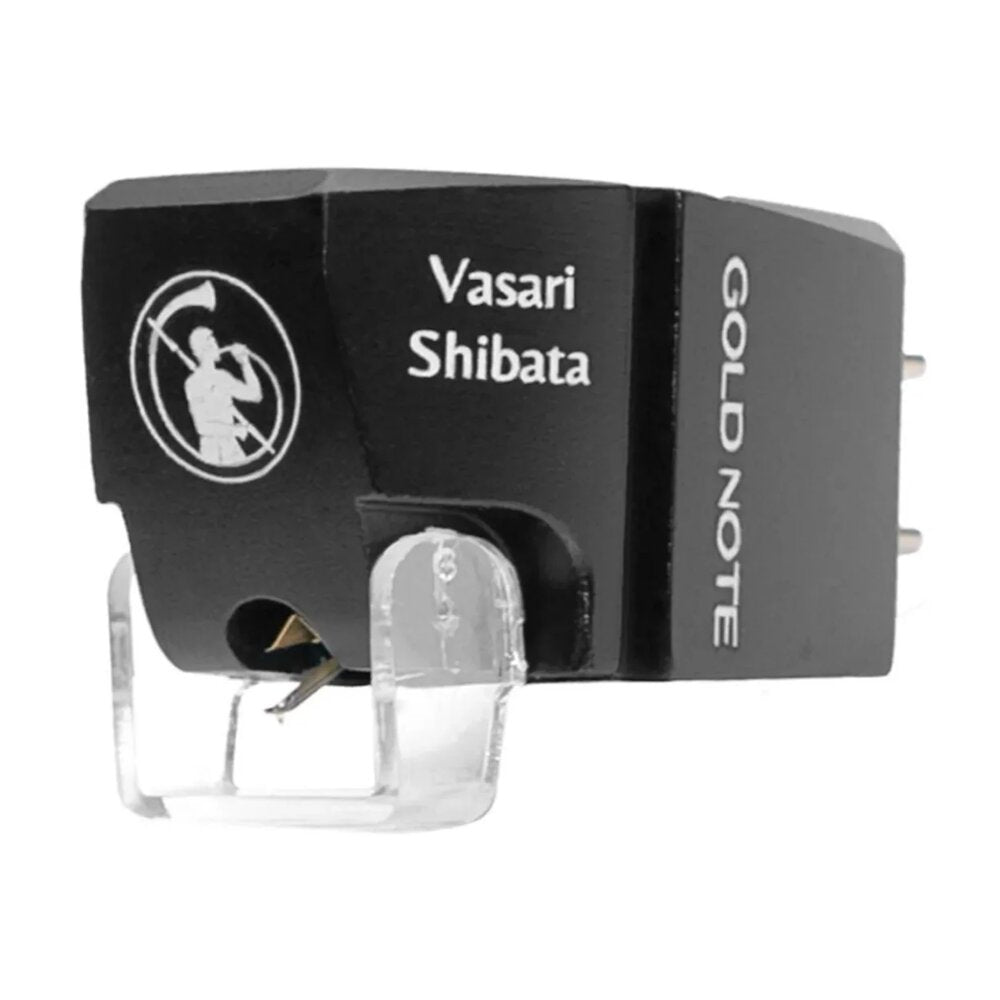

Gold Note Vasari Shibata MM Cartridge
Gold Note Vasari Shibata MM Cartridge
Usually Ships Within 2-3 Days.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description

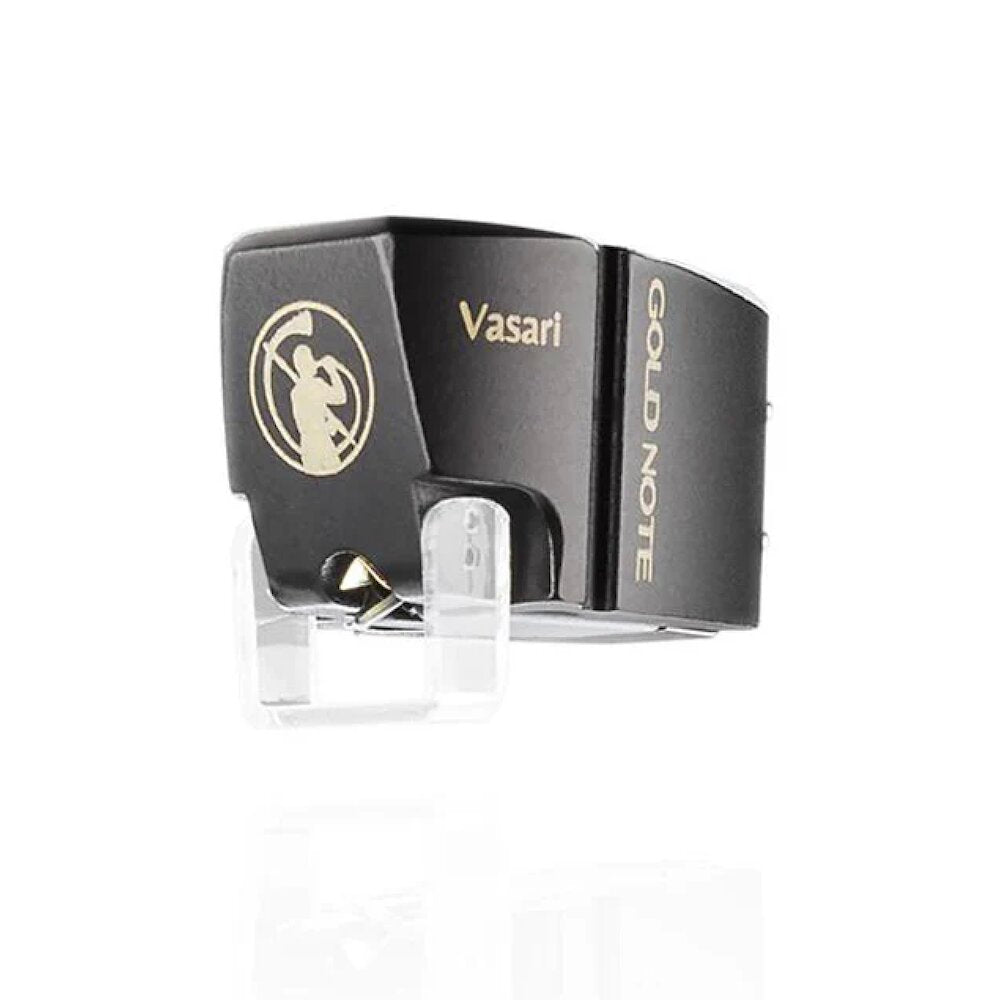

Gold Note's Vasari cartridge has a high-damping body, made of a single machined piece of aluminium 7000 alloys, and its ultra-rigid and light aluminium cantilever, make the Vasari a superb tracker allowing the diamond stylus to extract all the information from the vinyl groove. The new Vasari Shibata, thanks to the peculiar shape of its stylus designed by Mr Shibata in the 70s – basically an evolution of the elliptical shape with extra special cuts on one end creating a hybrid asymmetrical shape – allows an incredible increase of surface area contact whilst a significant reduction of total pressure into the vinyl groove. The result is that the Vasari Shibata can produce a nearly perfect playback reaching all areas of the vinyl groove but reducing the wear of both the record and the diamond. The Vasari cartridge is also available in the two original models, the Gold made of a duralumin body and the Red made of a special ultra-damping photopolymer body. Both feature an output level of 4mV.
Specifications:
Vasari Gold SPECIFICATIONS
Typology: MM Phono Cartridge
Output level: 4.0mV
Frequency response: 15-25000Hz
Impedance: 1000Ω
Suggested load: 47kΩ
Inductance: 500mH
Compliance: 10×10-6cm/dyne
Channel separation: > 22dB
Channel balance: < 2db
Suggested tracking weight: 2.0g
Cantilever: Aluminum
Diamond: Elliptical
Diamond size: 7.5*15.5um
Coil Wire: Copper
Magnet: Alnico
Mounting hole diamond distance: 9mm
Weight: 9.5 grams
Body: Duraluminium
Vasari Shibata Specifications:
TYPE MM Phono Cartridge
OUTPUT LEVEL 4mV
FREQUENCY RESPONSE 10-30000Hz
IMPEDANCE 500Ω
INDUCTANCE 500mH
CHANNEL SEPARATION > 25dB
SUGGESTED TRACKING WEIGHT 2g
CANTILEVER Aluminium
SUGGESTED LOAD 47kΩ
COMPLIANCE 10×10-6cm/dyne
DIAMOND Shibata
DIAMOND SIZE 3.5 x 20μm
COIL WIRE Copper
MAGNET Alnico
MOUNTING HOLE DIAMOND DISTANCE 9mm
WEIGHT 9.5g
BODY Duraluminium alloy
