Heed Audio
Heed Audio Abacus S DAC
Heed Audio Abacus S DAC
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience

Description
Heed Audio's Abacus digital to analogue converter is an exquisite tool for the task. The Abacus can interpret this seductive Heed sound from a great variety of digital sources, even if the music is coded in extremely highly detailed PCM or DSD signal. Connecting you to the world of the musician, doing the precise calculations needed for the mutual understanding. Being a gateway between the digital and analogue worlds, the Abacus is not only a computing machine, it is the very source of the analogue sound amplified through your system.
Specifications:

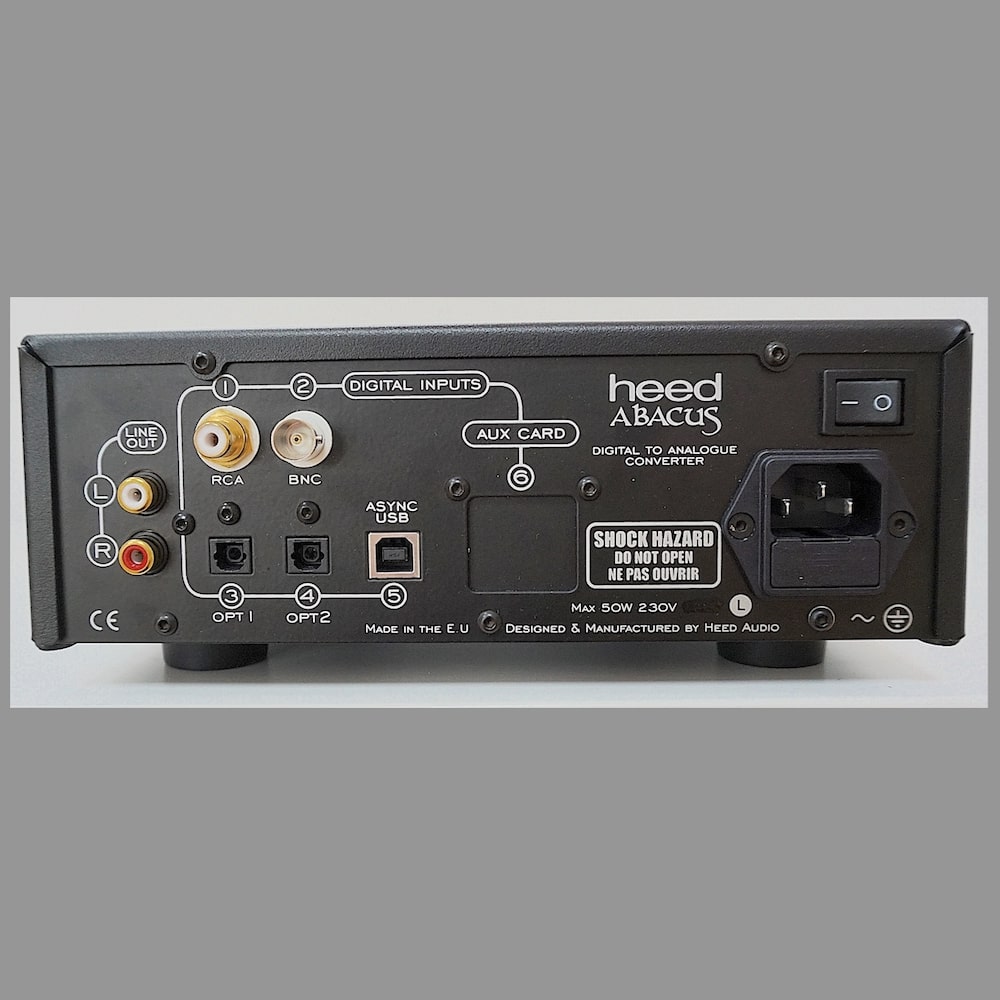

| Inputs: | 1x RCA / 1x BNC / 2x Optical / 1x USB / 1x expansion card |
| Outputs: | 1x line level analogue |
| Output level: | 2.1 Vrms |
| Freq. response: | 3 Hz – (depends on sampling frequency) |
| DSD filter freq.: | 50 kHz standard Scarlet Book |
| Sampling frequencies (BNC, RCA, opt.): | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz max. 24 bit PCM |
| Sampling frequencies (USB): | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz max. 32 bit and 2.8224 / 5.6448 MHz 1 bit native DSD |
| Max. consumption: | 50 VA |
| Weight: | 4.5 kg |
| Dimensions (WxHxD): | 22 x 8.7 x 32.5 cm |
