The µDAC is based on an Accusilicon AS318 femtosecond oscillator with very low phase noise, guaranteeing uncompromising performance. In addition, an I2S port via HDMI allows integration of an external master clock for even greater performance. This flexible system will be particularly appreciated by the most demanding audiophiles.
The Harmony µDAC's Class A output buffer uses discrete components for precise impedance matching, to avoid signal degradation and ensure optimum transfer to an amplifier. The fact that it's in Class A ensures constant linearity and low noise, for the smooth, warm sound performance so highly prized by audiophiles. The µDAC's digital and analog circuits are galvanically isolated to avoid ground loops and guarantee a clean, interference-free path for the sound signal.
Specifications:
| Product type |
DAC R2R |

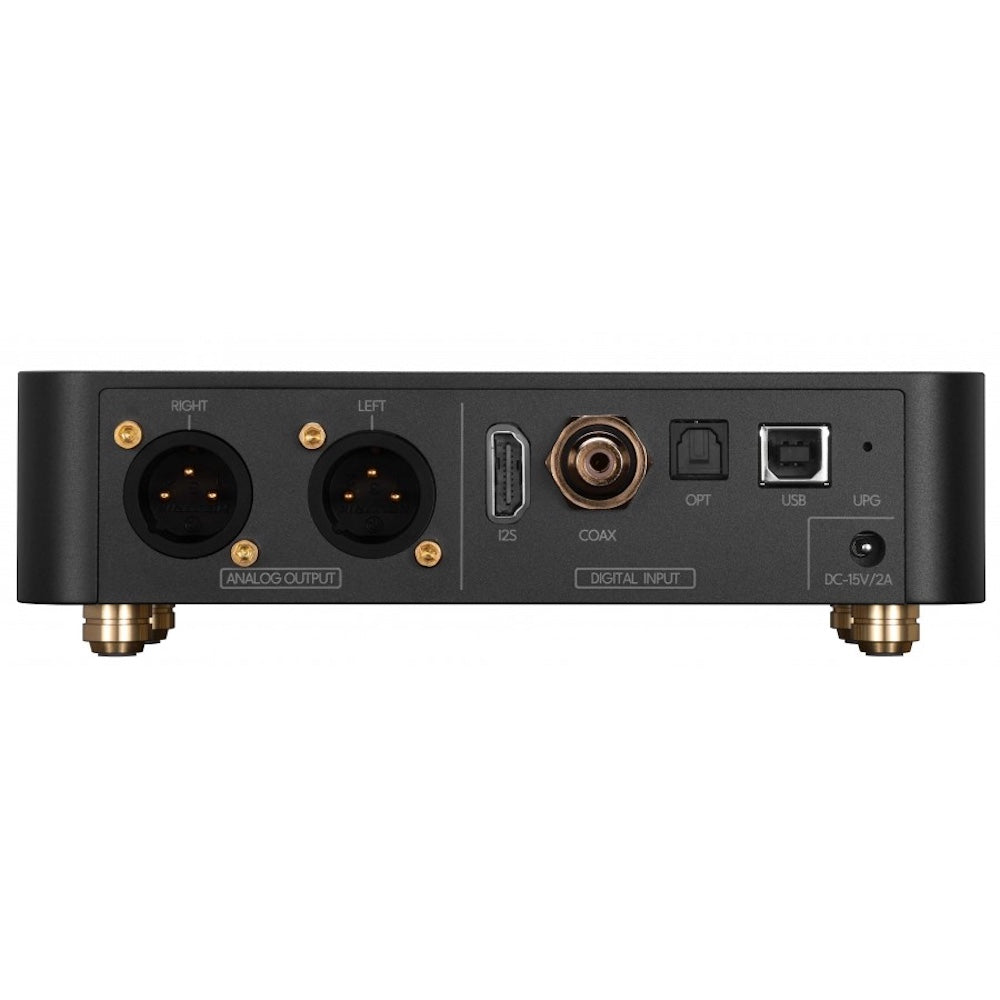

| Inputs |
1x USB-B input
1x Coaxial input
1x Toslink optical input
1x I2S input via HDMI |
| Output |
1x Balanced XLR output |
| Processor |
Altera Cyclone IV |
| Supported sampling rates |
PCM up to 32Bit 768kHz
Native DSD up to DSD256 |
| External clock via I2S HDMI |
|
| GENERAL |
| Power supply |
15V 2A via jack DC |
| Package |
1x LAIV Harmony µDAC
1x Power adapter |
