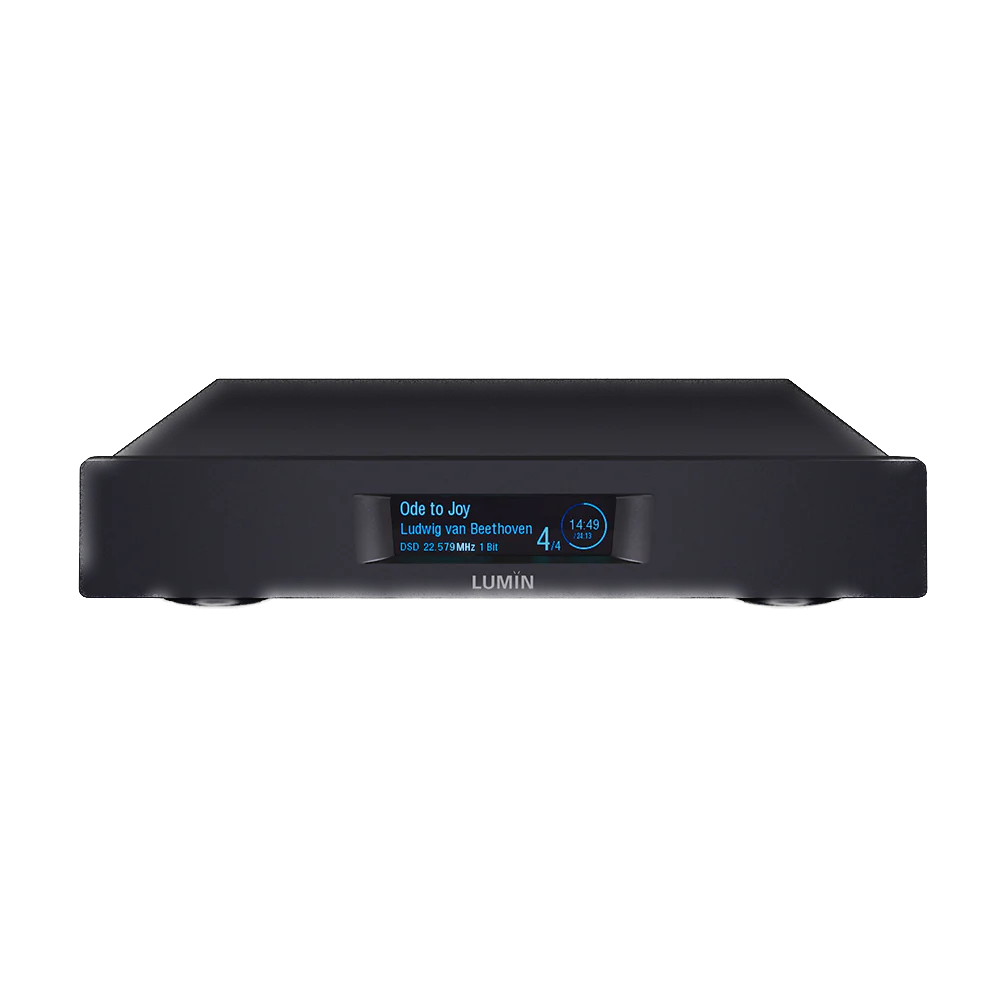

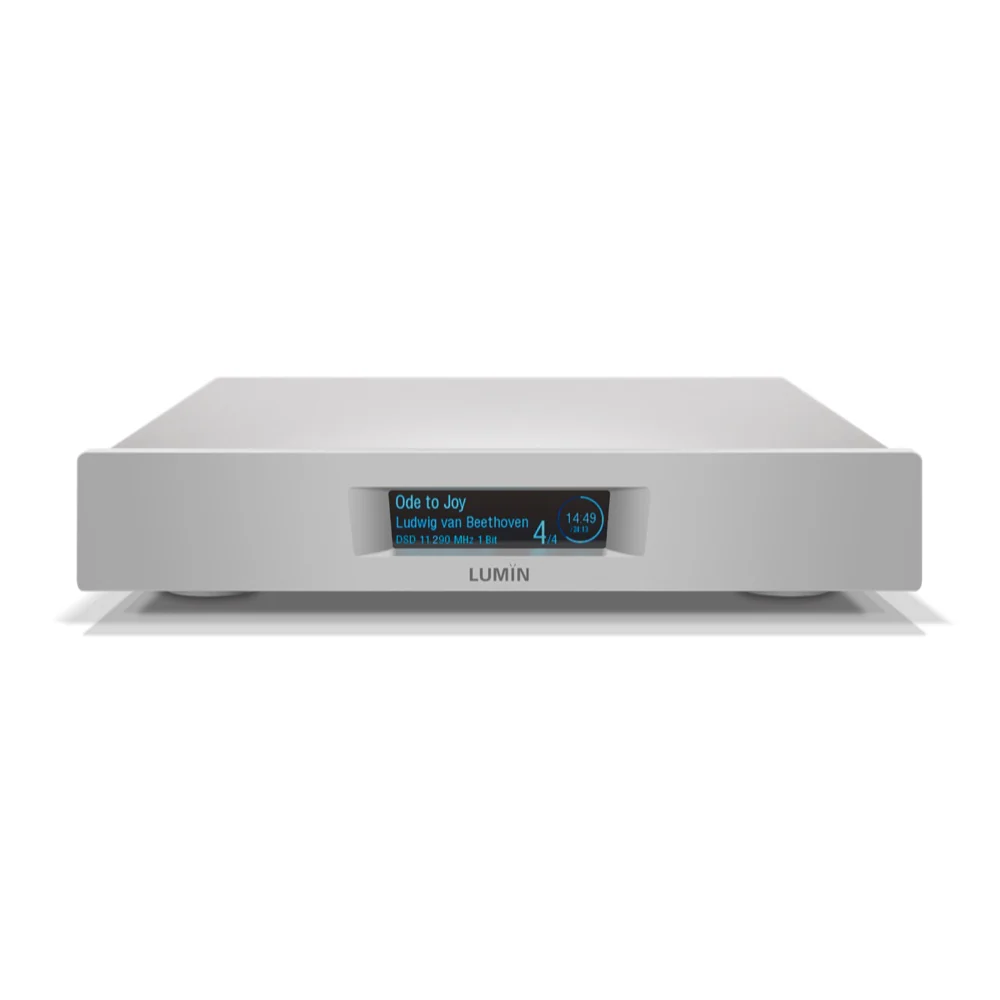

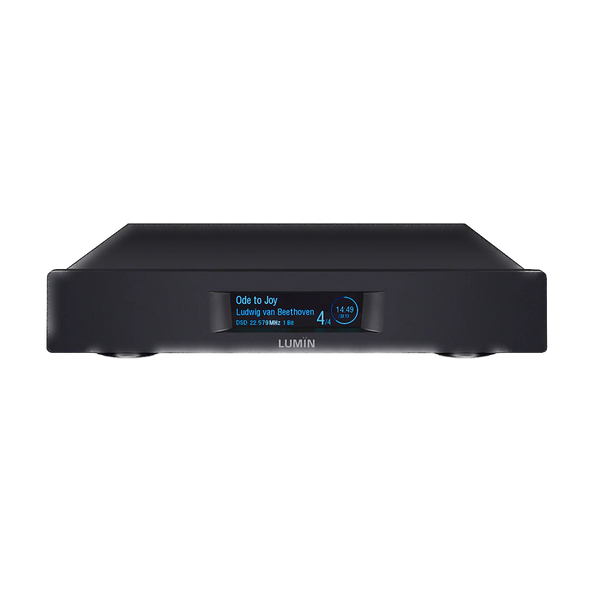

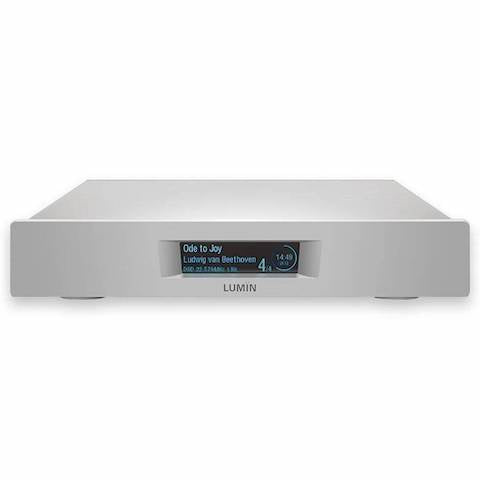

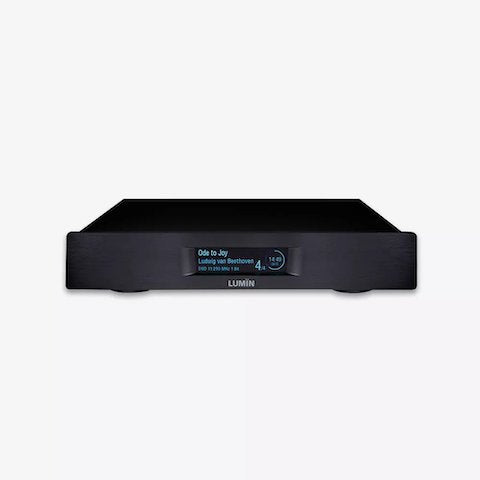

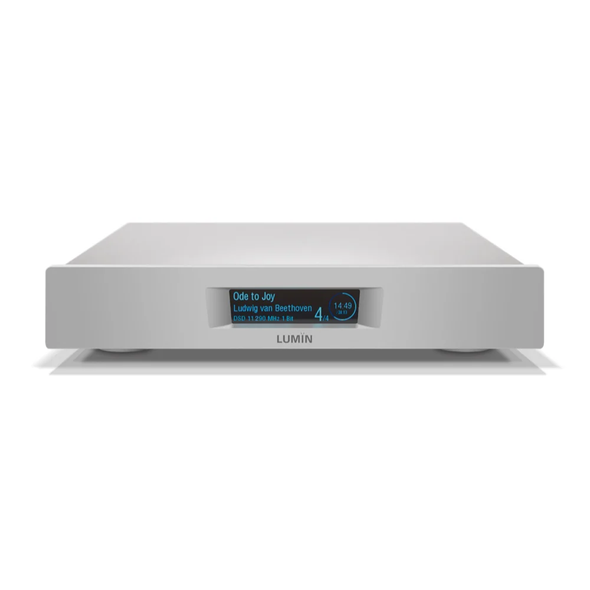

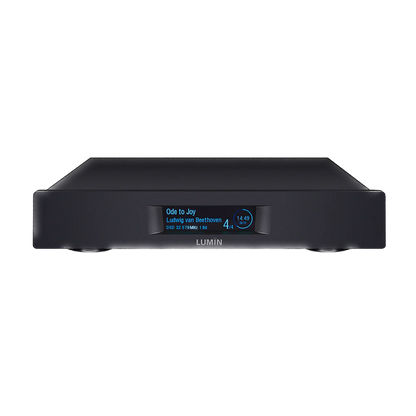

Lumin D3 Music Streamer

Description

The new LUMIN D3 music streamer inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminum compact chassis.

The latest LUMIN processor technology provides DSD256 upsampling and TIDAL Connect bringing audiophile-grade performance within your reach.

The new D3 retains fully balanced design & XLR outputs. New processor & Sabre DAC w/ buffer incl. X1 tech. DSD256/PCM384 up/down-sampling. TIDAL Connect, Airplay 2 & more, INCLUDING PLEX*.  Completely new hardware & software. Increased power & storage capacity. All-new processing system. Full aluminum enclosure, CNC front panel for superior damping. Improves on D2 chassis by eliminating steel.

*Plex is a popular music management service that combines a user's own video, audio, and photos with online streaming services. Controlling apps are available for mobile devices, smart TVs, streaming boxes, web browsers and more.

There are free and subscription-based options.

LUMIN + Plex

LUMIN is the first (and only) high-end audio system that can discover and connect to Plex. No network configuration is required and delivery is bit-perfect.

With the recent launch of Plexamp, Plex have created a music-only platform which is graphically rich and internet-enabled to include Music Recommendations, Artwork & Tag Database, Lyrics, Radio Stations, and more! It also means that LUMIN can be controlled on a wide range of devices, from Linux computers and Smart TVs to web browsers and Raspberry Pi.

SPECIFICATIONS:

• DSD SUPPORT:

  • Up to DSD256, 1-bit, Stereo

• PCM SUPPORT:

  • Up to 384kHz, 16–32-bit, Stereo

• ANALOG OUTPUT STAGE:

  • ESS SABRE³² ES9028Pro DAC chip
  • Balanced layout with high-quality components
  • The completely redesigned analog buffer includes an audio grade output capacitor and ultra-low-noise and high dynamic range.
  • Discreet clock system for precision timing

• UPSAMPLING RATES & BIT DEPTHS:

  • DSD256 upsampling option for all files
  • PCM 384kHz upsampling option for all files

• DIGITAL OUTPUT STAGE:

  • BNC SPDIF:
    • PCM 44.1kHz–192kHz, 16–24-bit
    • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

• POWER SUPPLY:

  • Internal 100–240V AC auto-ranging
  • Low-noise
  • Shielded power supply compartment for reduced interference with delicate electronics


• STREAMING PROTOCOL:

  • UPnP AV protocol with audio streaming extension (OpenHome)
  • Roon Ready
  • TIDAL Connect
  • Spotify Connect
  • AirPlay 2 compatible
  • Gapless Playback
  • On-Device Playlist

• APP FEATURES:

  • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
  • Tidal MQA icons to identify high-res music
  • Qobuz high-res icons to identify high-res music
  • Volume control
  • High-resolution artwork
  • Artwork caching
  • Search
  • Multiple tag handling
  • Composer tag support
  • Album-grouping in playlist
  • Automatic internet links to artists/album/songs
  • Saving and restoring of playlists (including Tidal and Qobuz)

• SUPPORTED AUDIO FILE FORMATS:

  • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
  • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
  • Compressed (lossy) Audio: MP3
  • MQA

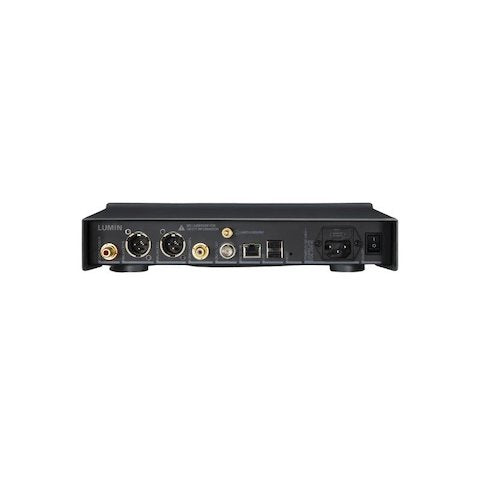

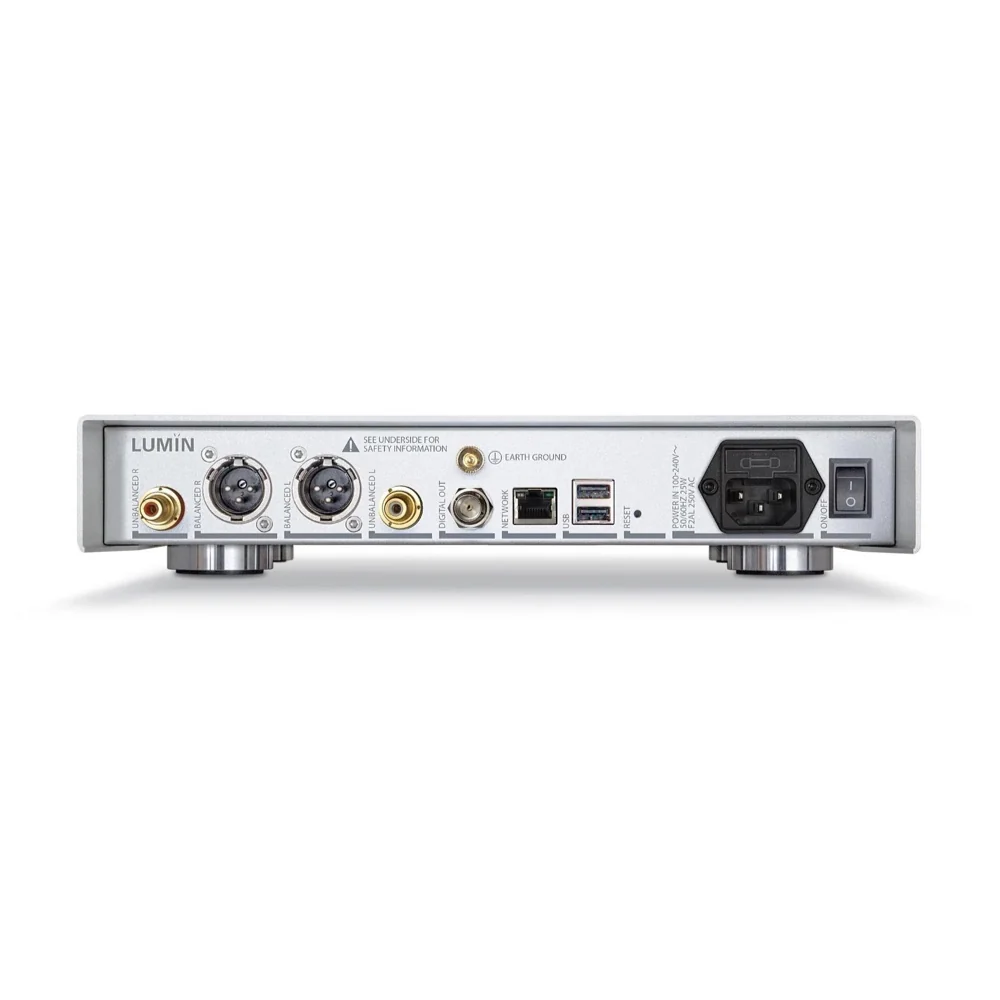

• INPUT:

  • Ethernet RJ45 network 1000Base-T
  • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

• ANALOGUE AUDIO OUTPUTS:

  • XLR balanced, 6Vrms, pin 2 Hot
  • RCA unbalanced, 3Vrms

• SUPPORTED CONTROL DEVICES:

  • Apple devices. iOS 11.0 or later
  • Android devices. Android 4.0 (Ice Cream Sandwich) or later required
  • Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
  • Chromebook. Google Play Store required.

• OTHER:

  • Leedh Processing lossless digital volume control
  • Programme of Continuous Development – Firmware-upgradable for further features and enhancements
