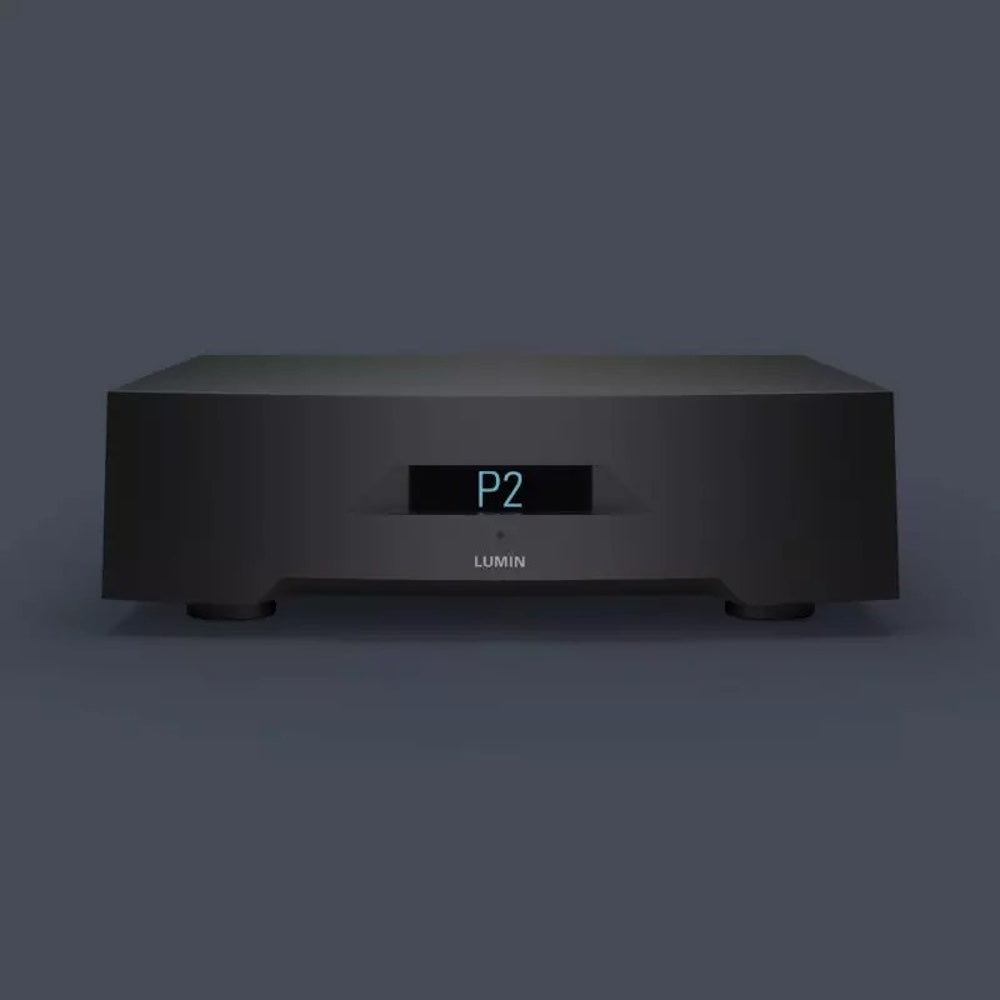

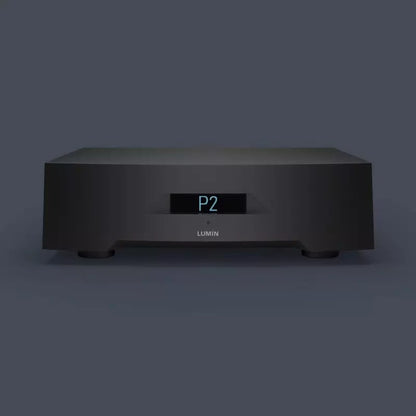

Lumin P2 Streamer Dac Preamp

Description

The new LUMIN P2 represents the pinnacle of network audio hub design, combining reference level performance, unmatched connectivity, and future-proof features in one elegant component. It invites audiophiles to experience music as never before: pure, powerful, and profoundly engaging.

The LUMIN P2 digital architecture is a direct derivative of the prestigious X-series, meaning the engineers have utilized the very best the industry currently offers. At the heart of the device beat two ES9038PRO SABRE DAC chips. But it’s not just about the silicon—it’s about the implementation. In the P2, these chips are configured in a dual-mono mode. This means each channel has its own dedicated, independent signal processing path. The result? Channel separation that pushes the boundaries of physics and a drastic reduction in noise floor. When listening to complex orchestral recordings, the P2 doesn’t just create a sonic image; it creates a holographic space where every instrument has its own precisely defined location and the "air" to breathe.

Modern audiophile sources demand immense processing headroom. The LUMIN P2 is equipped with a new generation of processors that allow for ultra-precise upsampling and real-time processing without any latency or distortion. The device handles Native DSD512 and PCM384 with effortless grace. However, raw power means nothing without master timing. This is why the P2 utilizes a Femto Clock system managed by an advanced FPGA (Field-Programmable Gate Array). This combination ensures that every digital bit is placed exactly where it belongs, reducing "jitter" to negligible levels. In audiophile terms, this means high frequencies lose their digital "glare" and become crystal clear, natural, and fluid.

Many digital players fail at the final step—the analogue output stage. The LUMIN P2 leaves nothing to chance here. The output section is graced by legendary Lundahl output transformers. These transformers are the key to what we call "musicality." They provide complete galvanic isolation and protect signal integrity from any external interference.
Providing stable and pure energy is a dual-toroidal linear power supply. Rather than a single transformer handling everything, the P2 features separate power rails for the digital and analogue sections. This prevents the high-frequency noise of the processor from leaking into the sensitive analogue outputs. When the music stops, a profound, "ink-black" silence reigns—the perfect canvas upon which every subtle detail, like the pluck of a string or the decay of a hall, can shine in full glory.

One of the most innovative features brought over from the flagship series is Fibre Networking. Standard copper network connections are often a source of electromagnetic interference (EMI) that can negatively affect sound. The LUMIN P2 allows you to use an optical connection, which completely isolates your audio system from the digital noise inherent in home networks. This is the "final touch" that separates great hi-fi from true high-end audio.

Features:

• 9 digital and analogue inputs for full system integration
• Native DSD512 & PCM384 playback
• Dual ESS ES9038PRO DACs in true dual-mono configuration
• Dual-toroidal linear power supply
• Femto clock system with FPGA distribution
• Fibre networking for complete isolation from network noise
• Leedh Processing lossless volume control
• HDMI 2.0 with ARC support and 4K passthrough

Specifications:

NETWORK PLAYBACK:

Up to DSD512

Up to 384kHz, 16–32-bit, Stereo

MQA Full Decoding

DIGITAL INPUT:

USB:

USB Audio Class 2 Compatible

WINDOWS 10 (Release 1703 or above) /

Mac OSX or above

DoP128 support

PCM 44.1–384kHz, 16 / 32-bit, Stereo

AES/OPTICAL/SPDIF:

PCM 44.1kHz–192kHz, 16–24-bit

DSD64 (DoP64, DSD over PCM)

HDMI x3:

PCM 2.0 Audio support

4K Video Passthrough

DIGITAL OUTPUT:

USB:

Native DSD512 support

PCM 44.1–384kHz, 16–32-bit, Stereo

BNC SPDIF:

PCM 44.1kHz–192kHz, 16–24-bit

DSD64 (DoP64, DSD over PCM)

HDMI x1:

PCM 2.0 Audio support

4K Video Passthrough

ARC (Audio Return Channel) support

UPSAMPLING RATES & BIT DEPTHS:

DSD256 upsampling option for all files

PCM 384kHz upsampling option for all

files

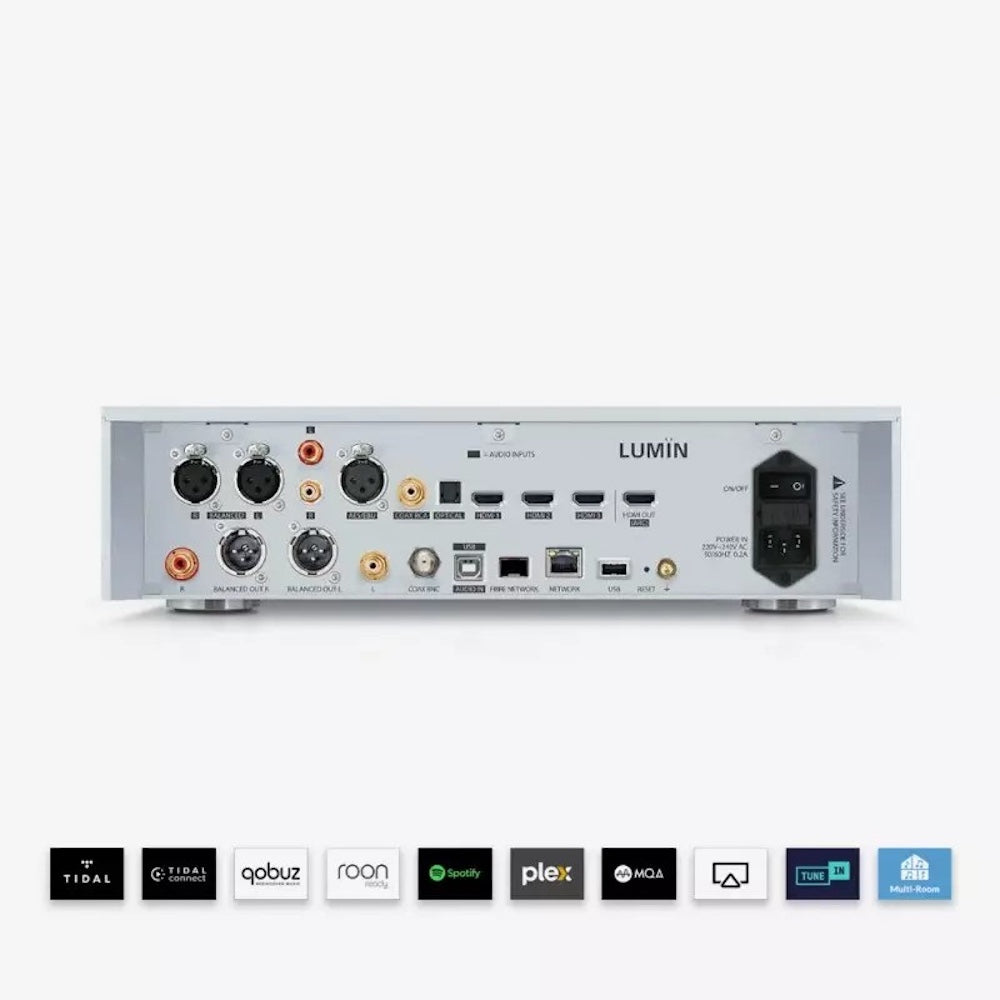

ANALOGUE INPUT:

RCA Unbalanced x1

XLR Balanced x1

ANALOGUE OUTPUT:

Dual ESS SABRE32 ES9038Pro DAC chips

Fully balanced layout with high-quality

components

Output connectors coupled with dual

LUNDAHL LL7401 output transformers

Femto Clock System with precision FPGA

distribution

XLR balanced, 6Vrms, pin 2 Hot

RCA unbalanced, 3Vrms

OPTICAL NETWORK:

Industry-standard SFP

1000Base-T Gigabit Ethernet

Adapter may be needed for your particular

switch/cables

Use simultaneously with RJ45 (e.g. connect

one to router and one to LUMIN L2 or NAS)

OTHER INPUTS:

RJ45 1000Base-T Gigabit Ethernet

Shared USB port can also be used for storage,

flash drive, USB hard disk (Single-partition

FAT32, exFAT and NTFS only)

POWER SUPPLY:

Internal dual-toroidal

Separate digital & analogue circuitry

Low-noise linear regulator

STREAMING PROTOCOL:

UPnP AV protocol with audio streaming

extension (OpenHome). Roon Ready. Plex.

Plāys with Audirvāna. Spotify Connect. TIDAL

Connect. Qobuz. FLAC Lossless Radio. TuneIn

Radio. AirPlay 2. QPlay-compatible for

QQMusic. Gapless Playback. On-Device

Playlist. Multi-Room (Songcast)

APP FEATURES:

Native support for TIDAL, MQA, Qobuz,

Amazon Music, KKBox and TuneIn Radio. Tidal

MQA icons to identify high-res music. Qobuz

high-res icons to identify high-res music.

Volume control. High-resolution artwork.

Artwork caching. Search. Multiple tag handling.

Composer tag support. Album-grouping in

playlist. Automatic internet links to

artists/album/songs. Saving and restoring of

playlists (including Tidal and Qobuz)

SUPPORTED AUDIO FILE FORMATS:

DSF (DSD), DFF (DSD), DoP (DSD)

FLAC, Apple Lossless (ALAC), WAV, AIFF

MQA, MP3, AAC (in M4A container)

SUPPORTED CONTROL DEVICES:

Apple devices. iOS 11.0 or later

Android devices. Android 4.0 (Ice Cream

Sandwich) or later required

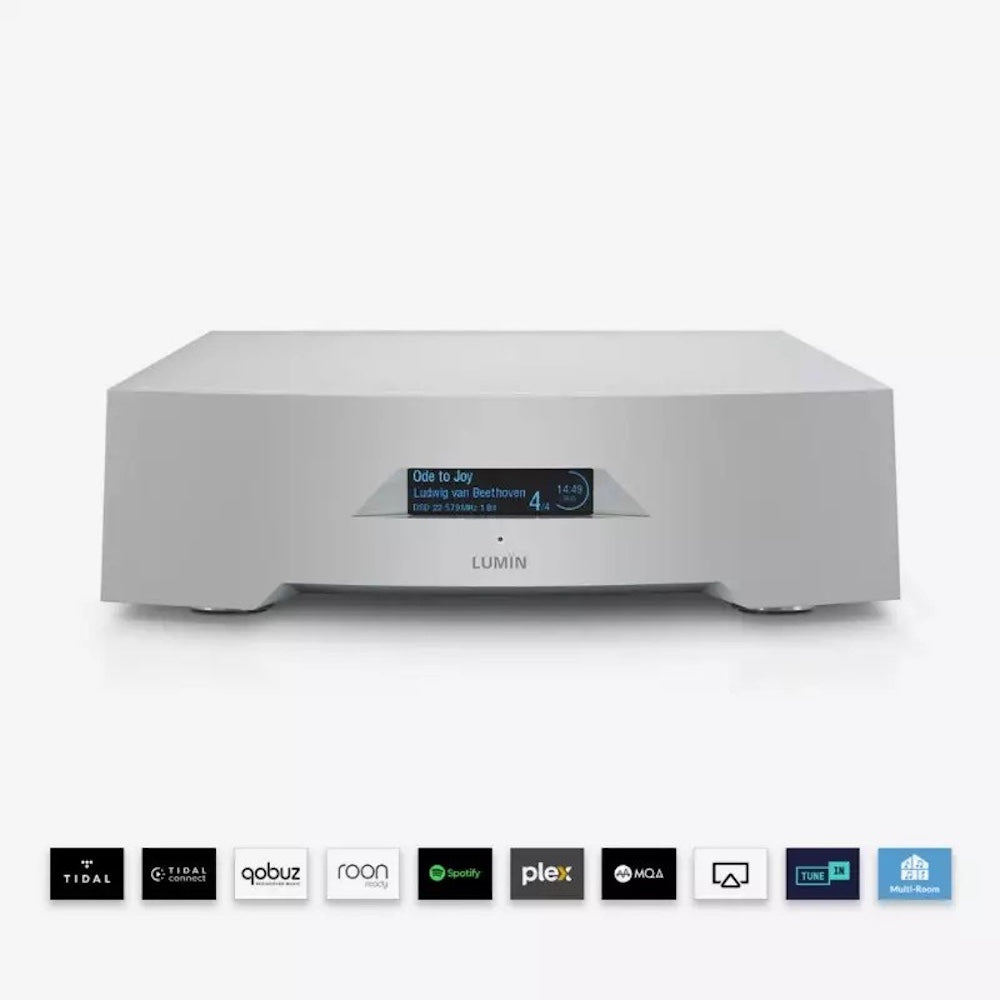

FINISH:

Silver or Black anodised aluminium

OTHER:

LUMIN Infrared remote control included

Leedh Processing lossless digital volume

control

MQA QRONO d2a filters available for all PCM

music (excluding via AirPlay)

Compatible with LUMIN Infrared Control

Package

Programme of Continuous Development –

Firmware-upgradable for further features and

enhancements
