Lumin X1 Streamer Dac Preamp

Name: Lumin X1 Streamer Dac Preamp
Brand: Lumin Music
SKU: 650754621456
Price: 18,750.00 CAD
Availability: InStock

Lumin Music

$18,750.00

Free Shipping In Canada

Color

Quantity

NOW INCLUDES LEEDH PROCESSING

An innovative new digital volume adjustment algorithm that eliminates rounding errors is now available on all LUMIN players.

Lossless volume control for all LUMIN players. Please see the Lumin website for detailed information.

LUMIN users now have the OPTION to use (at no additional cost) Leedh Processing Volume Control instead of the default processing algorithm.

An innovative new digital volume adjustment algorithm that eliminates rounding errors.
Modifies the digital signal amplitude exactly, without any changes to its shape and free from any kind of information loss.
Uses more efficient whole number volume values to maintain audio information integrity during subsequent DAC conversion.
Low processing power requirements free up cpu resources.
Removes need for a pre-amplifier in more systems.
Improves the quality of the signal into LUMIN Amp.

LUMIN X1 makes improvements in every possible location:

New processor delivers native DSD512 & PCM768 playback
Dual Mono design throughout maximises channel separation
Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
Femto Clock System with precision FPGA distribution
New Output Buffer design
Dual Mono dual stage linear regulator
Optical Network provides complete isolation from network digital noise
USB Digital Audio Output supports Native DSD512

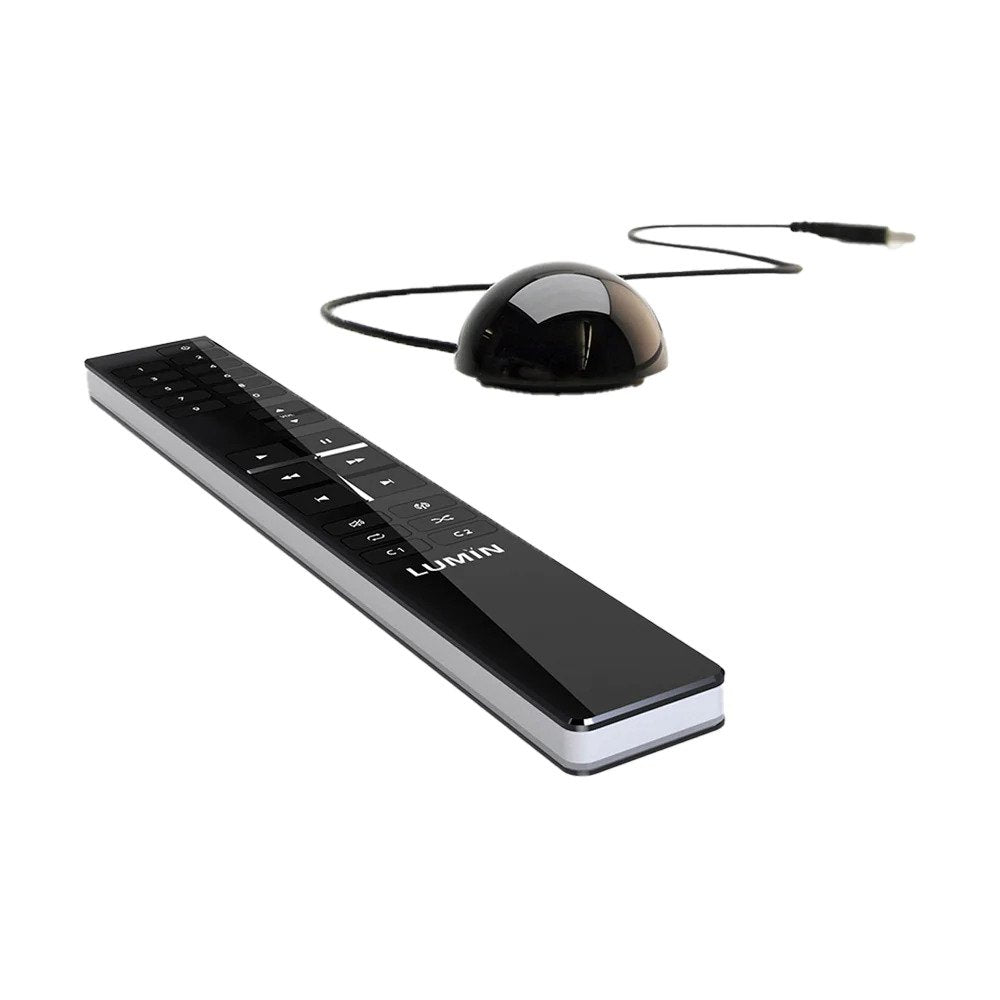

Please Note: The Lumin remote requires a free USB port.

Entirely new Power Supply:

New solid billet CNC casing design
Separate digital & analogue circuitry
Low-noise linear regulator
New output connector

X1 SPECIFICATIONS:


DSD SUPPORT:
Up to DSD512 22.6MHz, 1-bit


PCM SUPPORT:
Up to 768kHz, 16–32-bit, Stereo


ANALOG OUTPUT STAGE:
Dual ESS SABRE32 ES9038Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution


UPSAMPLING RATES & BIT DEPTHS:
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files


DIGITAL OUTPUT STAGE:

USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo


BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit



OPTICAL NETWORK:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)


POWER SUPPLY:
External solid billet cnc dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector


PHYSICAL:

FINISH:
Raw brushed aluminium or black anodised brushed aluminium

LUMIN (SOLID ALUMINIUM CHASSIS):
350mm (W), 345mm (D), 60mm (H), 8kg


PSU (SOLID ALUMINIUM CHASSIS):
106mm (W), 334mm (D), 60mm (H), 4kg

SPECIFICATION FOR LUMIN MUSIC STREAMERS

STREAMING PROTOCOL:
- UPnP AV protocol with audio streaming extension (OpenHome)
- Gapless Playback
- On-Device Playlist
APP FEATURES:
- Native support for TIDAL, MQA, Qobuz, AirPlay and TuneIn Radio.
- Tidal MQA icons to identify high-res music
- Qobuz high-res icons to identify high-res music
- Volume control
- High-resolution artwork
- Artwork caching
- Search
- Multiple tag handling
- Composer tag support
- Album-grouping in playlist
- Automatic internet links to artists/album/songs
- Saving and restoring of playlists (including Tidal and Quobuz)
SUPPORTED AUDIO FILE FORMATS:
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
- Compressed (lossy) Audio: MP3, AAC (in M4A container)

INPUT:
- Optical SFP network 1000Base-T Gigabit
- Ethernet RJ45 network 1000Base-T Gigabit
- USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only)
ANALOGUE AUDIO OUTPUTS:
- XLR balanced, 6Vrms, pin 2 Hot
- RCA unbalanced, 3Vrms
SUPPORTED CONTROL DEVICES:
- All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
- Android devices. Android 4.0 (Ice Cream Sandwich) or later required
OTHER:
- Programme of Continuous Development – Firmware-upgradable for further features and enhancements
