Luxman DA-07X Dac
Luxman DA-07X Dac
Usually ships within 2-3 days.
Couldn't load pickup availability
Lighting fast delivery in Canada
Canadian Warranty
Customer Experience
Description
The new Luxman DA-07X features the cutting-edge digital processing capabilities inherited from our recent flagship SACD/CD players, the D-10X. The DAC mother board uses the same top-of-the-range BD34301EKV DAC chips from the ROHM “MUS-IC” series featured in our D-10X and D-07X players, also in dual mono configuration. Via a proprietary USB input, the unit provides a powerful, high resolution digital signal processing environment, supporting encoding rates up to 768kHz/32 bit for PCM signals and 22.5MHz for DSD data and comprehensive decoder functionality that fully supports advanced MQA encoding.
The analog output section employs fully balanced current/voltage conversion routines that independently process the differential outputs of each DAC chip, operating in dual mono mode, and high-quality, discrete buffer circuitry that also serves as an LPF stage, powerfully driving next-stage components. This combination achieves a wonderfully smooth and richly dynamic sound.

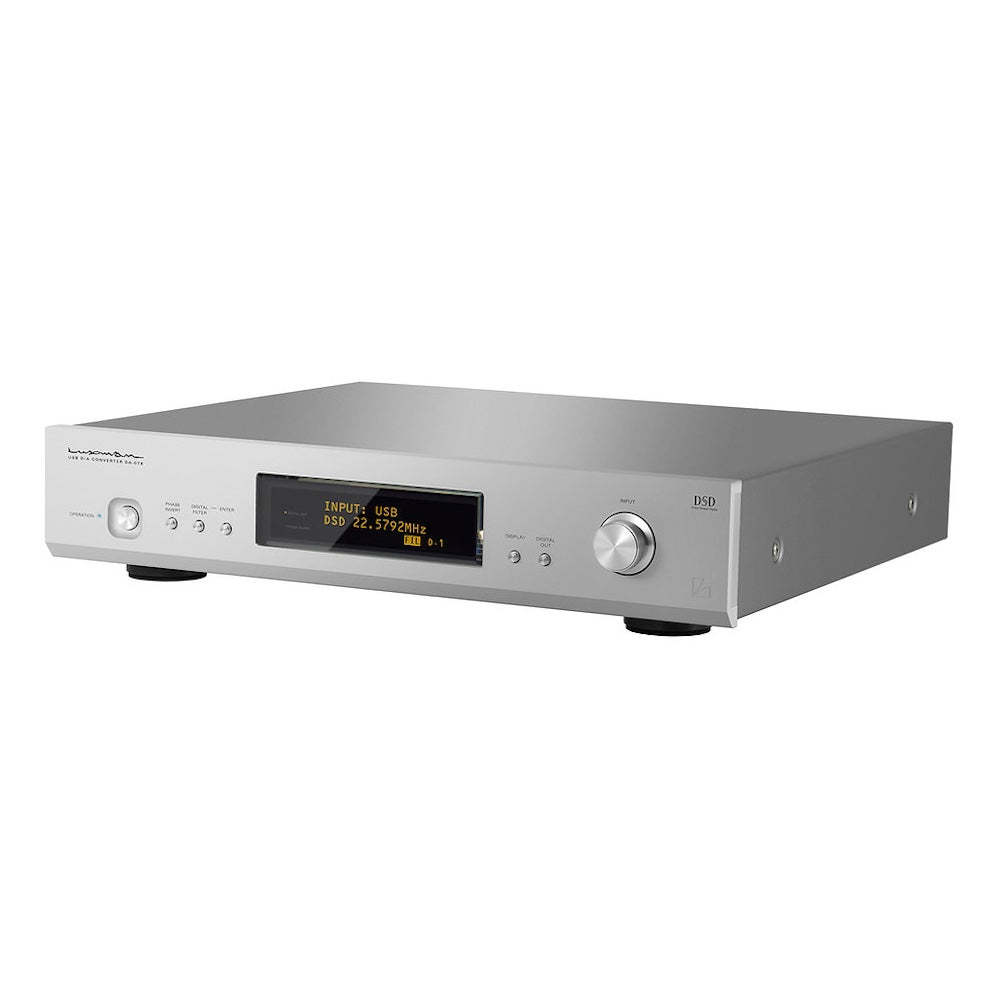

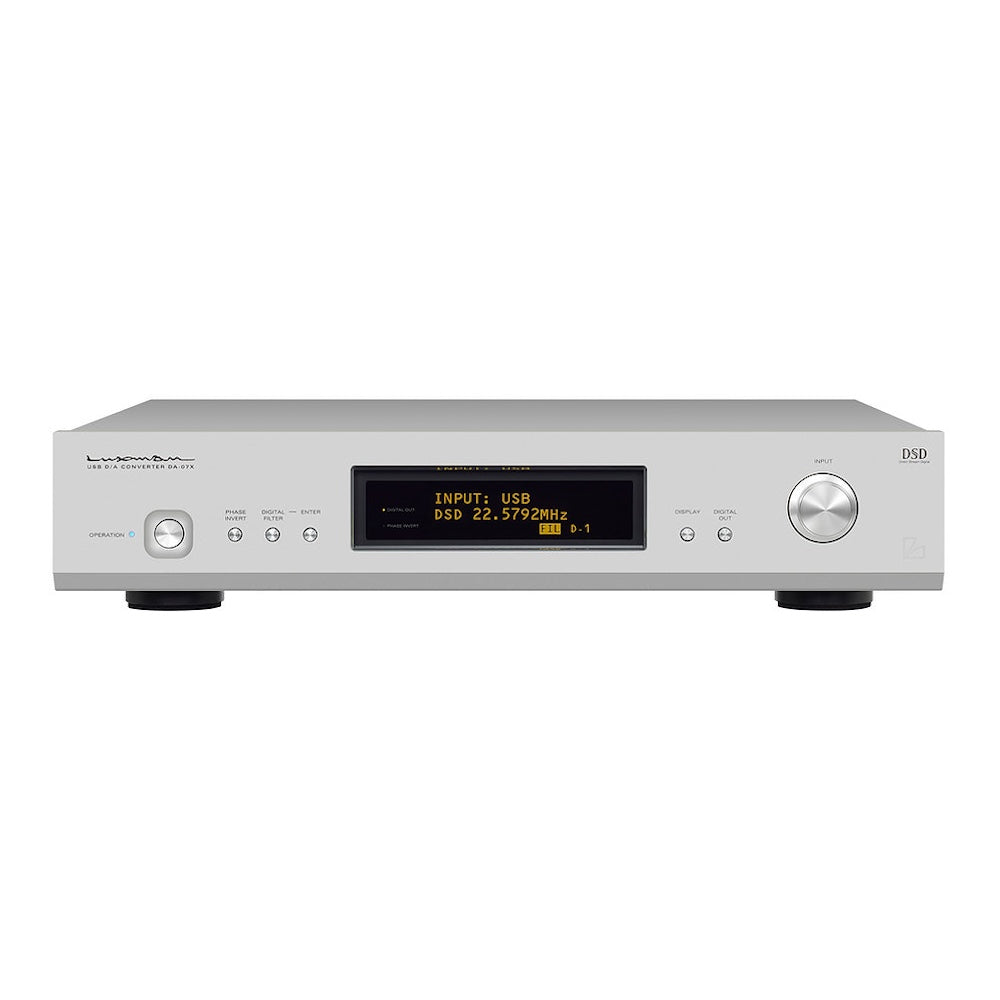

The exterior combines a finely finished, blasted white front panel with a large status window housing a newly adopted, high-definition OLED display, creating a pleasing and precise user interface.
The DA-07X rises to the challenge of being a next generation D/A converter, realizing an inspiring digital audio playback experience. Employing the latest digital processing technology, this model confidently handles a wide range of digital inputs and offers carefully crafted analog output circuitry, casting itself a central role in forward-looking audio systems. It is a perfect match for advanced, modern listening styles, not only as a component in conventional or complex hi-fi set-ups, but also more intimately in combination with a network transport unit, such as our NT-07X, or any other high quality music server.
Please contact us to bundle with the NT-07X. Superb SOTA combination.
Specifications:
Format 2-channel D/A converter
Supported sampling frequencies
USB input (PCM): 44.1kHz, 48kHz, 88.2kHz, 96Hz, 176.4kHz, 192kHz, 352.8Kz, 384kHz,
705.6kHz, 768kHz (16, 24, 32bit)
USB input (DSD): 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (1bit)
COAX, OPT, AES/EBU input: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 20, 24bit)
Digital input USB x 1, COAX x 2, OPT x 2, Balanced (AES/EBU) x 1
Digital output COAX x 1, OPT x 1
Analogue output Output voltage: Unbalanced 2.4V, Balanced 2.4V (DSD format 2.3V)
Total harmonic distortion Unbalanced 0.001%, Balanced 0.001%
S/N ratio 124dB (IHF-A)
DAC IC ROHM BD34301EKV (monaural mode) x 2
Power consumption 21W
