PRE-ORDER. DUE IN MID OCTOBER. Other NEW Dynamo and Abyss products are available to order as well. Please see the individual product pages. Thank you.
Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for additional information or to order. Thank you very much.
The original Dynamo subwoofer is one of Martin Logan's most popular products. This subwoofer is known for its impeccable precision, compact size, and indisputable quality. The Dynamo Series subwoofers continue that legacy but feature modern technologies and innovations. They have incredible features, impressive power and a stylish, room-friendly design. With extensive technology, including built-in wireless signal connection, anti-vibration feet, and easy-to-use app control, Dynamo series subwoofers not only look and sound incredible but are also extremely user-friendly. These subwoofers also come with a built-in Wireless Receiver and Wireless Transmitter, making setup easy and clutter-free. Enjoy top-notch sound with lossless transmission and low latency.
Dynamo’s anti-vibration feet improve bass by reducing floor and wall vibrations, eliminating rattles, and boosting clarity. They also reduce noise transfer to other rooms, perfect for any flooring with both hard surface and carpet options included. Backing up all the technology and features is the heart of the subwoofer, the Vojtko DSP engine. Featuring a 500MHz DSP with 64bit processing, the Vojtko DSP engine commands all aspects of subwoofer performance in real time. Best-in-class computing power controls the advanced technology onboard, as well as the powerful Magnitude® amplification, providing both high tech functionality and audibly transparent processing for incredible, distortion free impact and musicality. The Dynamo Series is designed to work with any speaker system while being uniquely engineered to keep pace with the exotic thin-film technologies utilized in MartinLogan loudspeakers.
Dynamo Subwoofers feature custom-designed aluminum woofers tuned using state-of-the-art Klippel analysis for high output and low distortion. Aluminum's light weight, high strength, and excellent heat dissipation make it ideal for delivering clean, powerful bass in a compact design. Meticulously engineered for reliability, Dynamo subwoofers offer versatile performance to meet your musical and powerful bass needs.
MartinLogan’s proprietary Magnitude® Amplifiers unlock the full potential of custom-engineered Dynamo woofers. Featuring two carefully crafted architectures, the advanced Magnitude® 1kW in the Dynamo 10 delivers up to 1000W Peak (500W RMS) of clean power, ensuring remarkable impact and seamless musicality. Meanwhile, the Magnitude® 1.6kW in the Dynamo 12 offers an impressive 1600W Peak (800W RMS), delivering powerful, deep bass with unparalleled clarity, precision and visceral impact. These ultra-efficient Class-D architectures guarantee exceptional control, providing an immersive audio experience that enhances all your favourite content.
Dynamo subwoofers are compatible with the award-winning Anthem Room Correction system. This highly advanced software measures subwoofer performance in your room and then performs custom equalization, tuning, and calibration to achieve the highest levels of bass impact and accuracy possible for your specific installation. Requires an ARC Calibration Microphone and a PC or Mac computer (sold separately).
Specifications:
Application
Subwoofer
Frequency Response
22–200 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer
12” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
Amplifier
Magnitude® MT-1.6kW Amplifier with 1,600W peak (800W continuous)
Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle

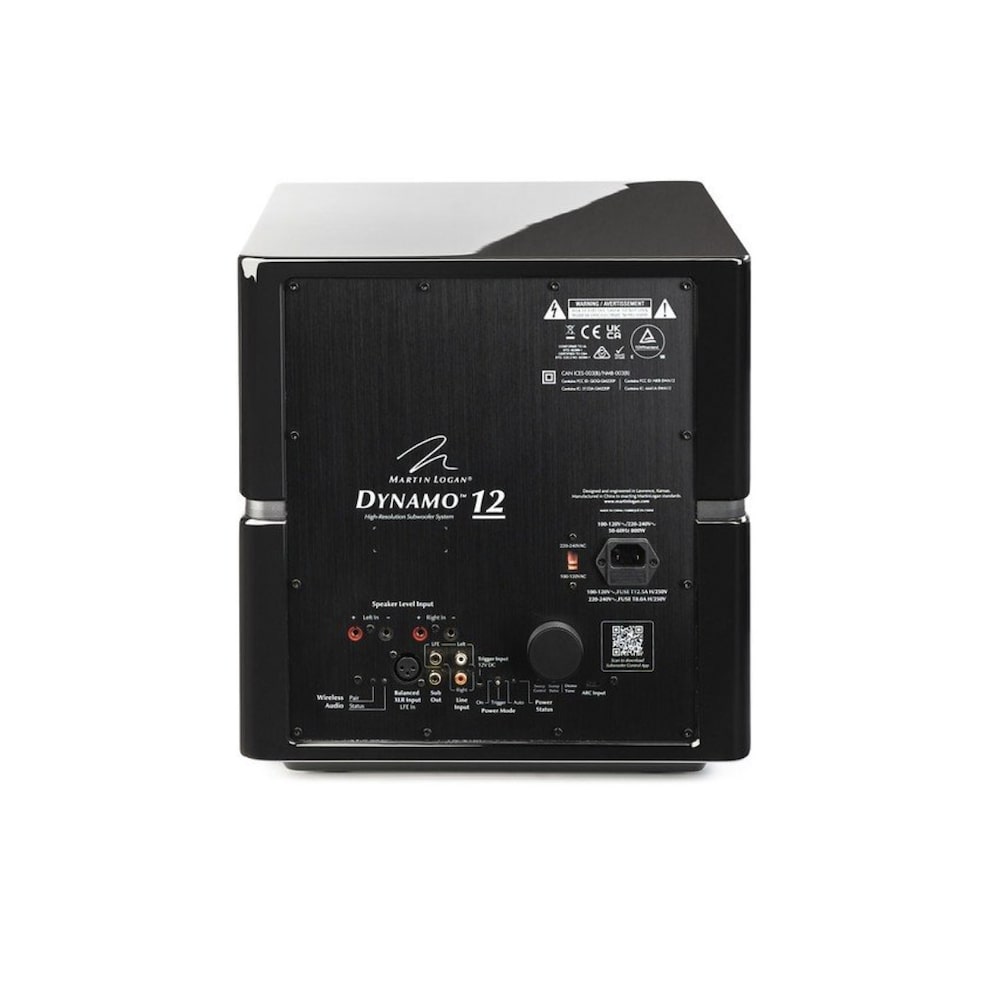

Controls (on backplate)
Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless
transmitter)
Controls (via Bluetooth)
Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Inputs
Line Level: Left, Right, and LFE
XLR: LFE
Speaker Level: Left and Right (requires banana plugs)
Wireless Input
Integrated Wireless Receiver,
Wireless Transmitter Included
Power Draw
Max: 800W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined
Feet
Integrated Anti-Vibration Feet (carpet spikes included)
Weight
61.5 lbs (27.9 kg)
Dimensions (HxWxD)
16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm)
Finish
Gloss Black
